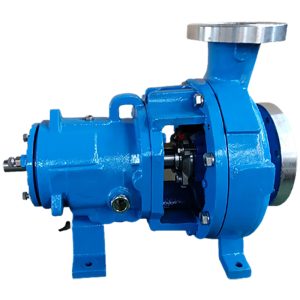

Goulds 3196 ANSI Pump

Outstanding Features

Extended Pump Life

Designed for maximum mean time between failure (MTBF) and lower life cycle cost (LCC). Heavy-duty bearing frames, precision-machined components, and robust castings ensure decades of reliable service in the toughest chemical processing environments.

Ease of Maintenance

Back pull-out design allows the complete rotating assembly to be removed without disturbing the casing, piping, or driver. External impeller adjustment makes it simple to restore original clearances and maintain peak hydraulic efficiency over the life of the pump. Maximum parts interchangeability across frame sizes reduces spares inventory requirements.

Optimum Hydraulic Performance

Fully open impeller with computer-optimized hydraulics delivers high efficiency across a broad operating range. Full 50/60 Hz coverage with 29 sizes available ensures an exact hydraulic match for your specific duty point. Computerized pump selection tools make specification fast and accurate.

Safety & Reliability

ANSI B15.1 compliant coupling guard as standard. Ductile iron frame adapter provides robust support and alignment integrity. Top centerline discharge with self-venting casing and integral mounting feet for stable, worry-free operation. Class 150 pumps feature Class 300 wall thickness for an added margin of safety.

Available Wet-End Materials

• CF8M — 316 Stainless Steel
• CD4MCuN — Duplex Stainless Steel
• CN7M — Alloy 20
• Hastelloy C-276
• Hastelloy B
• Nickel 200
• Titanium Grade 2
• Zirconium 702
• WCB — Carbon Steel

All exotic alloy castings are supplied with full material traceability, mill test reports, and NDE certification upon request. PMI (Positive Material Identification) verification is standard on all Hastelloy, Titanium, and Zirconium wetted components.
