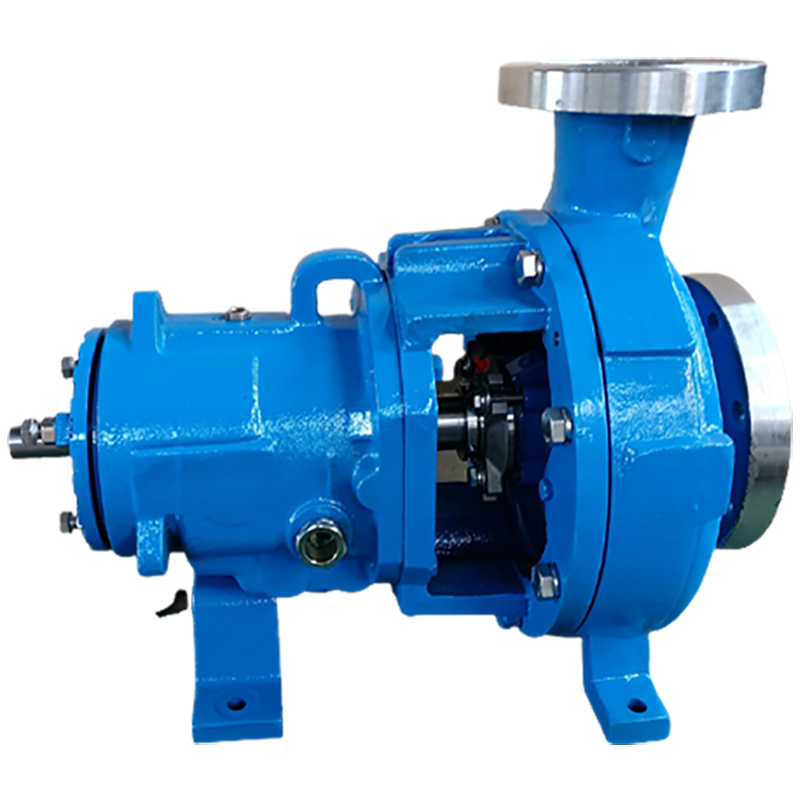

Leading ANSI Chemical Process Equivalent Pump

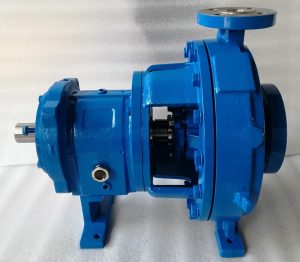

The Mark III chemical process pump is a horizontal, end suction, single level, centerline discharge, centrifugal pump. It is an “ANSI” popular pump, this means that it conforms to the ASME B73.1M ANSI preferred.

1.Application:

• Acid transfer

• Brine

• Chemical processing

• Petrochemical processing

• Corrosive services

• Food and beverage processing

• Hydrocarbon processing

• Pharmaceuticals Polymers

• Pulp and paper

• Seawater

• Slurries

• Solvents

• Steel and primary metals

• Water and wastewater treatment

2.Operating Parameters

• Flows to 1680 m 3 /h

• Heads to 215 m

• Pressures to 27 bar

• Temperatures from -73°C  to 370°C

3. Available Size:6’’-16’’

4.

5.The Mark 3 chemical process pump provides outstanding hydraulic performance, unrivaled reliability and low total cost of ownership. Conforming to ASME(ANSI) B73.1, the Mark 3 incorporates many proven reliability- and performance-enhancing features.

The resultant benefits are:

• Renewable, high-efficiency performance over the life of the pump with the reverse vane impeller

• Optimal, predictable seal chamber pressures that are re-established after every impeller setting

• Maximal mechanical seal life due to an ideal seal

• Robust shaft and bearing designs that minimize shaft deflection and extend mechanical seal and bearing life

• Fast and accurate impeller setting with the industry’s most innovative external impeller adjustment mechanism

• In-shop reverse vane impeller adjustment with the only pump that takes full advantage of the back pull-out design
