Download Resources
Free pump engineering calculation spreadsheets, ANSI B73.1 product brochures, and technical resources for chemical, process, and mechanical engineers. Download centrifugal pump sizing tools, NPSH calculators, and hydraulic system design spreadsheets.
Free Pump Engineering Calculations & Technical Resources
All pump calculation spreadsheets and technical documents are free to download. Simply complete the short form below to access professional-grade pump engineering tools. Our resources include: centrifugal pump head calculators, NPSH (Net Positive Suction Head) spreadsheets, hydraulic system sizing tools, liquid ring vacuum pump selection calculators, slurry pump VFD optimization workbooks, and ANSI B73.1 pump documentation for Goulds 3196 and Durco Mark III compatible process pumps.
ANSI B73.1 Pump Brochures & Technical Documentation
Product brochures, dimensional drawings, material guides, and installation manuals for ANSI process pumps.
G196 Series Brochure
Complete ANSI B73.1 process pump brochure for the G196 series — a 100% interchangeable replacement for the Goulds 3196. Includes dimensional drawings, hydraulic performance curves, material of construction options (CF8M, CD4MCuN, Hastelloy), and detailed interchangeability reference guide.
D Mark III Series Brochure
ANSI B73.1 D Mark III series process pump brochure — a drop-in replacement for the Durco/Flowserve Mark III. Features Gruvlok-style suction cover, reverse vane impeller for axial thrust balancing, external finned bearing housing for superior heat dissipation, and complete parts interchangeability documentation.
Material Selector Guide
Chemical process pump material selection guide covering 200+ industrial chemicals. Compare corrosion resistance of CF8M (316 SS), CD4MCuN (Duplex), CN7M (Alloy 20), Hastelloy B & C, Titanium Grade 2, Nickel, and Zirconium. Essential reference for chemical engineers specifying ANSI pumps in corrosive service.
Pump Performance Curves
ANSI pump hydraulic performance curves for all G196 and D Mark III frame sizes — STX, MTX, LTX, XLTX. Includes Head vs. Capacity (H-Q), efficiency, NPSHr (required NPSH), and brake horsepower (BHP) curves at both 1750 RPM and 3500 RPM operating speeds.
Dimensional Drawings
ANSI B73.1 pump dimensional drawings and general arrangement (GA) drawings for all frame sizes. Includes detailed cross-section views showing impeller, casing, shaft, bearing assembly; nozzle load limits per ANSI/HI standards; baseplate drilling and foundation bolt patterns; and seal chamber dimensions for mechanical seal selection.
Installation & Operation Manual
Comprehensive ANSI pump Installation, Operation & Maintenance (IOM) manual. Covers proper foundation preparation, shaft alignment procedures (dial indicator and laser), startup checklist, bearing lubrication schedule, mechanical seal replacement, preventive maintenance intervals, troubleshooting guide for common pump issues (cavitation, vibration, leakage), and exploded-view spare parts diagrams with bill of materials.
Free Pump Engineering Calculation Spreadsheets (Excel)
Professional Excel calculation tools for centrifugal pump sizing, NPSH calculation, hydraulic system design, vacuum pump selection, and slurry transport engineering. Download, input your parameters, and get instant results.

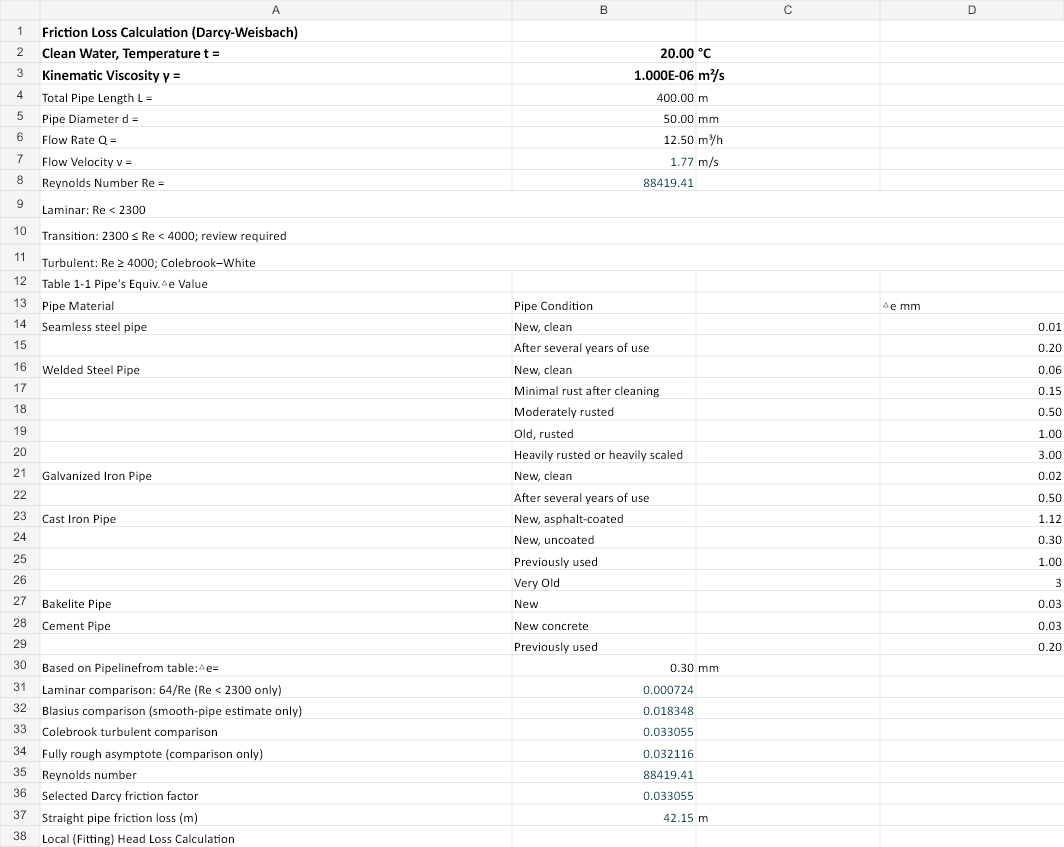

Pump Engineering Calculation Formulas
Comprehensive 10-sheet pump engineering calculation workbook: impeller trimming calculator (Sulzer & standard methods), shaft power and motor sizing, head & efficiency conversion (affinity laws), NPSH cavitation calculation, Darcy-Weisbach friction loss, Reynolds number determination, model pump conversion, and pump efficiency estimation. The all-in-one toolkit for pump design and selection engineers.

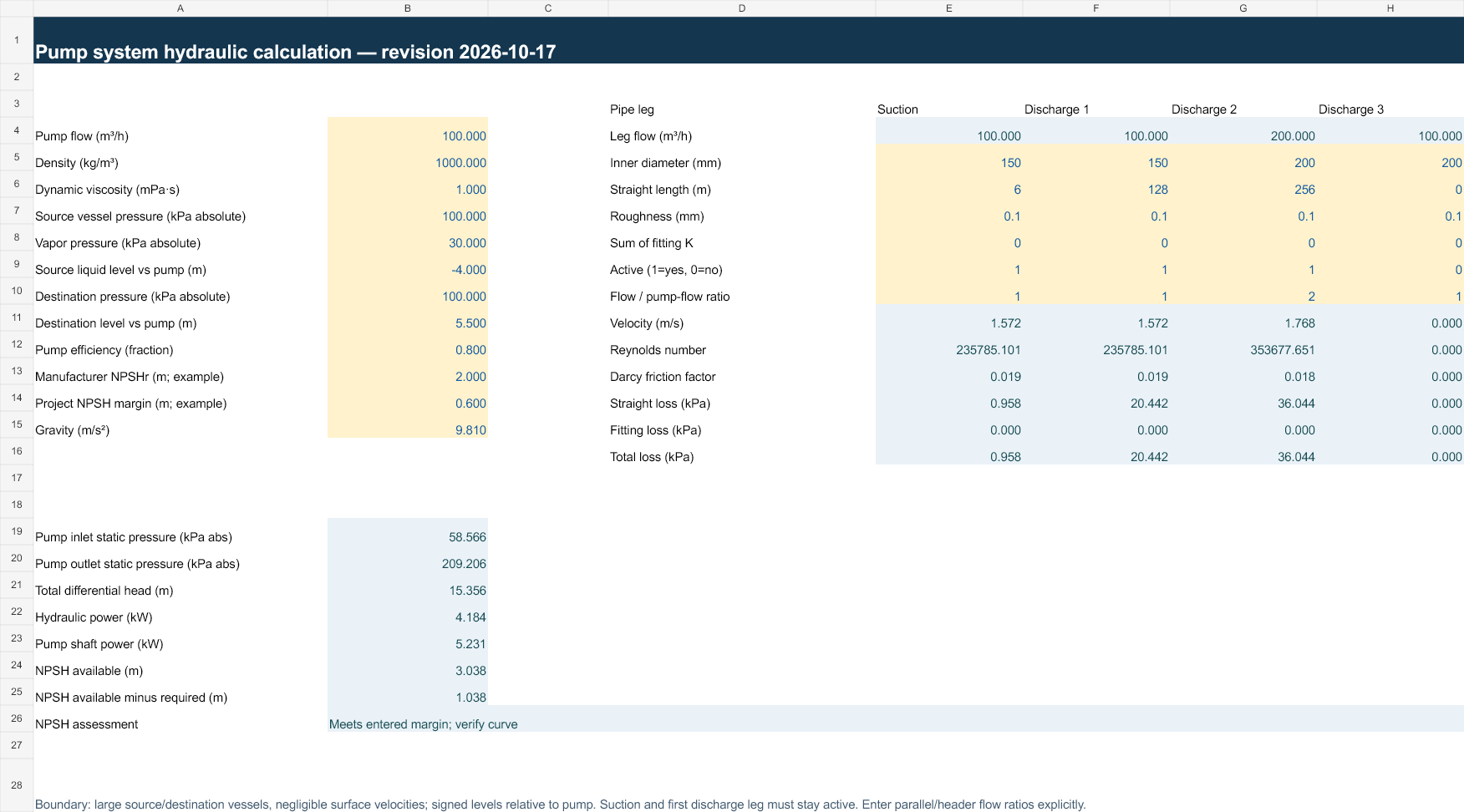

Pump System Hydraulic Calculator
Professional pump system hydraulic calculator with 364-row calculation engine. Calculate incompressible fluid pipe pressure drop, centrifugal pump total dynamic head (TDH), pump power requirement, NPSH available verification, and pipe diameter optimization. Covers suction and discharge sections with static head, friction loss, and local fitting losses. Validates NPSHa > NPSHr + margin.

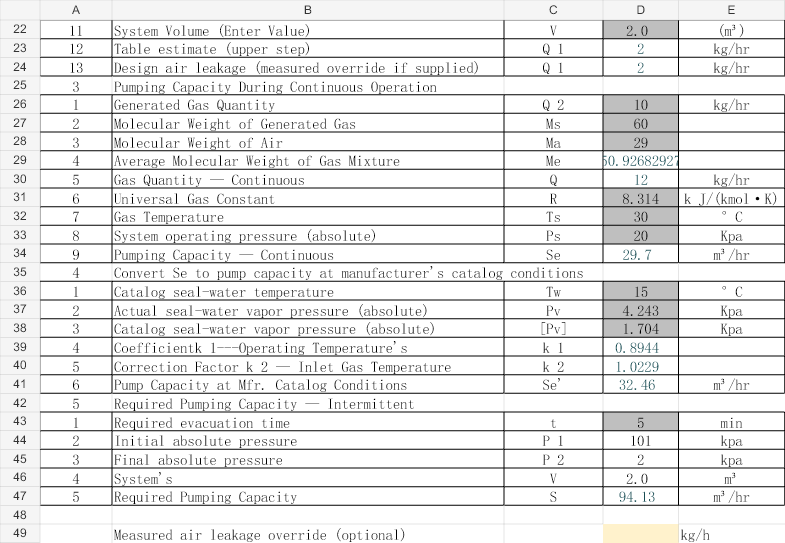

Liquid Ring Vacuum Pump Sizing
Liquid ring vacuum pump sizing and selection calculator. Computes air leakage rate based on seal length and system volume, required pumping capacity for continuous and intermittent duty, gas mixture molecular weight correction, operating liquid temperature effects, and pump capacity conversion to manufacturer catalog conditions.

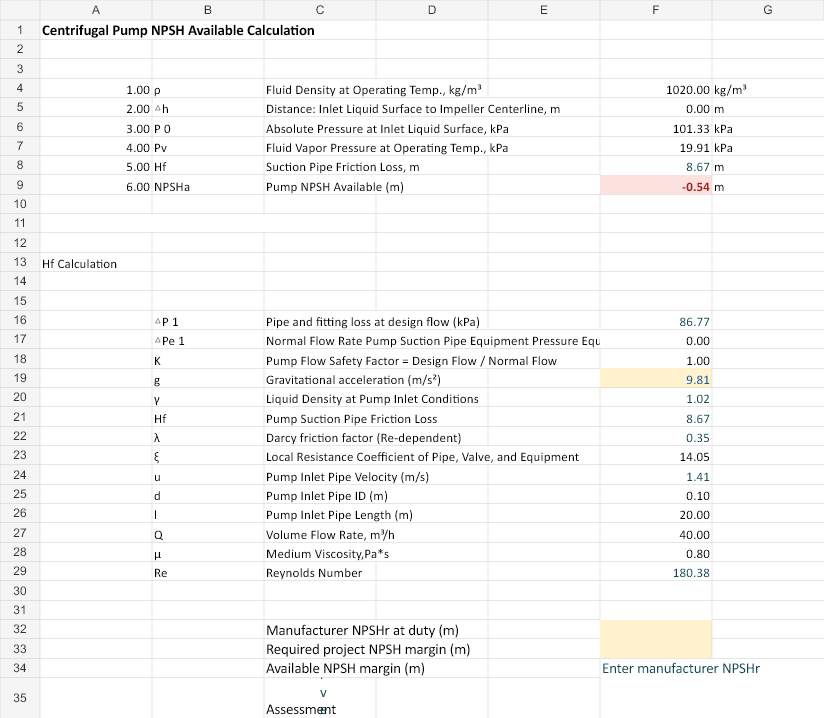

Centrifugal Pump NPSH Calculator
Centrifugal pump NPSH (Net Positive Suction Head) available calculator. Computes NPSHa considering absolute pressure at suction vessel, fluid vapor pressure at operating temperature, static head correction (+ for flooded suction, - for suction lift), suction pipe friction losses including fittings and valves. Critical for avoiding pump cavitation.

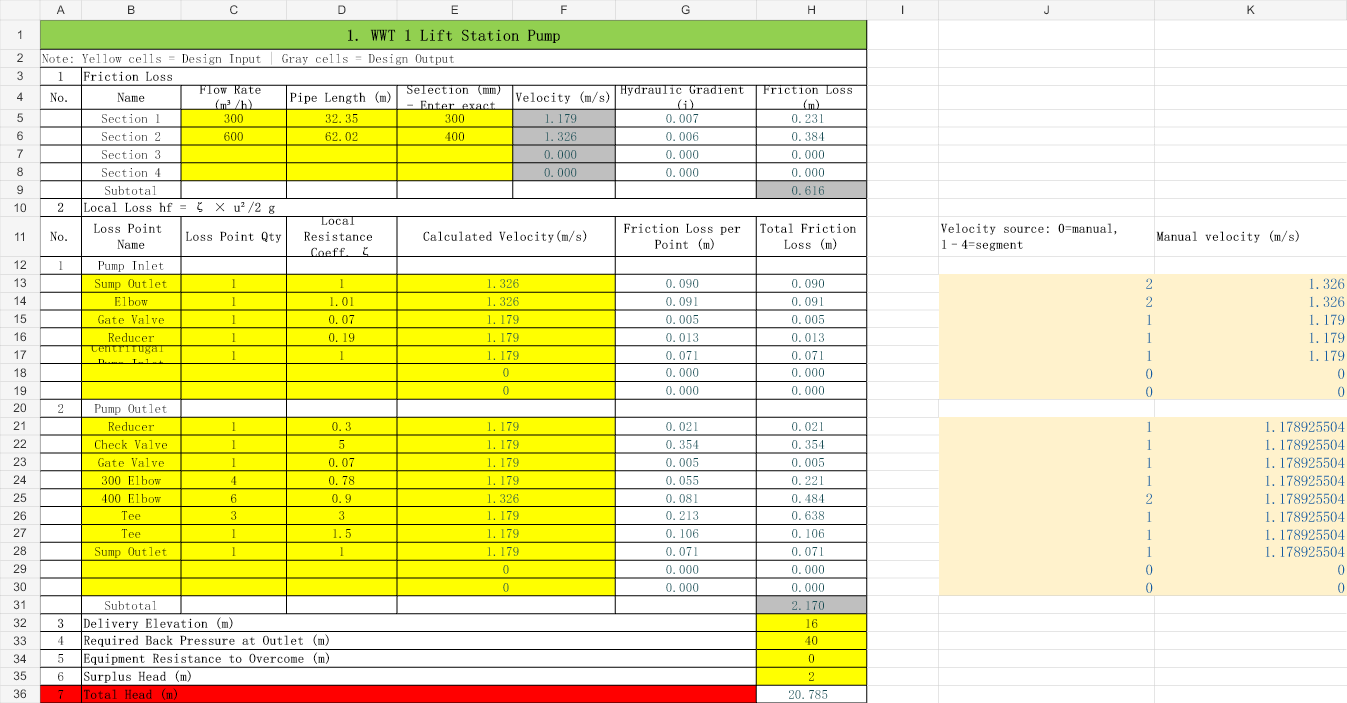

Lift Station Pump Head Calculator
Wastewater lift station pump head calculation spreadsheet with 450 rows. Covers carbon steel & cast iron pipe (Hazen-Williams) and plastic PE/PVC pipe scenarios, friction head loss for each pipe section, local fitting and valve losses (elbows, tees, check valves), required residual pressure at discharge point, and total dynamic head for pump selection.

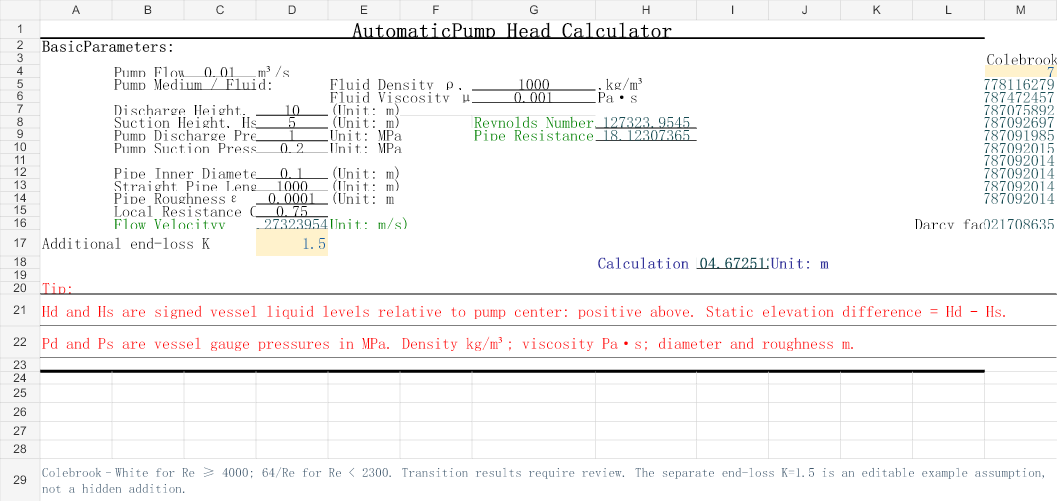

Pump Head Determination + Friction Ref
Pump total head determination calculator with built-in engineering reference tables. Includes pipe absolute roughness values for 12+ pipe materials, local resistance coefficient (zeta) database for 30+ fittings and valves (elbows, tees, bends, gate/globe/butterfly/check valves, strainers, expansions, contractions), and automated calculation of system resistance curve.

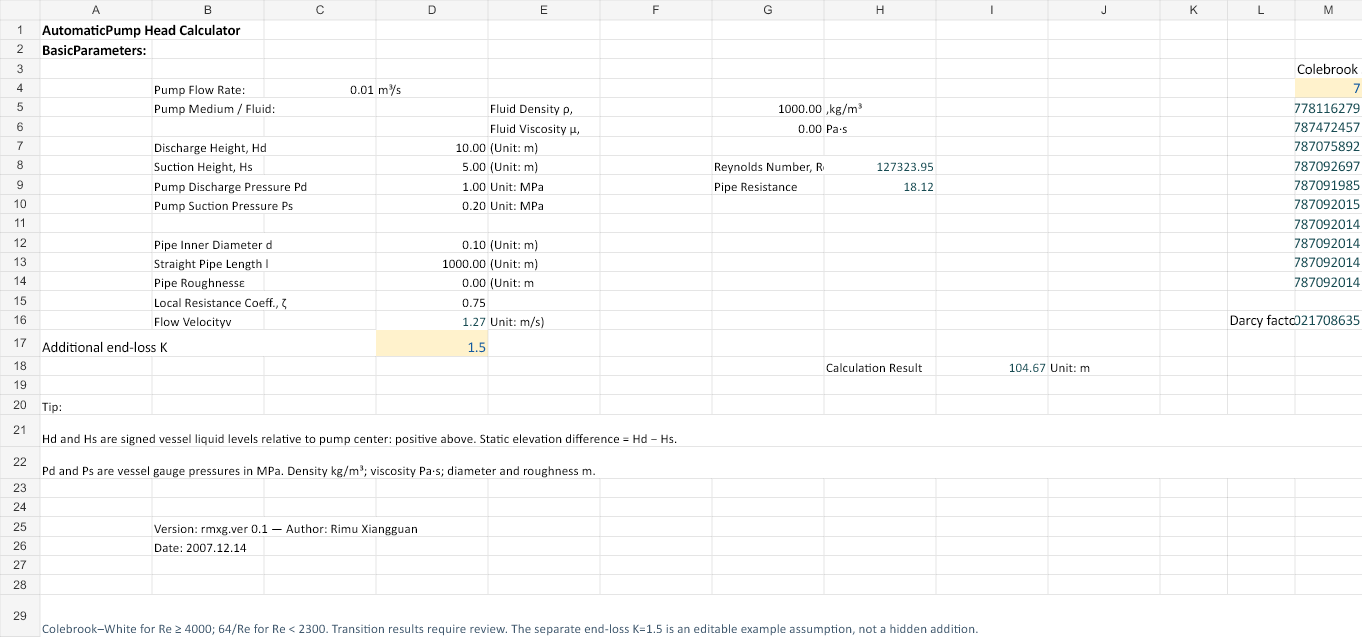

Automatic Pump Head Calculator
Automatic pump head calculator with interactive inputs and instant results. Simply enter flow rate, fluid density and viscosity, suction/discharge heights, pipe diameter and length, fitting types and quantities. Automatically computes Reynolds number, friction factor (Colebrook), total system head loss, and required pump head.

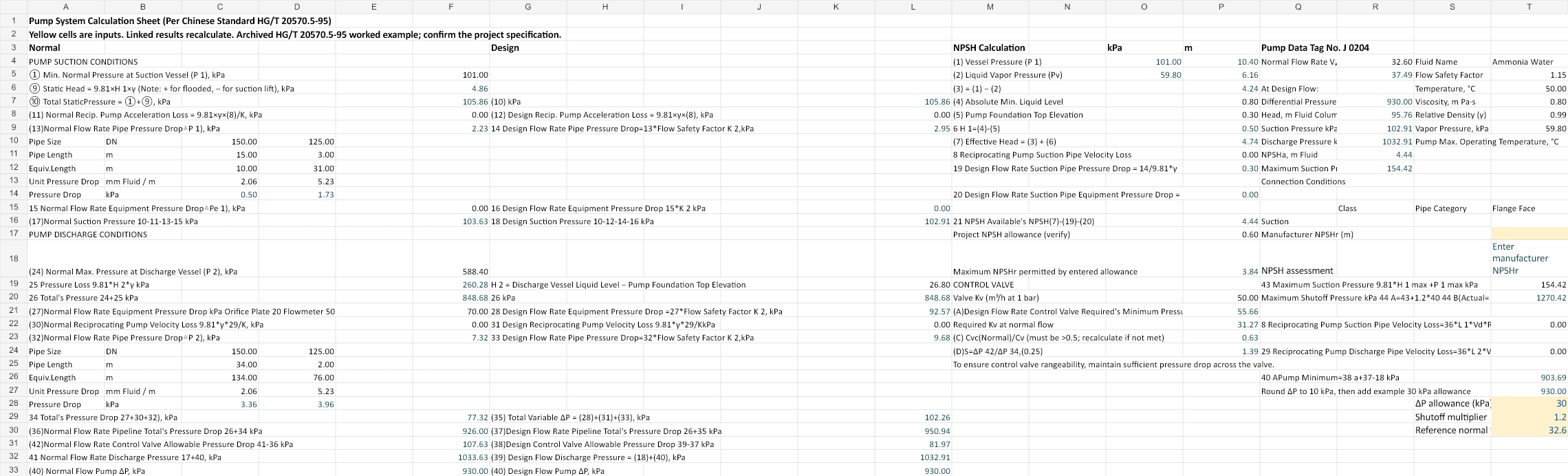

Pump System Calc Sheet (HG Standard)
Pump system engineering calculation sheet based on structured design methodology (HG/T20570.5-95 format). Addresses suction and discharge condition analysis, static and friction pressure drop, NPSH available verification with safety margin, control valve pressure drop and Cv sizing, total pump differential head determination, and motor power selection with safety factors.

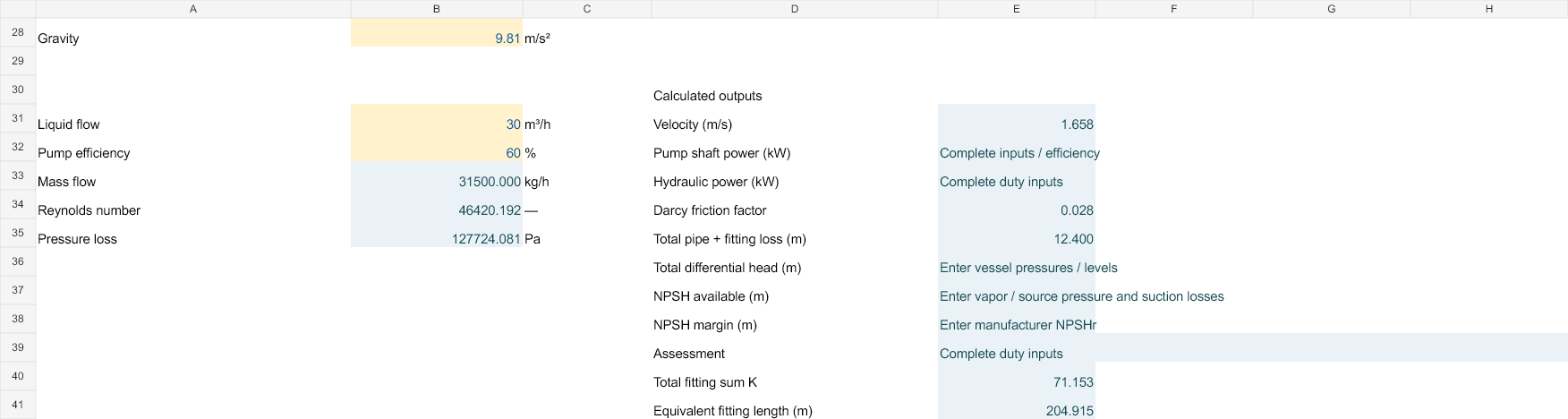

Centrifugal Pump Calculation Workbook
Chemical centrifugal pump calculation workbook for pipe system design. Uses the equivalent length method to account for fittings (gate, globe, check, butterfly, angle valves, foot valve with strainer, elbows, venture and rotameter flowmeters). Calculates straight pipe friction loss, total equivalent length, total pressure drop, and recommended motor power with ANSI/HI safety factors.

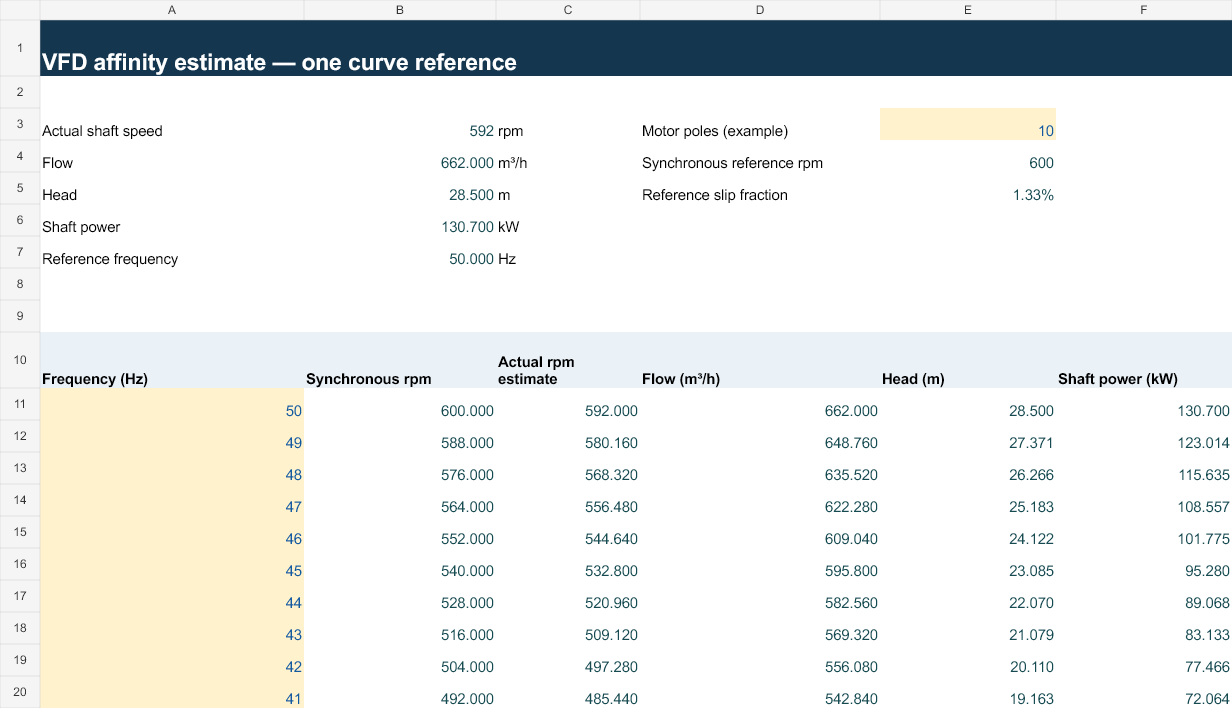

Slurry Pump & VFD Selection Calculator
Comprehensive slurry pump and VFD (Variable Frequency Drive) selection calculator for mineral processing and chemical slurry transport. Includes thickener underflow pump pipeline sizing, slurry rheology (weight/volume concentration, solids density, viscosity), critical deposition velocity, pipe friction loss for settling slurries, VFD optimization with affinity laws, and NPSH verification for slurry service. Worked example for carnallite and potassium-mixed salt slurries at 1.2M t/a capacity.
Frequently Asked Questions About Pump Engineering Calculations
What pump calculation tools are available for free download?
Our downloads page offers 10 professional Excel spreadsheet calculators: centrifugal pump head, NPSH, hydraulic system sizing, vacuum pump selection, wastewater lift station design, slurry pump and VFD optimization, impeller trimming, pipe friction loss, and motor power sizing. Each tool is ready to use — simply input your engineering parameters.
Are these Excel spreadsheets compatible with Goulds 3196 and Durco Mark III pumps?
Yes. These engineering tools are designed for ANSI B73.1 process pumps and are fully applicable to Goulds 3196, Durco/Flowserve Mark III, and all interchangeable ANSI pump models. The hydraulic calculations, NPSH analysis, and system sizing methodologies follow HI (Hydraulic Institute) and ANSI standards used across North America.
How do I calculate NPSH for a centrifugal pump?
NPSH available = Absolute pressure at suction vessel + Static head (± elevation) − Vapor pressure of fluid − Suction pipe friction losses. Our free NPSH calculator spreadsheet handles all these variables automatically. Ensuring NPSHa > NPSHr + safety margin is critical to prevent pump cavitation damage in chemical process applications.
What is the difference between static head and friction head in pump systems?
Static head is the vertical elevation difference between suction and discharge liquid levels (independent of flow). Friction head is the energy loss due to fluid flowing through pipes, fittings, and valves (varies with flow rate). Our hydraulic calculator computes both separately and sums them for total dynamic head, following the Darcy-Weisbach equation with built-in friction factor and local resistance coefficient databases.
Can I use these Excel tools for slurry pump selection?
Absolutely. Our Slurry Pump & VFD Selection Calculator is specifically designed for mineral processing and chemical slurry transport. It accounts for slurry rheology (weight/volume concentration, solids density), critical deposition velocity (to prevent pipe blockage), viscosity effects on pump performance, and VFD optimization using pump affinity laws. Includes a worked example for carnallite and potassium-mixed salt slurries at industrial scale.
Do I need special software to open these pump calculation spreadsheets?
All files are in .XLSX format, compatible with Microsoft Excel 2010+, Google Sheets, LibreOffice Calc, and most spreadsheet applications. No macros or VBA required — calculations use standard Excel formulas. Simply download, enable editing, and enter your pump system parameters in the yellow-highlighted input cells to get instant results.
