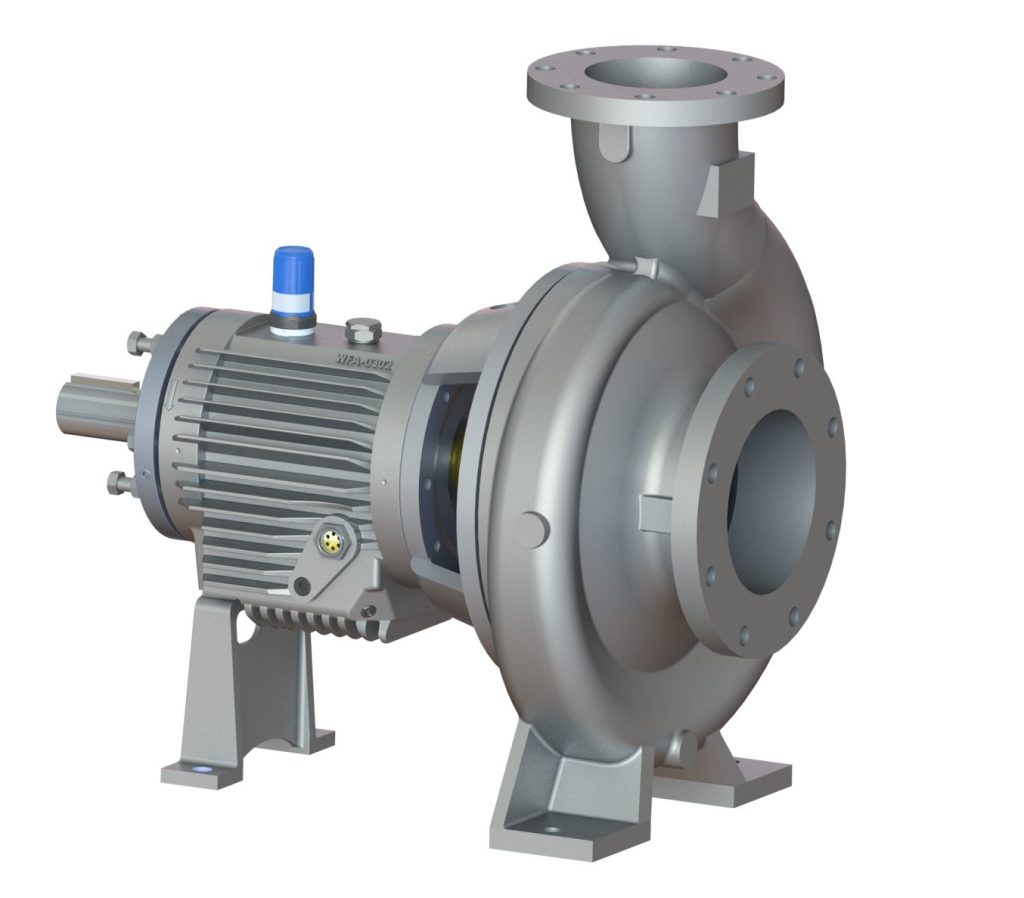

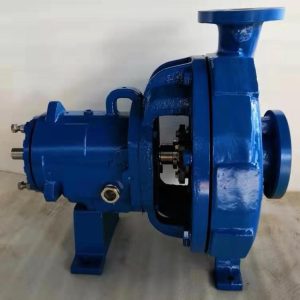

ANSI/ASME B73.1 Horizontal Process Pump
5-Year Unconditional Power Frame Warranty — zero oil maintenance for up to 5 years with sealed ISOMAG™ magnetic lubrication
Smart monitoring ready — real-time 3-axis vibration & bearing temperature monitoring capable (IP66, Class 1 Div. 2 compliant connections)
316L SS Shaft & Flinger Disk Lubrication — 30% longer bearing L-10 life and 15°F lower operating temperatures vs. flood oil design
Product Details
| Application | Chemical processing, petrochemical, pharmaceutical, pulp & paper, water treatment |
| Flow Rate | Up to 7,000 GPM (1,364 m³/h) |
| Head Range | Up to 730 ft (223 m) |
| Temperature | Up to 700°F (371°C) |
| Materials | Carbon Steel ASTM A216 (WCB), 316L SS, CD4MCuN, Hastelloy C-276, Alloy 20, Titanium Grade 2, Monel |
| Pressure Rating | Up to 375 PSIG (26 bar) |
Heavy-Duty ANSI/ASME B73.1 Process Pump
This horizontally-mounted, single-stage, overhung centrifugal process pump is engineered to the latest ANSI/ASME B73.1 standard. Designed for the most demanding industrial environments, it delivers reliable performance across chemical, petrochemical, refinery, pulp & paper, and water treatment applications. It features an advanced power frame with smart monitoring and a 5-year unconditional warranty.
Key Design Highlights

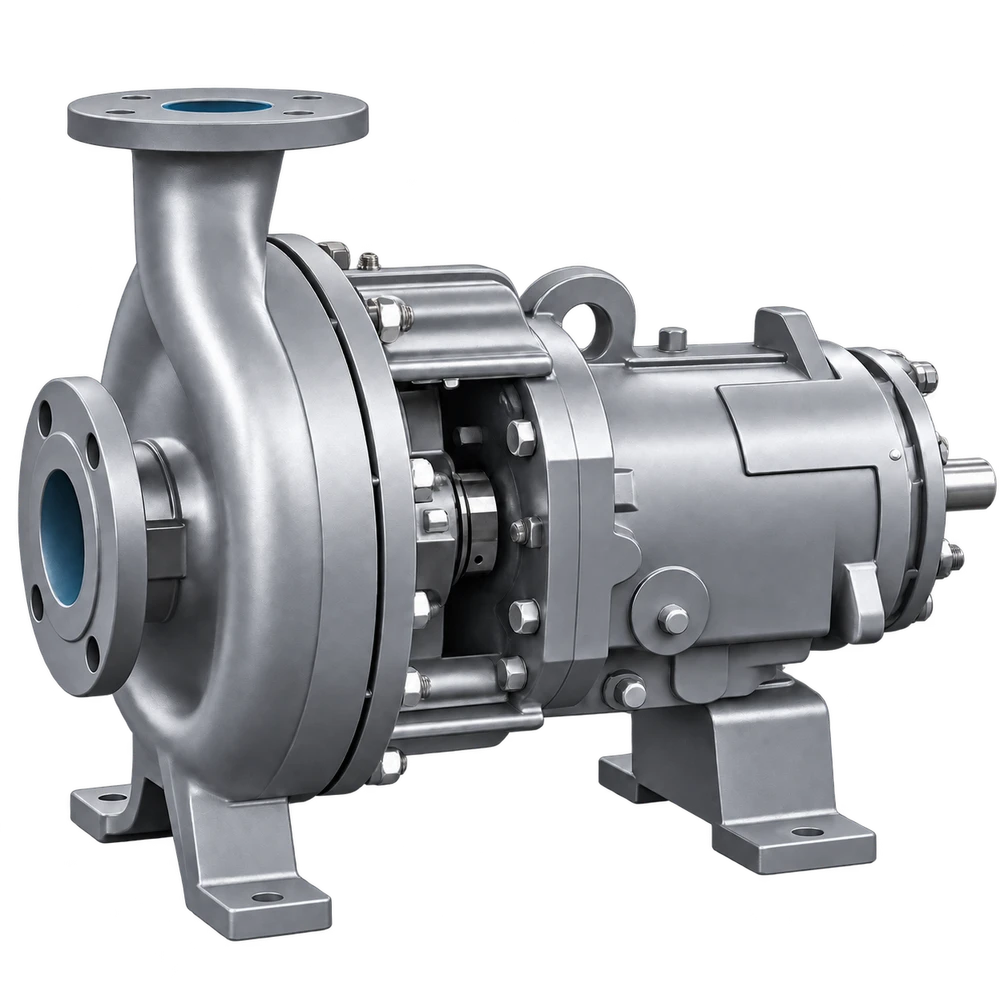

- Back pull-out construction — impeller, shaft, and bearing assembly remove as a single unit without disturbing casing or pipe connections
- Fully open impeller — threaded directly to shaft with O-ring seal; back pump-out vanes reduce seal chamber pressure and axial thrust
- Externally adjustable impeller clearance — restore peak efficiency in minutes without removing the pump from the line
- Carbon steel casing (ASTM A216 WCB) — 30% higher thermal conductivity than ductile iron; casing thickness exceeds ASME B73.1 minimums
- Precision serrated flange face — optimum gasket retention; self-venting top-centerline discharge
- 3156L stainless steel shaft — standard at no extra cost; flinger disk lubrication for improved bearing life
Power Frame — Designed for Zero Maintenance
The advanced power frame delivers exceptional reliability and uptime:
- Sealed lubrication chamber with ISOMAG™ magnetic seals (IP65 rated) — zero oil maintenance for up to 5 years
- 25% more cooling surface area compared to the previous generation
- Sloped, segregated drain isolates contaminants and extends oil life
- Flinger disk lubrication standard — 30% increase in bearing L-10 life, approximately 15°F lower operating temperatures
- Dual 1″ oil level sight glasses and magnetic drain plug for metal contaminant capture
- 5-Year Unconditional Power Frame Warranty
Performance Range
| Parameter | 60 Hz | 50 Hz |
|---|---|---|
| Maximum Capacity | 7,000 GPM (1,364 m³/h) | 5,800 GPM (1,130 m³/h) |
| Maximum Head | 730 ft (223 m) | 503 ft (154 m) |
| Maximum Temperature | 700°F (371°C) | |
| Maximum Pressure | 375 PSIG (26 bar) | |
Frame Groups & Size Coverage
| Frame Group | Shaft Diameter | Max BHP | Example Sizes |
|---|---|---|---|
| Group 1 | 1-3/8″ | 40 HP | 1×1.5×6, 1.5×3×6, 2×3×6, 1×1.5×8, 1.5×3×8 |
| Group 2 | 1-3/4″ | 122 HP | 3×4×7, 2×3×8, 3×4×8, 1×2×10, 1.5×3×10, 2×3×10, 3×4×10, 4×6×10, 1.5×3×13, 2×3×13, 3×4×13, 4×6×13 |
| Group 3 | 2-1/8″ | 200 HP | 1×2×10, 1.5×3×10, 2×3×10, 3×4×10, 4×6×10, 1.5×3×13, 2×3×13, 3×4×13, 4×6×13 |
| Group 4 | — | 250 HP | 6×8×13, 8×10×13, 6×8×15, 8×10×15, 8×10×16H |
| Group 4-17H | — | 400 HP | 4×6×17, 6×8×17, 8×10×17 |
Materials of Construction
| Component | Standard Material | Optional Upgrades |
|---|---|---|
| Casing | Carbon Steel ASTM A216 (WCB) | 316L SS, CD4MCuN, Hastelloy C-276, Alloy 20 |
| Impeller | Carbon Steel | 316L SS, CD4MCuN, Hastelloy C-276, Titanium |
| Shaft | 316L Stainless Steel | Duplex S5, Hastelloy C-276 |
| Frame Adapter | Carbon Steel | 316L SS |
| Gasket | Non-asbestos aramid fiber | PTFE, spiral-wound 316L/graphite |
Seal Chamber Configurations
Three seal chamber options accommodate all major mechanical seal manufacturers:
- Standard Bore — supports component and cartridge seals for general service
- Big Bore — larger cross-section for heavy-duty cartridge seals and abrasive services
- Taper Bore — optimized flow geometry reduces seal face temperature and extends seal life
Flange Standard: Class 150# flat-face serrated (standard); Class 300# raised-face (optional)
Bearing & Lubrication Options
- Standard: Flinger disk oil lubrication — single-row deep-groove (inboard) + double-row angular-contact (outboard)
- Optional: Regreasable bearings, purge oil mist, pure oil mist, or pressurized oil lubrication
- Group 3 & 4: Paired single-row angular-contact bearings (back-to-back) for maximum thrust capacity
Factory-Built Configurations

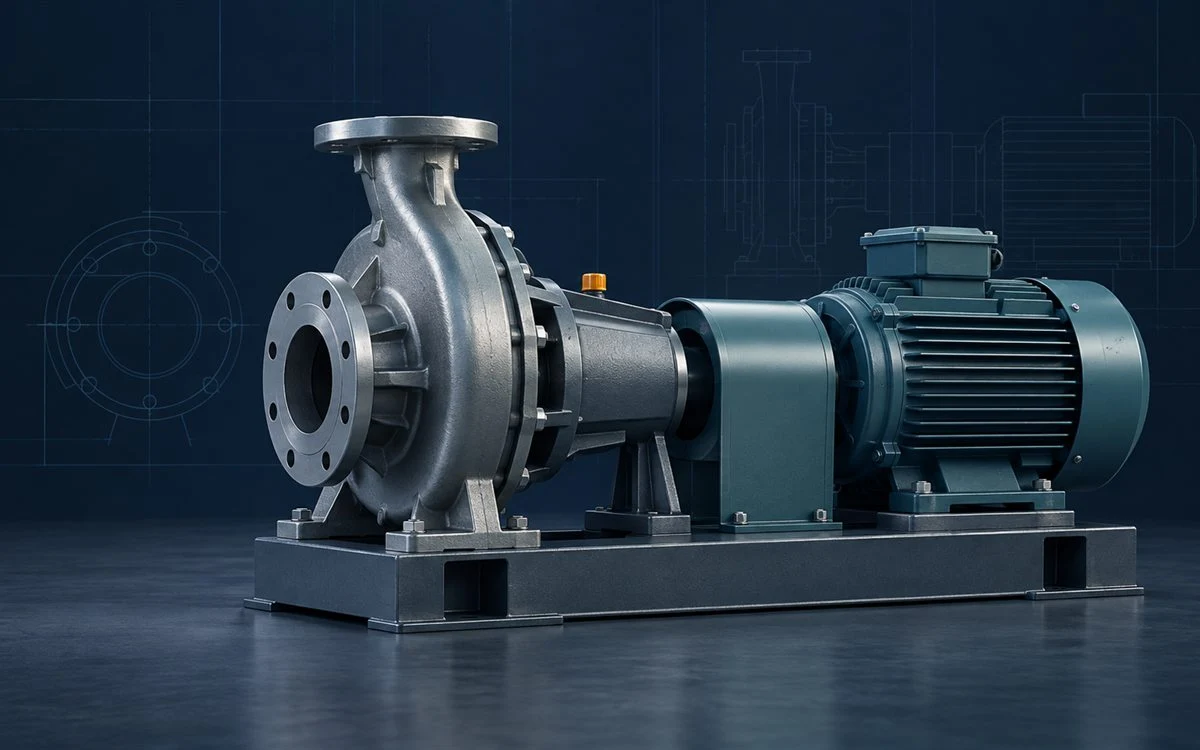

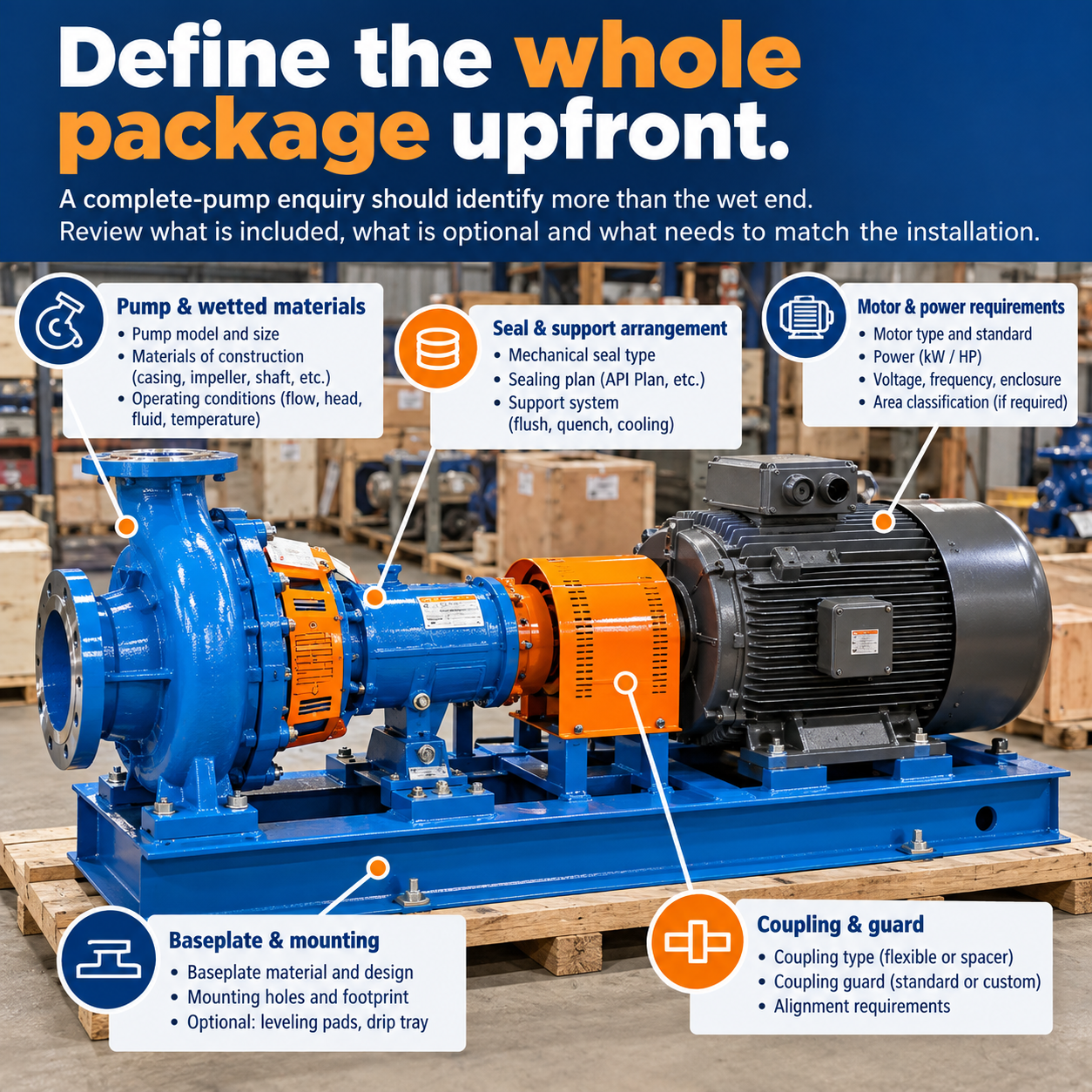

Every pump is factory-assembled and tested. Yingsiman provides full OEM supply-chain integration — ships complete with motor, baseplate, coupling, and coupling guard, ready for installation. All material certifications comply with EN 10204 3.1, with full PMI verification available.
Typical Applications
- Chemical Processing: Acids, caustics, solvents, and corrosive intermediates
- Petrochemical & Refining: Hydrocarbon transfer, condensate return, cooling water circulation
- Pharmaceutical: High-purity process streams, CIP/SIP compatible configurations
- Pulp & Paper: White water, black liquor, paper stock, coatings
- Water & Wastewater: Boiler feed, cooling tower, desalination, RO feed
