AHLSTAR Equivalent Process Pumps
ISO 5199 process pumps for clean liquids, corrosive media, abrasive slurry, fibrous liquids and solids-handling applications.
ISO 5199 / ISO 2858 Process Pumps
ISO 5199 process pump platform with ISO 2858 dimensional references for international industrial projects.
AHLSTAR, ZA / ZE / ZF, MC, ZPP and SNS equivalent programs for selected applications.
Complete pumps, wet-end and power-end components, specialty alloys, 150+ custom molds and engineering verification.
Product Details
| Application | Chemical process, pulp and paper, water and wastewater, oil and gas downstream, metals and mineral processing, food and general industry |
| Flow Rate | AC series up to 11,000 m³/h (48,400 US gpm) |
| Head Range | AC series up to 160 m (525 ft) |
| Temperature | Up to 180°C (355°F) |
| Materials | WCB, CF8M (cast 316 stainless steel), CD4M duplex stainless steel, CN7M, Hastelloy, CZ100, Titanium, Zirconium |
| Pressure Rating | Up to 16 / 25 bar (230 / 360 psi), depending on size and material |
Two Process Pump Platforms. One Manufacturing Source.
ANSI Pumps Pro supplies industrial process pumps and replacement components built around ANSI B73.1 and ISO 5199 / ISO 2858. The two platforms serve complementary project standards, installed equipment and regional requirements.
As a China-based manufacturer supplying established U.S. pump brands including Summit and PumpWorks, we combine casting development, precision machining, hydraulic engineering, material control and replacement-parts manufacturing under one supply chain. More than 150 custom molds have been developed for customer programs.
ISO 5199 and ISO 2858 Process Pump Standards
ISO 5199
Technical requirements for industrial centrifugal pumps
Provides a technical framework for mechanical design, shaft and bearing considerations, reliability, maintainability and process-industry operating requirements.
ISO 2858
Dimensional and nominal-duty standardization
Provides dimensional references for applicable end-suction centrifugal pumps, including pump size organization, nozzle relationships and shaft-centerline dimensions.
Final dimensional and hydraulic compatibility must be confirmed against the required pump model, duty point, material, flange standard and project specification.
Our ISO Process Pump Range
Our ISO program covers general process service, corrosive and abrasive duties, solids-handling service and selected replacement requirements for Sulzer pump installations.
ZA / ZE / ZF
Engineered equivalent solutions for selected industrial process and replacement applications.
MC Series
Equivalent pump solutions configured around the verified duty, materials and installation.
ZPP Series
Replacement and engineered pump solutions supported by casting, machining and material-selection capability.
SNS Series
Application-specific equivalent solutions with dimensional and hydraulic verification before production.
AHLSTAR-Equivalent Solutions by Process Duty
AC Standard Process Service
For clean and lightly contaminated liquids, viscous liquids, fibrous slurries, large-solids duties and selected gas-containing or self-priming applications.

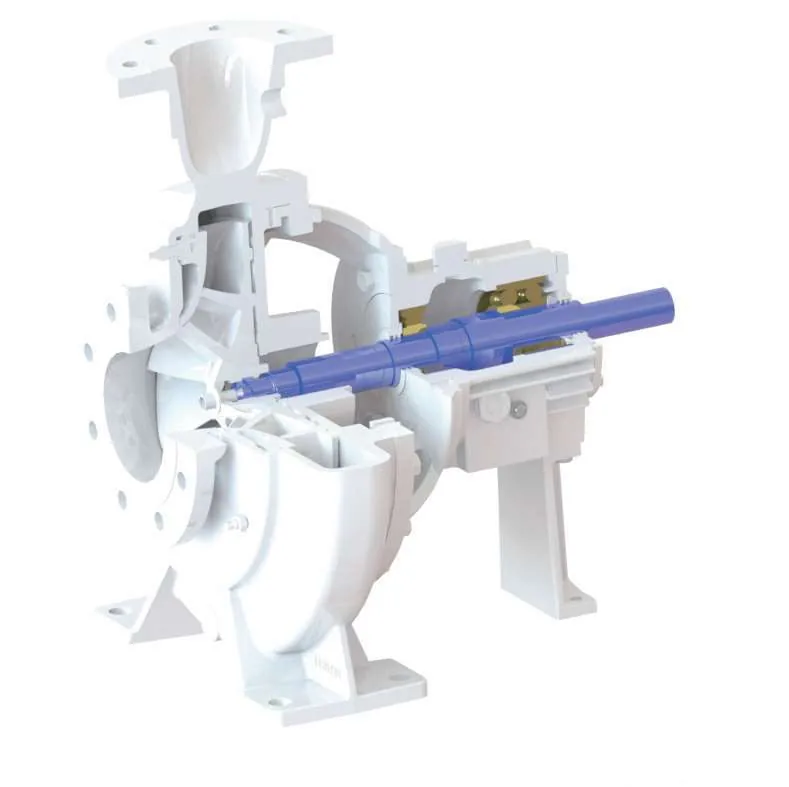

DW Wear-Resistant Service
For corrosive, abrasive, viscous and fibrous slurries where hydraulic design and material selection determine wear life.
DN Non-Clogging Service
For sludge, long fibers, large solids and gas-containing process liquids where a wide hydraulic passage is required.
| Series | Capacity | Head | Pressure | Temperature |
|---|---|---|---|---|
| AC | Up to 11,000 m³/h / 48,400 US gpm | Up to 160 m / 525 ft | 16 / 25 bar, 230 / 360 psi | Up to 180°C / 355°F |
| DW | Up to 7,000 m³/h / 31,000 US gpm | Up to 110 m / 360 ft | 16 / 25 bar, 230 / 360 psi | Up to 180°C / 355°F |
| DN | Up to 2,000 m³/h / 8,800 US gpm | Up to 90 m / 295 ft | 16 bar / 230 psi | Up to 180°C / 355°F |
Pressure capability depends on pump size and material. Final selection must be verified against the required liquid, duty point and project specification.
Materials for Corrosive and Severe Process Service
We manufacture pump casings, impellers and selected wet-end components in conventional stainless steels and specialty alloys.
| Material | Typical positioning |
|---|---|
| WCB | Carbon steel construction for selected industrial services |
| CF8M | Cast 316 stainless steel for corrosion-resistant process service |
| CD4M | Duplex stainless alloy for chloride, corrosion and strength requirements |
| CN7M | Alloy 20-type corrosion-resistant casting |
| Hastelloy | High-corrosion-resistance applications |
| CZ100 | Specialty alloy option based on project specification |
| Titanium | Chloride, seawater and highly corrosive service |
| Zirconium | Specialty severe-corrosion applications |
Material availability, heat treatment, testing requirements and final selection must be confirmed for each project.
Built for OEM and Replacement Pump Programs
Casting and Pattern Development
Custom pump castings, complex volute and impeller patterns, specialty alloy programs and more than 150 customer molds developed.
Precision Machining
Pump casing machining, shafts, sleeves, bearing-frame components and controlled dimensional inspection.
Material Control
PMI where required, material certificates, alloy verification and project-specific inspection plans.
Assembly and Testing
Pump assembly, hydrostatic testing, dimensional inspection and performance testing when specified.
Engineering Support from Model to Pump

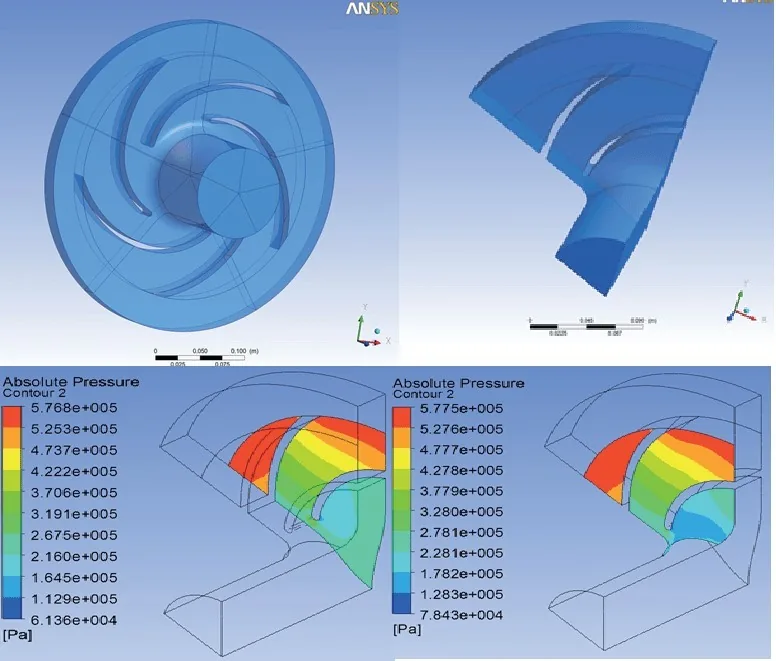

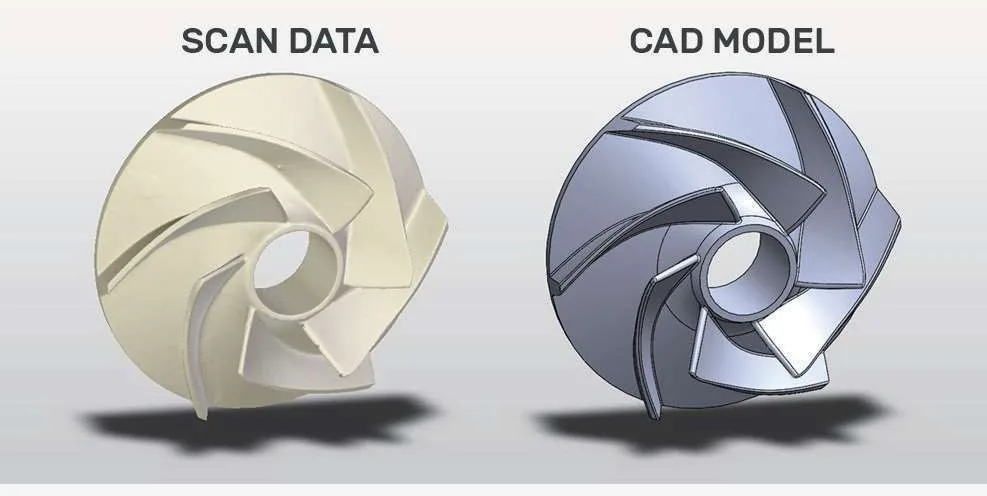

Our workflow supports 3D CAD modeling, hydraulic geometry review, CFD analysis, pattern validation, dimensional comparison, material review and pump testing.
Industries We Serve
Chemical Process
Process transfer, corrosive chemicals, solvents, acids, alkalis and plant utilities.
Pulp and Paper
Stock preparation, process water, fibrous liquids and chemical recovery support.
Water and Wastewater
Industrial water, wastewater, sludge and solids-containing applications.
Oil and Gas Downstream
Refinery, petrochemical, process transfer and utility duties subject to project specification.
Metals and Minerals
Abrasive and corrosive process liquids, slurry service and plant utility systems.
Food and General Industry
Selected process-transfer and utility duties with application-appropriate materials.
ISO 5199 / ISO 2858 or ANSI B73.1?
Both platforms are widely used for industrial process pumping. Project standards, installed equipment, dimensions and regional preferences determine the appropriate choice.
| Item | ISO 5199 / ISO 2858 | ANSI B73.1 |
|---|---|---|
| Positioning | International ISO process-pump platform | North American ANSI process-pump platform |
| Replacement focus | Selected Sulzer-equivalent families | Goulds 3196, Durco Mark 3 and other ANSI families |
| Supply scope | Complete pumps and components | Complete pumps and replacement parts |
| Materials | Standard and specialty alloys | Standard and specialty alloys |
Need to Replace an Existing Sulzer Pump?
Send Pump Information
Provide the model, nameplate, duty point, speed, material, liquid, temperature, nozzle sizes, drawings and photos.
Engineering Review
We review hydraulic duty, materials, dimensions, shaft and seal arrangement, and installation constraints.
Technical Proposal
Receive a recommended pump model, material, configuration, commercial quotation and lead time.
Production and Inspection
Production can include casting, machining, assembly, dimensional inspection, hydrostatic testing and performance testing.
ISO Process Pump FAQ
What is the difference between ISO 5199 and ISO 2858?
ISO 5199 provides a technical specification framework for industrial centrifugal process pumps. ISO 2858 provides dimensional and nominal-duty references for applicable end-suction centrifugal pumps.
Do you manufacture complete pumps or only replacement parts?
We support complete ISO process pump assemblies and engineered replacement components, depending on the pump family and application.
Which Sulzer-equivalent pump families do you offer?
Our current program includes AHLSTAR-equivalent pumps and selected ZA / ZE / ZF, MC, ZPP and SNS equivalent families.
Can you provide a direct replacement for an existing Sulzer pump?
For selected models, we can evaluate a replacement solution. Compatibility must be confirmed using the existing model, duty point, dimensions, material and installation information.
What materials are available?
Available manufacturing materials include WCB, CF8M, CD4M, CN7M, Hastelloy, CZ100, Titanium and Zirconium, subject to configuration and project requirements.
Can you manufacture pumps for abrasive or solids-containing liquids?
Yes. The ISO platform includes AC general process, DW wear-resistant and DN non-clogging configurations. Final hydraulic and material selection is based on actual fluid and operating conditions.
Request an ISO Process Pump Quote
Send the existing pump model, duty point, material and installation information. Our engineering team will review the application and prepare a technical and commercial proposal.
