A / APT
Installed configurationGeneral process service
Information to sendFull model, pump size, duty and installed arrangement.
SULZER & AHLSTROM REPLACEMENT PROGRAM
AHLSTAR replacement pumps.
Engineered to fit.

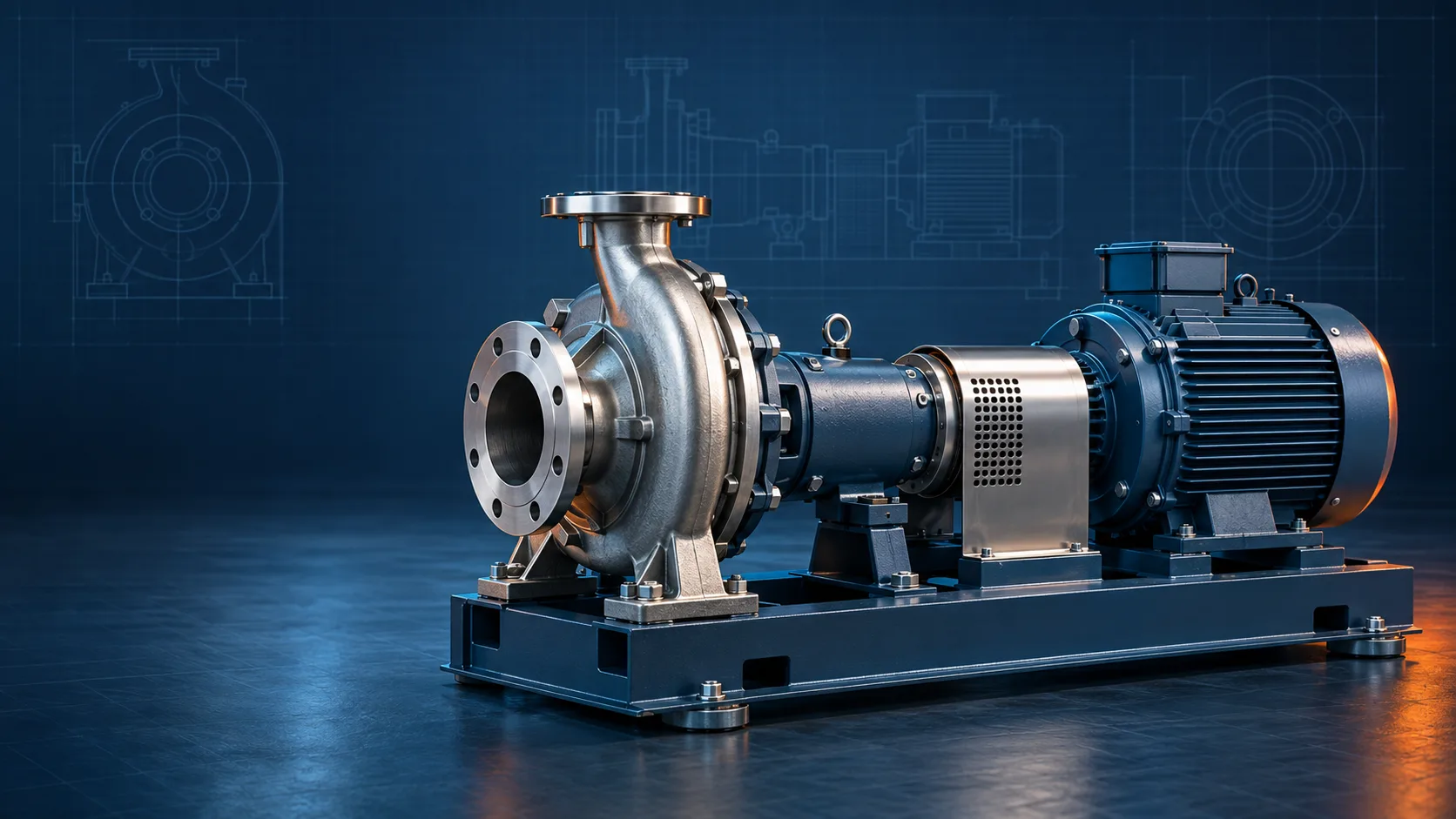

Replace your installed Sulzer or Ahlstrom AHLSTAR pump without changing piping or foundations. We match the duty, process conditions and installation interfaces, then record the configuration in your approval drawings.
Only have a nameplate photo? Start hereAHLSTAR / REPLACEMENT ENGINEERINGINSTALLATION MATCH
Hydraulic dutyInstallation fitDocumented supply
- Complete-pump delivery
- 6–8 weeks
- Engineering report / proposal
- 48 hours
- Piping & foundation changes
- Zero
- Materials, testing & documents
- Every pump
Delivery follows the agreed order schedule; the 48-hour review starts with sufficient pump and duty information. The project GA records the exact installed interfaces.
01 / IDENTIFY THE CONFIGURATION
Identify the exact AHLSTAR series.
The family name is the starting point. Send the full model and size so we can match the hydraulic and mechanical configuration.
WPP / WPT
Installed configurationWear-resistant process service
Information to sendSolids concentration, particle size and abrasive characteristics.
NPP / NPT
Installed configurationNon-clogging process service
Information to sendSolids, fibers and the fluid handling requirements.
EPP / EPT
Installed configurationHigh-temperature process service
Information to sendOperating and design temperatures, seal and thermal requirements.
Installed-family technical reference: Sulzer AHLSTAR A range.
02 / ENGINEERING FIT
Keep the interfaces.
Match the process.
A replacement must fit the installation and handle the actual fluid. These checks define the proposed pump and the information you approve.
Hydraulic duty
Flow, head, speed, operating range and available NPSH, including any change from the original duty.
Recorded inDuty selection & pump curve
Installed geometry
Suction and discharge flanges, nozzle orientation, centerline, mounting holes and baseplate dimensions.
Recorded inGA & interface drawing
Fluid & wetted materials
Temperature, chemistry, viscosity, solids or fibers, and the specified corrosion or wear resistance.
Recorded inMaterial & process specification
Seal & retained driver
Seal arrangement, flush connections, rotation, coupling and the condition of any retained motor.
Recorded inAssembly & supply boundaries
Review the match before manufacture.
Your report identifies the proposed configuration, agreed dimensions, supply boundaries and any data still required. Approval drawings establish the manufacturing basis.
03 / SCOPE & DOCUMENTS
Choose what you replace.
A complete pump is the primary route. If you retain the driver or base, request a bare pump or assembly and include the coupling and mounting details. For a wet end or selected components, send the part number, BOM or assembly drawing so the retained interfaces are included in the review.
Discuss my supply scopeApproved configuration
Duty and interface drawings, material and seal specification, driver requirements and a clear equipment list.
Material & test records
Specified material identification and traceability, inspections and test reports to the agreed project requirements.
Delivery & operation
Equipment identification, packing list, operating documentation and the written delivery and warranty terms.
WARRANTY
18 months from shipment / 12 months from commissioningWhichever occurs first.
Recorded in the written supply terms.
- 01 / SEND
Your installed pump data
Start with the model or nameplate, duty and available drawings.
- 02 / REVIEW
Report or proposal in 48 h
From sufficient information, with the fit and supply scope recorded.
- 03 / APPROVE
Agree the project basis
Confirm drawings, materials, inspections, tests and delivery milestones.
- 04 / DELIVER
Complete pump in 6–8 weeks
Manufacture and delivery follow the agreed order schedule.
04 / START YOUR REPLACEMENT
Let’s review your AHLSTAR pump.
Send the information you have. Your series is preselected; unknown technical details can be added later.
Start with your installed pump. Unknown technical details can be added later.
Prefer email? Send your nameplate to [email protected]Attach the files in your email application.
How do I identify my AHLSTAR series?
Send a clear nameplate photo showing the manufacturer, full model, size and serial number. Include an overall installation photo. We identify the series and explain which duty or dimensional information is needed next.
What extra data helps with WPP/T or NPP/T replacement?
For wear-resistant service, include solids concentration, particle size and abrasive characteristics. For non-clogging service, describe fibers, solids and fluid behavior. These details guide the hydraulic arrangement and wetted material selection.
Can I keep my piping, foundation and motor?
We match piping and foundation interfaces to your installed configuration and record the dimensions in the project GA. A retained motor also needs its rating, speed, shaft, coupling and mounting checked against the selected replacement.
Can you start without the original pump curve?
Yes. Send the model, available flow and head, fluid information and installation photos. Operating readings and measurements help reconstruct the duty basis; the review identifies any information still required for final selection.
Can you supply a complete pump, bare pump or wet end?
Yes. State the requested scope in the enquiry. The proposal identifies the pump, motor, coupling, guard, baseplate and any retained equipment. A wet-end or component supply is matched to the relevant assembly interfaces.
What delivery, documents and warranty are included?
Complete-pump delivery is 6–8 weeks against the agreed order schedule. Each unit includes the specified material, testing and delivery documents. Warranty is 18 months from shipment or 12 months from commissioning, whichever occurs first, under the written supply terms.
