Pump and System Curves Determine the Operating Point

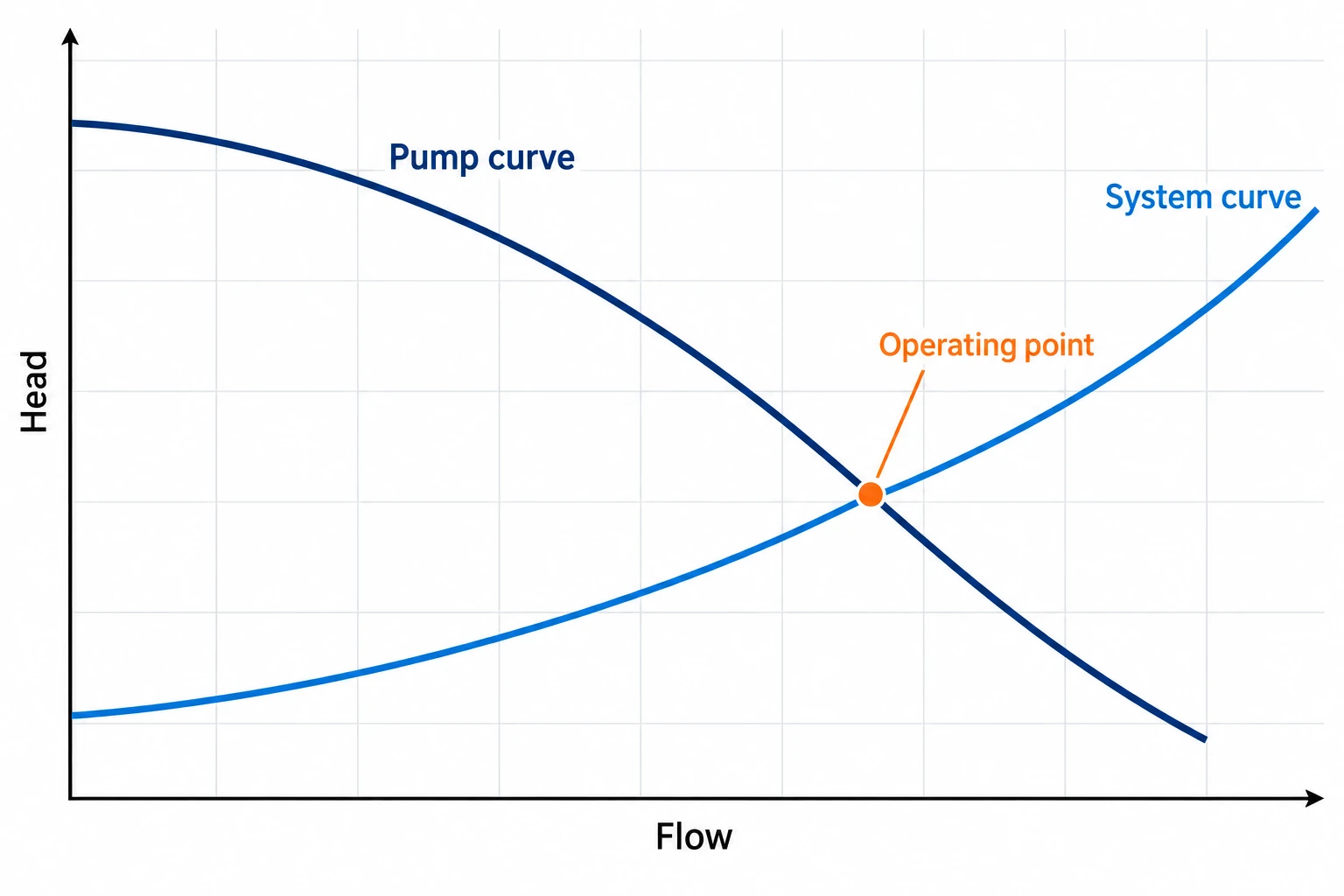

A centrifugal pump does not independently choose its installed flow. The operating point is established where the pump can develop the same head that the connected system requires at that flow. That is why a catalog duty point, nameplate value, or one isolated pressure reading is not enough to confirm how an installed pump is actually operating.
What Creates the System Curve?
The system curve represents the hydraulic requirement imposed by the installation. Its static or pressure-head component comes from elevation and pressure differences between system boundaries. Flow-dependent losses come from pipe, fittings, valves, equipment and other restrictions. A change in the process can therefore move the installed duty even when the pump itself has not changed.
| System term | Typical drivers | What to verify |
|---|---|---|
| Static / pressure head | Liquid levels, elevation, pressurized vessels, process backpressure | Boundary pressures, elevations and credible operating states |
| Pipe and fitting losses | Pipe diameter, length, elbows, tees, reducers and fittings | Actual geometry, roughness basis and flow path |
| Equipment losses | Strainers, heat exchangers, filters, control valves and other equipment | Clean/dirty condition, valve position and manufacturer loss data where available |
| Process configuration | Parallel branches, bypass lines, equipment online/offline, fouling | The exact configuration present when readings are taken |
When the goal is to calculate the hydraulic duty rather than only understand the concept, use the pump system hydraulic calculator. The calculator owns the calculation task; this article explains how to interpret the result in the pump-system context.
Three System Conditions That Change the Operating Point
For a fixed path between vessels with negligible liquid-surface velocities, combine elevation, surface-pressure difference and losses. The flow-independent term combines elevation and pressure difference. A constant-resistance approximation gives:
System curve and static term
H and Δz: m; pressures: Pa; ρ: kg/m³. Q: m³/h in this example; k: m/(m³/h)².
| Condition | Flow-independent term | Field evidence |
|---|---|---|
| A. Friction dominates | H₀ is near zero when surface levels and pressures match | Pipework, fittings, filters and valve positions |
| B. Static elevation is present | H₀ includes the level difference | Minimum and maximum vessel liquid levels |
| C. Vessel pressures differ | H₀ includes destination minus source pressure head | Both surface pressures and liquid density |
These conditions can coexist. A higher source pressure or lower destination can make H₀ negative; retain its sign and review gravity flow and check-valve behavior.
Example: keep the pump, change the static term

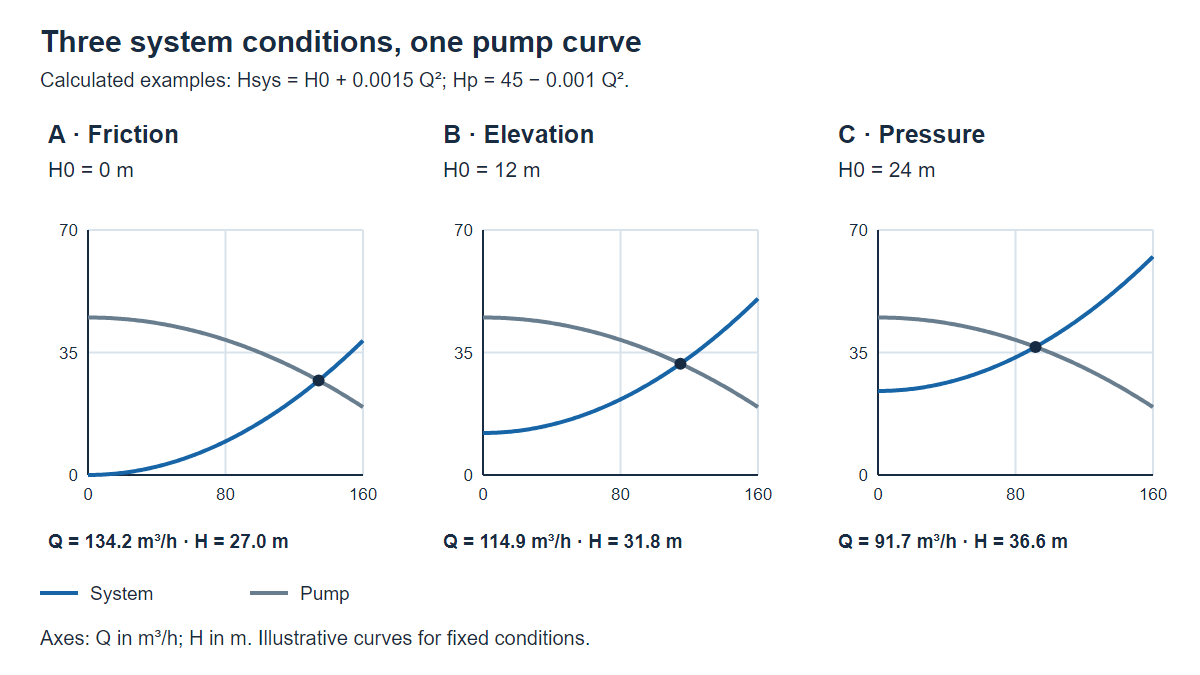

Example intersections
Q: m³/h; H and H₀: m; k = 0.0015 m/(m³/h)².
For H₀ = 0, 12 and 24 m, the intersections are approximately 134.2, 114.9 and 91.7 m³/h respectively.
Valve movement or fouling changes the resistance term; vessel levels and pressures change H₀. A speed reduction changes the pump curve and requires a new intersection. Variable friction, viscous liquids and active controls require the corresponding loss and control calculations.
Use the system hydraulic calculator to organize losses and the curve-reading guide to interpret the resulting duty. Continue to the variable-speed decision guide when evaluating speed control.
Technical basis: Hydraulic Institute: System Curves; Hydraulic Institute: Combined Pump & System Curves.
What Moves the Pump Curve—and What Moves the System Curve?

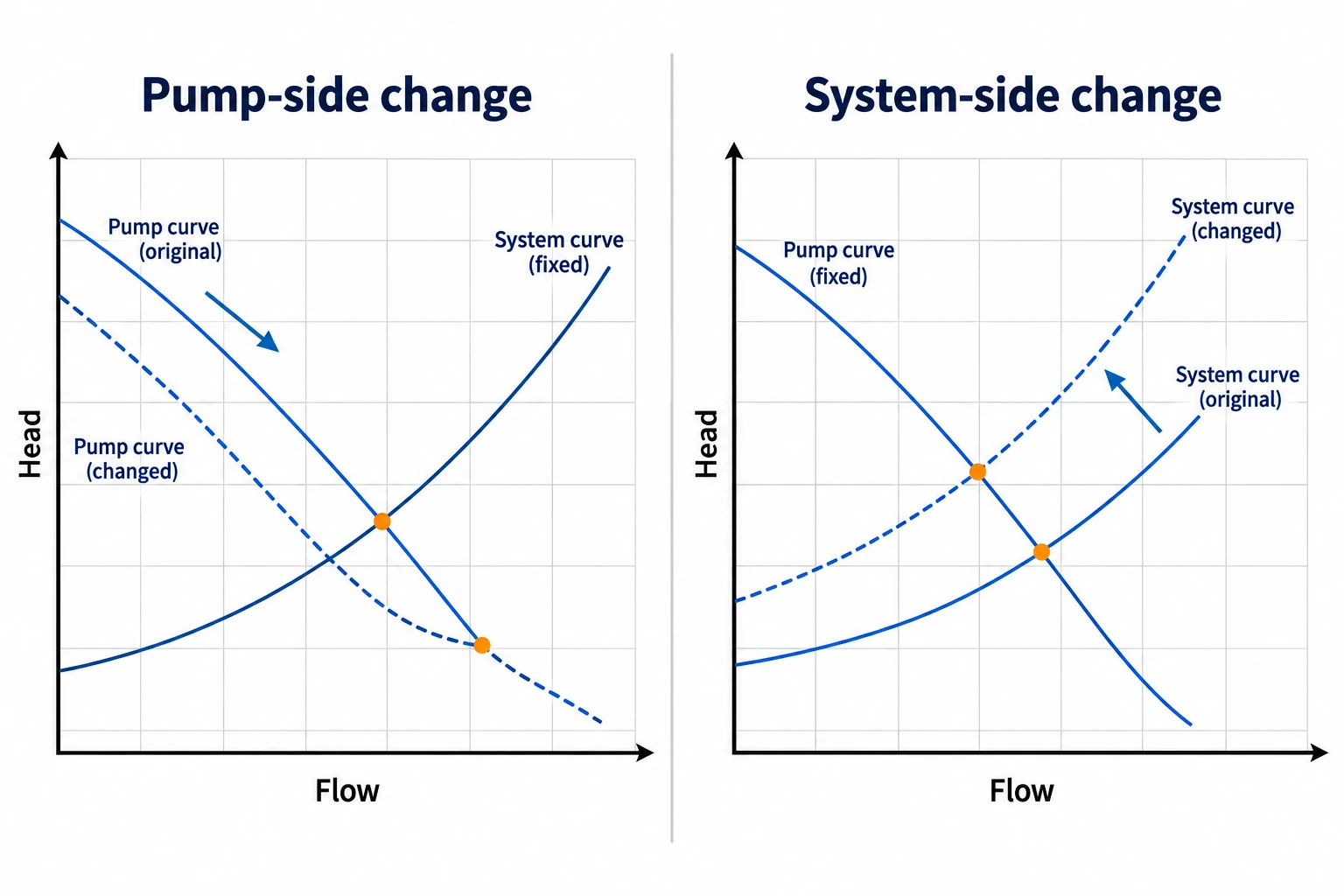

Not every operating change acts on the same side of the system. Speed and impeller diameter primarily change available pump performance. Throttling, changing vessel level and added system resistance primarily change the system requirement. Wear, viscosity and process changes can make the diagnosis less clean, so the change history and measurement basis matter.
| Change | Primary effect | Next engineering check |
|---|---|---|
| Speed change | Changes the pump curve | Use the correct speed basis and verify the new intersection with the real system curve |
| Impeller diameter change | Changes the pump curve | Use the applicable manufacturer curve or approved rerate data |
| Throttle valve movement | Changes system resistance | Re-establish the system curve and resulting operating point |
| Tank level or process pressure change | Changes static / pressure-head component | Recalculate the boundary condition |
| Fouling, blockage or wear | May affect the system, pump, or both | Compare clean baseline, field measurements and the correct pump curve |
If variable speed is under consideration, continue with the VFD application decision framework rather than treating speed reduction as an automatic energy or reliability improvement.
BEP, POR and AOR Are Operating-Region Checks

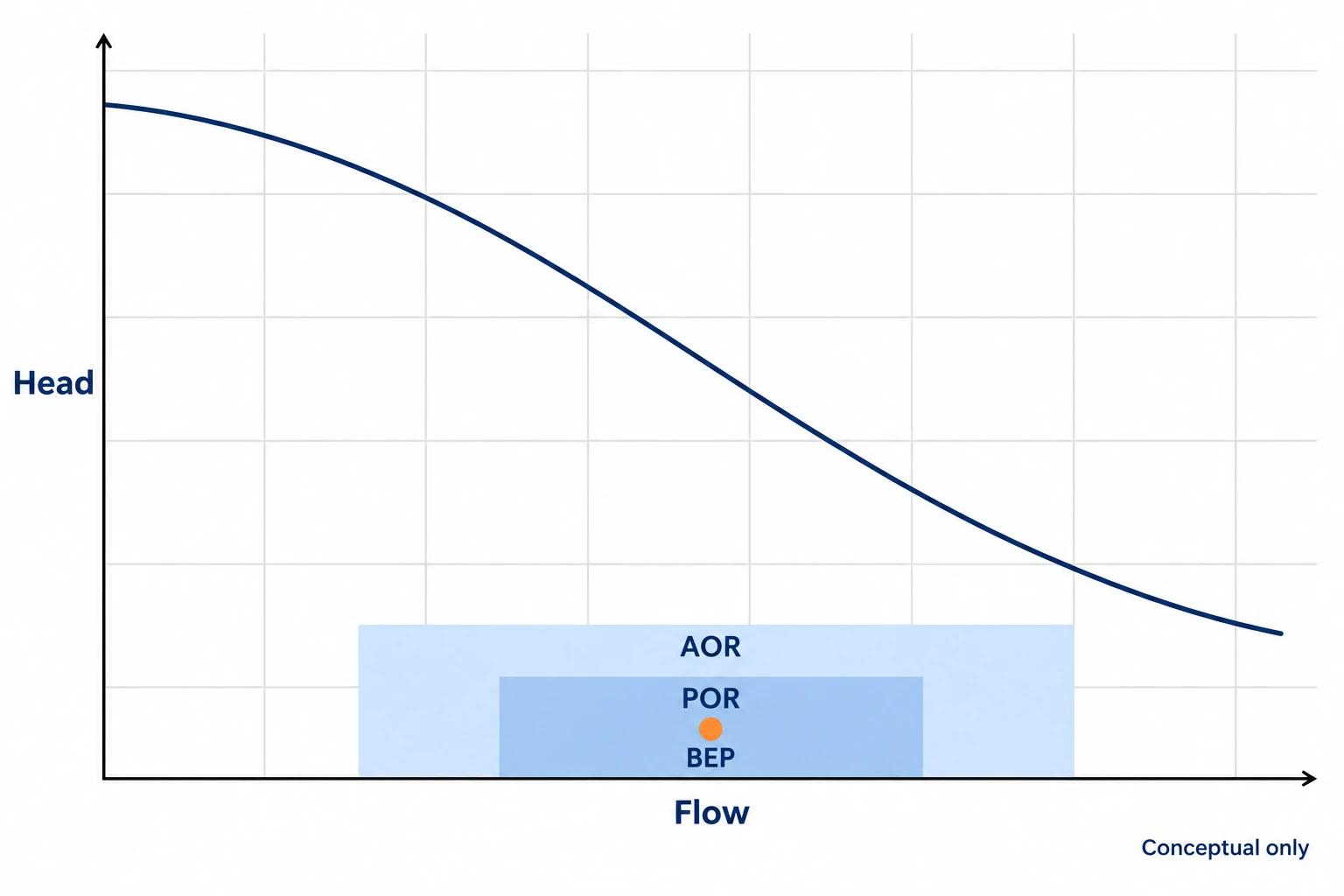

Best efficiency point (BEP) is a defined point on a pump performance curve for a stated configuration. Preferred operating region (POR) and allowable operating region (AOR) describe broader operating regions around the hydraulic design point, but their actual boundaries are not universal percentages that can be copied from one pump or service to another.
For detailed interpretation of head-capacity, efficiency, power, NPSHr, speed and impeller information, use the separate guide on how to read a centrifugal pump curve. For actual pump data, use the pump performance curves resource.
Field Measurements That Locate the Real Operating Point

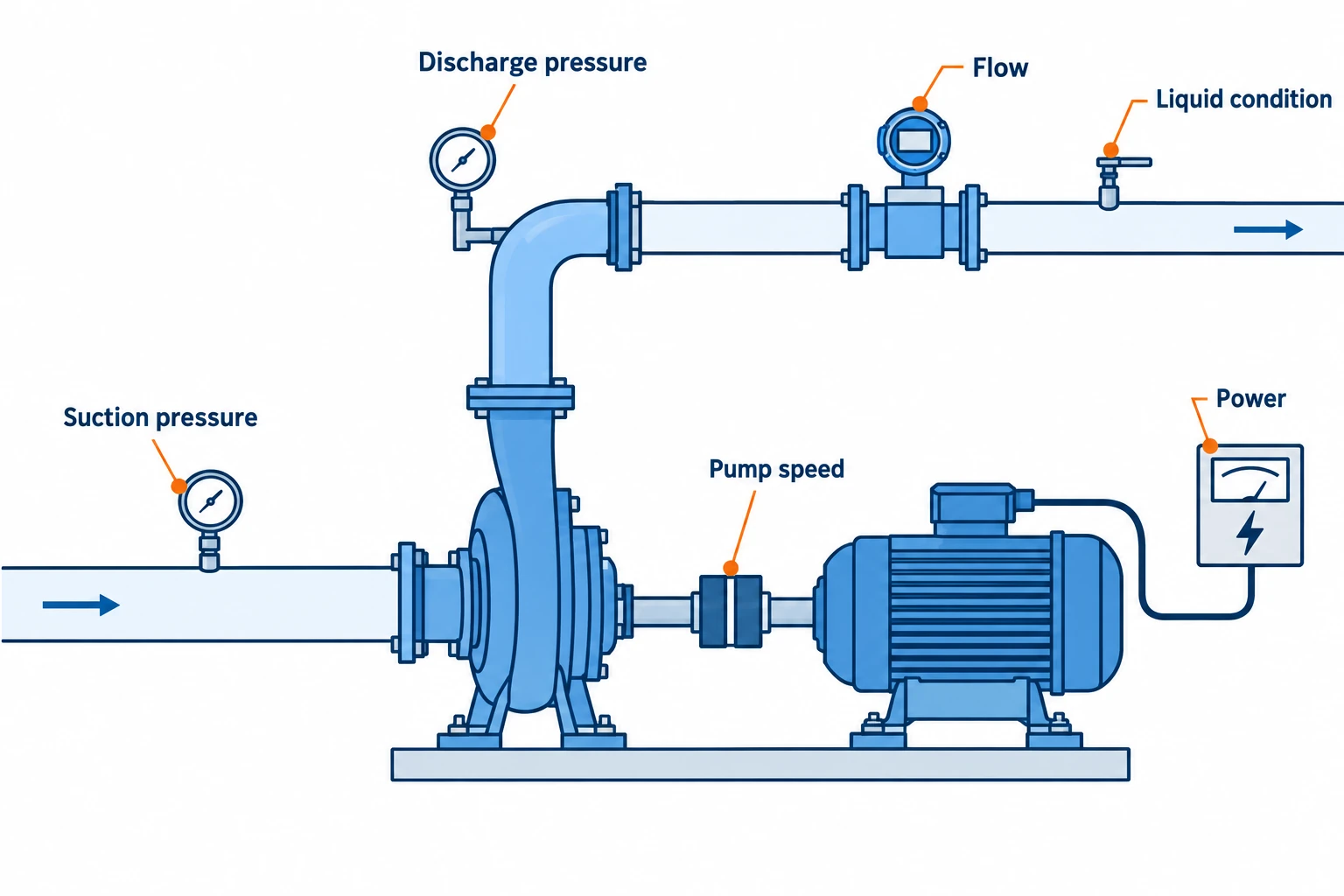

Field data are most useful when the readings are taken at the same operating state and their reference locations are known. Record the control state and process condition with the measurements; otherwise, a precise-looking comparison can still describe the wrong system condition.
| Field input | Why it matters | Record with it |
|---|---|---|
| Flow | Locates process output and helps place the duty on the curve | Meter type, location and stability |
| Suction pressure | Supports developed-head and suction-condition review | Gauge location, datum, units and liquid level/pressure state |
| Discharge pressure | Supports developed-head and system comparison | Gauge location, valve position and downstream condition |
| Actual speed | Identifies the applicable pump performance basis | RPM or verified drive frequency and motor/pole information as applicable |
| Liquid temperature and properties | Affects vapor pressure, density, viscosity and interpretation | Composition and the property basis used |
| Motor input or shaft power | Supports load and efficiency trend checks | Measurement method and operating state |
Convert Field Measurements Into an Engineering Check
The goal is not to create a second calculator inside the article. Use the field record to build a traceable comparison between the real system duty and the correct pump data.
The ANSI pump technical resources provide the next evidence layer. Use calculation tools to establish duty, then use pump-specific curves and drawings to verify the selected equipment.
NPSH, Fluid Properties and Controls Are Boundary Checks
NPSH
NPSHa comes from the connected system; NPSHr or NPSH3 comes from the applicable pump performance/test basis. Compare them at consistent flow, speed, impeller, liquid and reference conditions. Do not use one universal margin for every service.
Fluid properties
Density affects pressure/head conversion and power. Viscosity can alter hydraulic performance. Vapor pressure affects suction calculations. Solids, entrained gas, crystallization and corrosive chemistry can introduce additional application limits.
Controls
Throttling primarily changes system resistance. Variable speed changes the pump curve. Bypass arrangements change flow distribution. The correct control strategy depends on the actual system curve, process requirement and equipment limits.
From Pump-System Symptoms to an Engineering Decision
Symptoms such as low flow, unstable pressure, vibration, seal distress, high power or cavitation-like noise are starting points—not diagnoses. The same symptom can have more than one cause. Use the operating-point evidence to narrow the problem before changing equipment.
For a broader inspection sequence, continue with the pump system assessment workflow.
When the Problem Becomes a Replacement Verification Question
A hydraulic match at one point does not prove that a replacement pump is interchangeable. When the existing pump is worn, obsolete, repeatedly off-duty, or no longer suited to the process, keep the hydraulic review connected to the dimensional and mechanical evidence.
If the installed equipment is an ITT Goulds 3196 or Flowserve Durco Mark III, continue with the dedicated Goulds 3196 replacement verification or Durco Mark III replacement verification. Those pages own fitment, replacement evidence and RFQ intent.
Frequently Asked Questions
The operating point is where the pump performance curve intersects the system curve for the current system condition. It can move when pump speed, impeller condition, valve resistance, liquid level, process pressure, fouling or other system conditions change.
The pump curve describes the head the pump can develop across flow for a stated configuration and test basis. The system curve describes the head the connected installation requires across flow. Their intersection defines the installed operating point.
Throttling primarily increases system resistance and changes the system curve. The pump then operates at a new intersection on its available performance curve, subject to the pump and system limits.
No. Affinity relationships can support a pump-side estimate for suitable similarity conditions, but the installed operating point still depends on the actual system curve, static head, liquid properties, controls and pump-specific limits.
Start with measured flow, suction pressure, discharge pressure, actual speed, liquid temperature/properties and motor input or shaft power. Record valve positions, control state, active branches, vessel levels and the measurement references at the same time.
Yes. Destination minus source pressure contributes to the flow-independent head term. A pressure change moves the system requirement even when pipework and valve resistance remain unchanged.
