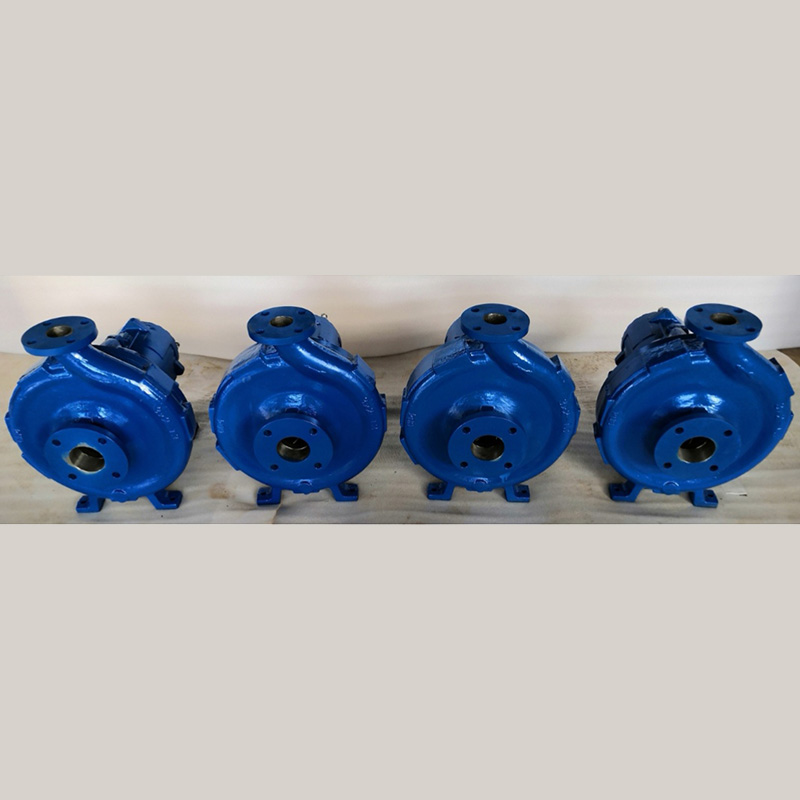

Mark III Pump Parts
Product Details
| Application | Chemical processing, petrochemical refining, corrosive chemical transfer, pulp & paper mill liquors, reverse vane impeller applications, high-temperature services, MRO replacement programs, EPC project procurement |
| Flow Rate | Up to 7,500 GPM (1,703 m3/h) |
| Head Range | Up to 990 ft (302 m) |
| Temperature | -73 degrees C to 370 degrees C (-100 degrees F to 700 degrees F) |
| Materials | CF8M (316SS), CD4MCuN (Duplex), CN7M (Alloy 20), WCB (Carbon Steel), Hastelloy B, Hastelloy C-276, Nickel 200, Titanium Grade Pd7B, Zirconium 702 |
| Pressure Rating | Up to 27 bar (400 PSIG) |
1.Our pumps could be 100% interchangeble with leading enterprise’s Mark III series.
2.The wet ends material like Titanium, Nickel, Hastelloy C, A20, CD4M, 316SS, Cast Steel etc are all available.

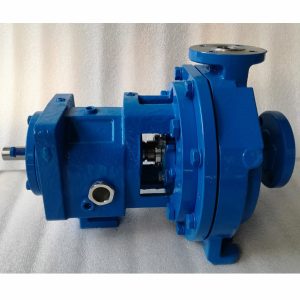

The mark III chemical technique pump is a horizontal, give up suction, unmarried level, centerline discharge, centrifugal pump. It is an “ANSI” trendy pump, this means that it conforms to the ASME B73.1M ANSI standard.
Application:
• Acid transfer
• Brine
• Chemical processing
• Petrochemical processing
• Corrosive services
• Food and beverage processing
• Hydrocarbon processing
• Pharmaceuticals Polymers
• Pulp and paper
• Seawater
• Slurries
• Solvents
• Steel and primary metals
• Water and wastewater treatment
Operating Parameters
• Flows to 1680 m 3 /h
• Heads to 215 m
• Pressures to 27 bar
• Temperatures from -73°C to 370°C
Available Size:6’’-16’’
|
Part Name |
Material |
||||||
|
Ductile Iron |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
|
Casing |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
|
Impeller |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
|
Cover |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
|
Frame |
Ductile Iron |
||||||
|
Bearing Housing |
Ductile Iron |
||||||
|
Adaptor |
Ductile Iron |
||||||
|
Shaft |
316SS/4140 |
||||||
|
Sleeve |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
