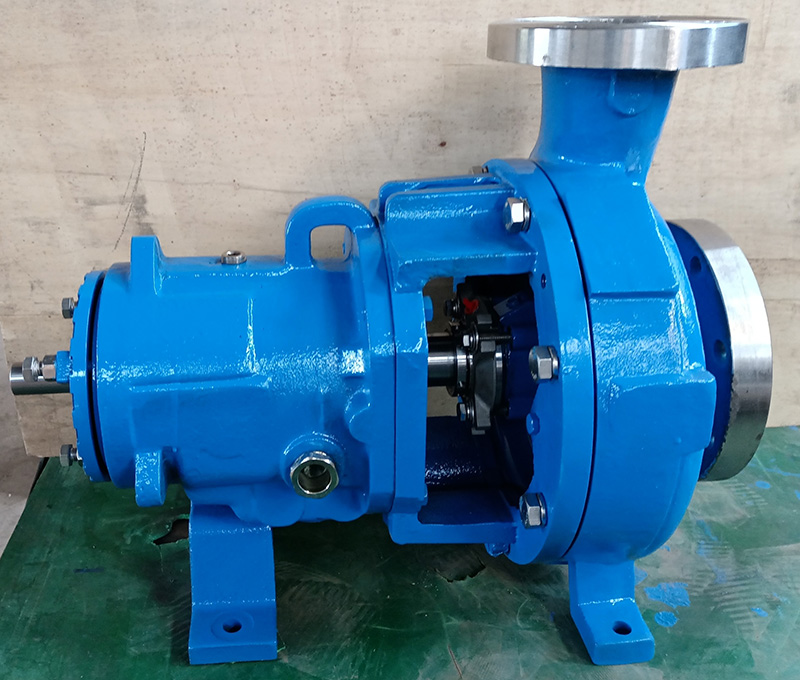

Mark III Pump Specs
Product Details
| Application | Chemical processing, petrochemical refining, corrosive chemical transfer, pulp & paper mill liquors, reverse vane impeller applications, high-temperature services, MRO replacement programs, EPC project procurement |
| Flow Rate | Up to 7,500 GPM (1,703 m3/h) |
| Head Range | Up to 990 ft (302 m) |
| Temperature | -73 degrees C to 370 degrees C (-100 degrees F to 700 degrees F) |
| Materials | CF8M (316SS), CD4MCuN (Duplex), CN7M (Alloy 20), WCB (Carbon Steel), Hastelloy B, Hastelloy C-276, Nickel 200, Titanium Grade Pd7B, Zirconium 702 |
| Pressure Rating | Up to 27 bar (400 PSIG) |
The mark 3 chemical system pump presents high-quality hydraulic overall performance, unrivaled reliability and coffee overall price of possession. Conforming to ASME(ANSI) B73.1, the mark 3 consists of many tested reliability- and overall performance-enhancing functions.
The resultant advantages are:
• Renewable, high-efficiency overall performance over the lifestyles of the pump with the opposite vane impeller.
• Most advantageous, predictable seal chamber pressures which are re-hooked up after each impeller putting.
• Maximal mechanical seal lifestyles because of a super seal.
• Sturdy shaft and bearing designs that minimize shaft deflection and extend mechanical seal and bearing life.
• Fast and accurate impeller setting with the industry’s maximum innovative external impeller adjustment mechanism.
• In-shop reverse vane impeller adjustment with the best pump that takes full gain of the lower back pull-out design.
|
Part Name |
Material |
||||||
|
Ductile Iron |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
|
Casing |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
|
Impeller |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
|
Cover |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
|
Frame |
Ductile Iron |
||||||
|
Bearing Housing |
Ductile Iron |
||||||
|
Adaptor |
Ductile Iron |
||||||
|
Shaft |
316SS/4140 |
||||||
|
Sleeve |
316SS |
CD4MCu |
Alloy 20 |
Nickel |
Hastelloy C |
Titanium |
|
