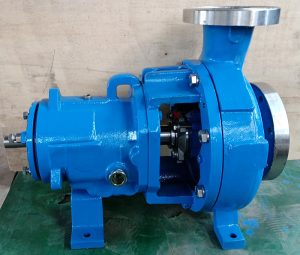

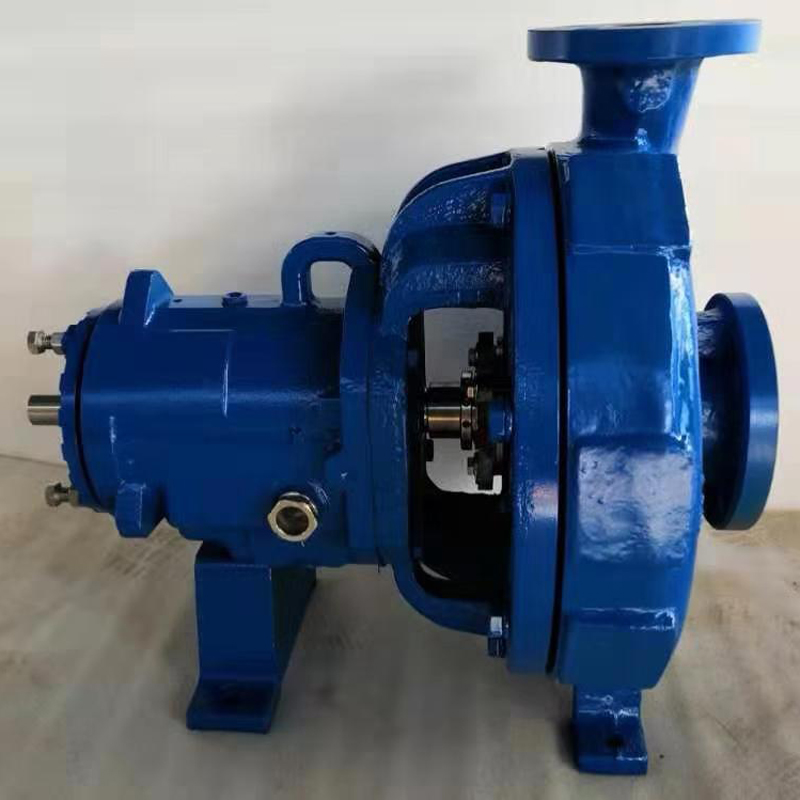

Titanium Mark III Equivalent Pump

Mark III is recognized international as the most suitable name in ANSI chemical method pumps. The advanced design and precision manufacture effects in a rugged, heavy-responsibility pump that allows you to provide reliable, reliable standard overall performance in the most stressful services.

1.Application:

• Acid transfer

• Brine

• Chemical processing

• Petrochemical processing

• Corrosive services

• Food and beverage processing

• Hydrocarbon processing

• Pharmaceuticals Polymers

• Pulp and paper

• Seawater

• Slurries

• Solvents

• Steel and primary metals

• Water and wastewater treatment

2.Operating Parameters

• Flows to 1680 m 3 /h

• Heads to 215 m

• Pressures to 27 bar

• Temperatures from -73°C  to 370°C

3. Available Size:6’’-16’’

4.

5.Features and Benefits

A.Unique Reverse Vane Impeller is the only impeller design that offers repeatable pump performance throughout the life of the pump.

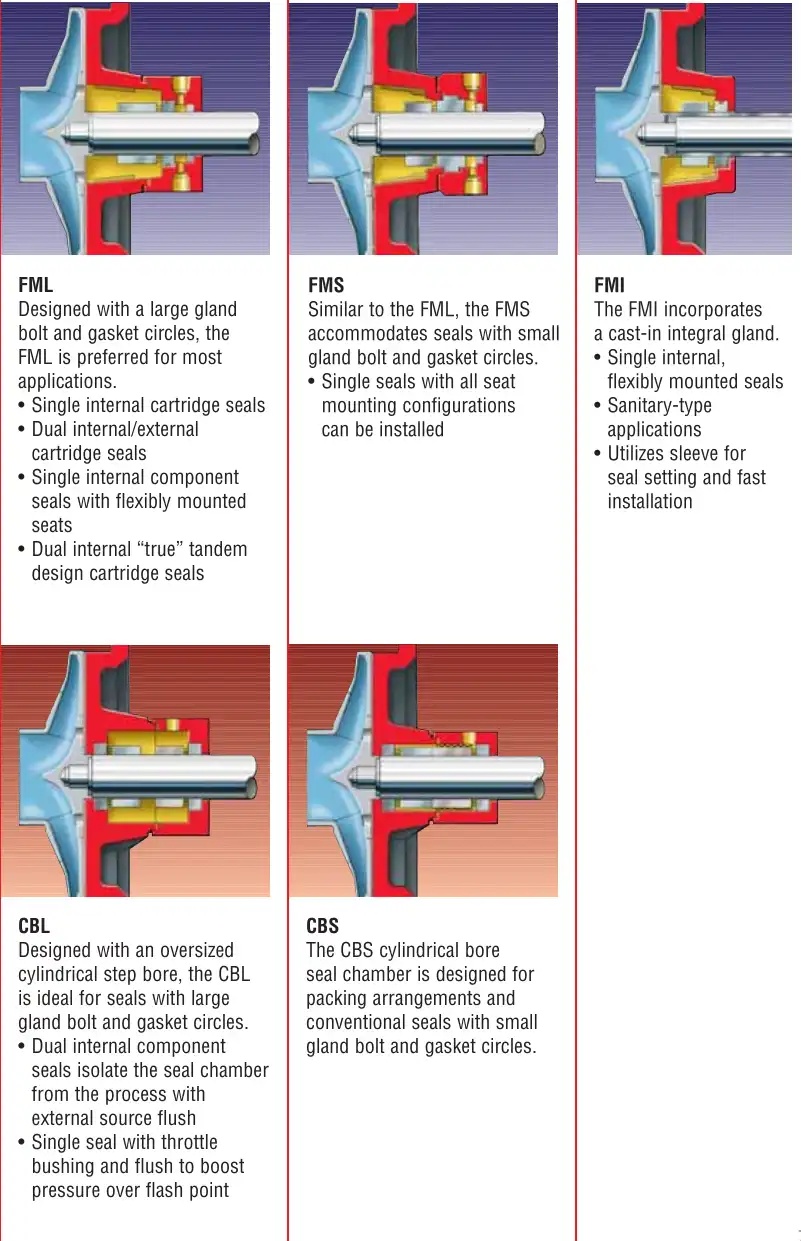

B.Seal Chambers feature innovative flow modifiers to extend seal life and provide advanced

self-flushing capability.

C.External Micrometer Impeller Adjustment accurately sets impeller clearance in 20 seconds, in the shop or in the field.

D.Largest Shaft and Bearing Components in standard ASME pumps extend bearing life and reduce shaft deflection and vibration.

E.Back Pull-out Design allows removal of rotating element without removing casing, piping or motor.

F.Heavy-duty Pump End and Drive End Bearings are selected for long life and reliability.
