ANSI-flanged paper stock / process · replacement review
Goulds 3180Replacement Pumps & Parts
Confirm the installed 3180 family before choosing a size. Build a quotation request around the exact frame, hydraulic duty, material, impeller and sealing arrangement, or send the existing specification.
- Model / nameplate
- Pump size
- Material and seal
- Datasheet / GA drawing

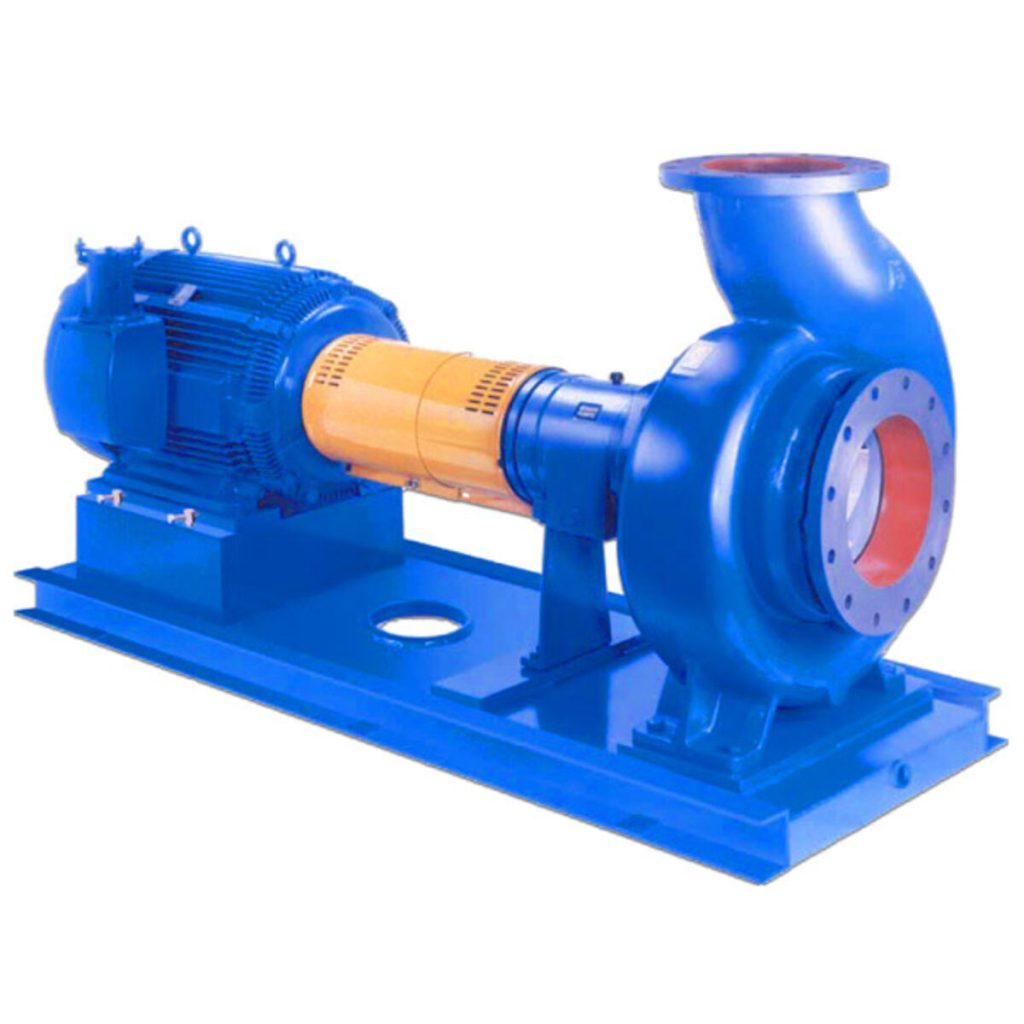

Illustrative configuration visual · verify installed equipmentREPLACEMENT REVIEW33 verified sizesFrame S · M · L · XL
OEM family reference
OEM 3180 Family Reference Performance
OEM family reference envelope. Final replacement performance depends on pump size, speed, impeller diameter, hydraulic configuration and operating duty.
Independent replacement reviewNo OEM affiliation or authorization implied.
33 verified sizesFrame and size shown in the published reference list.
Complete pump or partsPump without motor can be requested explicitly.
Start with your filesDatasheet, nameplate, GA, curve, BOM or photos.
Fast replacement finder
Start with the installed pump.
Set the model, configuration and intended supply scope. The selection follows you into the RFQ so an expert buyer does not have to type the same information twice.
Verified source matrix
Verified 3180 frame and size matrix
The published list confirms frame and size combinations. Component availability and final configuration remain subject to engineering review.
| Verified size | Frame | RFQ action |
|---|---|---|
| 3x6-12 | Frame S | |
| 4x6-12 | Frame S | |
| 6x8-12 | Frame S | |
| 8x8-12 | Frame S | |
| 3x6-14 | Frame S | |
| 4x6-14 | Frame S | |
| 4x6-16 | Frame S | |
| 6x8-14 | Frame M | |
| 8x8-14 | Frame M | |
| 10x10-14 | Frame M | |
| 12x12-14 | Frame M | |
| 6x8-16 | Frame M | |
| 4x6-19 | Frame M | |
| 6x10-16 | Frame L | |
| 8x10-16 | Frame L | |
| 10x12-16 | Frame L | |
| 14x14-16 | Frame L | |
| 4x8-19 | Frame L | |
| 6x10-19 | Frame L | |
| 8x10-19 | Frame L | |
| 10x12-19 | Frame L | |
| 6x10-22 | Frame L | |
| 8x10-22 | Frame L | |
| 12x14-19 | Frame XL | |
| 16x16-19 | Frame XL | |
| 10x12-22 | Frame XL | |
| 12x14-22 | Frame XL | |
| 14x16-22 | Frame XL | |
| 18x18-22 | Frame XL | |
| 6x10-25 | Frame XL | |
| 8x12-25 | Frame XL | |
| 10x14-25 | Frame XL | |
| 20x20-25 | Frame XL |
Component availability and final construction are confirmed against the installed pump, OEM part number or drawing before quotation.
Choose the commercial scope
Complete pump or only what failed.
Each route carries the selected scope into one shared RFQ instead of sending the buyer to a generic contact form.
Complete replacement pump
Define the installed 3180, size, duty, material, seal, base and driver scope.
Casing / impeller scope
Review wet-end components from the exact size, part number, drawing or sample dimensions.
Sideplate / stuffing box
Confirm the installed wear and sealing arrangement before quoting an individual component.
Drawing-based replacement
Send the nameplate, GA, sectional drawing, curve, BOM or current specification.
Material · seal · duty
Paper-stock duty needs real process data
A family label does not establish the impeller, clearance system, pressure class or seal arrangement. State the actual stock consistency, solids, chemistry and duty so the proposed scope can be checked.
Inputs engineering will review
- Material
- Impeller style
- Seal arrangement
- Sideplate / wear parts
- Flow and head
- Speed
- Black liquor / slurry
- Stock consistency
Verification path
This page separates buyer-provided inputs from verified source data. It does not claim stock, dimensional interchangeability, certifications or performance for an unreviewed configuration.
Identify
Confirm the installed family, model and nameplate.
Match
Check size, configuration and commercial scope.
Review
Assess drawings, duty, materials and sealing.
Quote
Confirm the proposed supply and exclusions.
Already have a pump datasheet or drawing?
Tell us what supporting evidence you have: nameplate, GA, sectional drawing, curve, BOM, existing quote, specification or clear equipment photos.
Pump Replacement Guidance
Confirm the installed family before selecting a replacement.

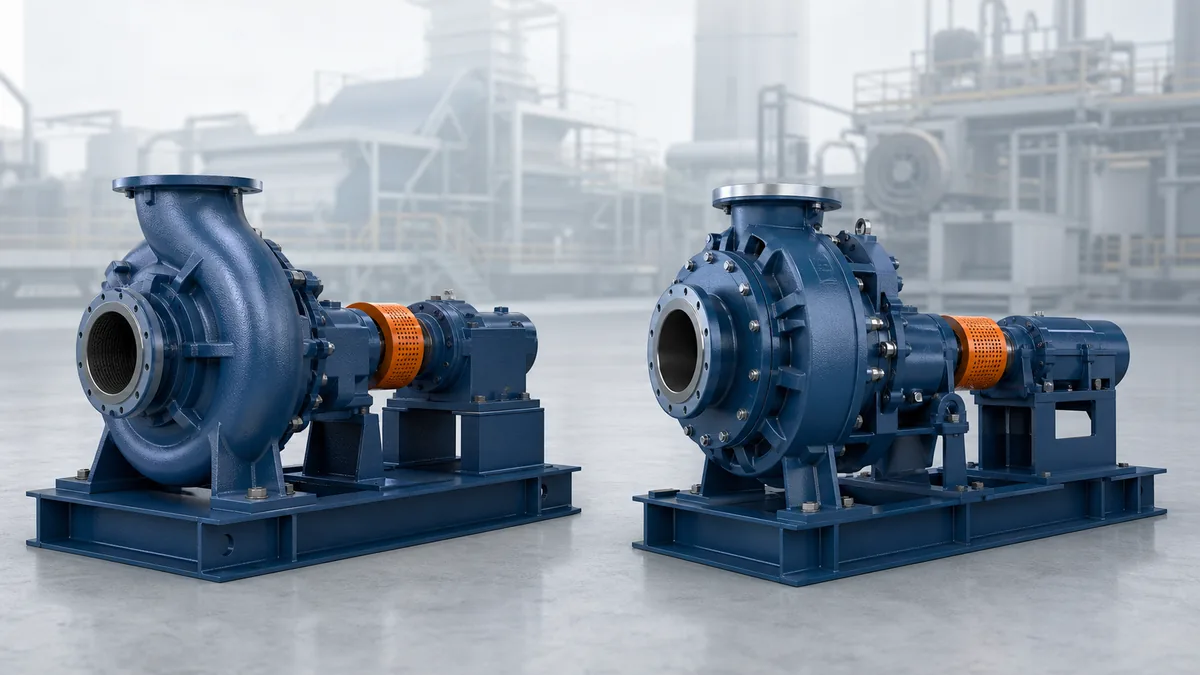

Use the nameplate, duty and existing documents to confirm the 3180 family, material and sealing arrangement. If the family is uncertain, use the Goulds 3175 vs 3180 selection guide before requesting a replacement.
3180 / 3185 check
3180 and 3185 may share hydraulic or dimensional context in some configurations, but flange drilling, dimensions and component details can differ. Confirm the installed family before quotation.
Impeller configuration
Record whether the installed arrangement is open, enclosed or another verified configuration.
Wear and seal system
Identify sideplate, stuffing-box, seal chamber or dynamic-seal evidence before quotation.
Shared dimensions
Eleven sizes overlap between the current 3175 and 3180 reference lists. Size alone cannot identify the family; compare the model-specific evidence in the 3175 vs 3180 paper-stock pump guide.
Buyer objections
Frequently asked questions
Can a pump size identify whether I have a 3175 or 3180?
Eleven verified sizes overlap between the current 3175 and 3180 reference lists. Confirm the installed model and nameplate before selecting a replacement configuration.
Does the 3180 matrix confirm casing or sideplate availability?
No. It confirms frame and size listings. The component columns contain no row-specific evidence.
Can I submit a parts request without complete duty data?
Yes. Send the model, size, part number, material, quantity and any drawing or damaged-part photo you have.
Can I send an existing quote or specification?
Upload the existing quote, specification, nameplate, drawing or photos directly with the request.
