3180
StandardANSI · Imperial
Goulds 3180
- ANSI flange configuration
- Imperial / ANSI installation reference
- Paper-stock & process applications
Aftermarket replacement · Goulds 3185
Goulds 3185 Replacement Pumps & Parts
Already have a 3185 in service? We match replacement pumps and selected parts to its size, ISO/JIS interfaces, operating duty, materials and seal arrangement before confirming fit.
ISO / JIS
flange drilling
flange drilling
Metric dimensions
& fasteners
& fasteners
Open or enclosed
impeller configurations
impeller configurations
Model / Nameplate · Pump Size · Duty Point · Material · Seal Arrangement
3185 Metric installation check
Quick model identification
Check your installed pump
Both serve paper-stock and process duties, but their installation references differ. Match the nameplate and flange standard first: 3180 is ANSI / Imperial; this page covers 3185 ISO/JIS / Metric installations.
3185
StandardISO / JIS · Metric
This 3185 page
Goulds 3185
- ISO or JIS flange drilling
- Metric fasteners
- Metric dimensional interfaces
Published family reference
3185 OEM Family Reference
Use these values as a family-level reference only. Final replacement performance depends on pump size, speed, impeller diameter, hydraulic configuration and operating duty.
Capacity · up to26,000 GPM6,000 m³/h
Head · up to410 ft125 m
Temperature · up to446°F230°C
Pressure · up to232 PSIG16 bar
OEM family reference envelope — not a quotation guarantee. Verify the exact size, operating point, materials and installed interfaces before replacement selection.
Procurement shortcut
Fast 3185 Replacement Finder
Start with the information a buyer usually already has. The selection below builds a concise replacement brief and carries it into the RFQ.
Installed-pump identification
3185 Published Size Matrix
Published size listing is used to identify an existing installation. Current replacement availability and final configuration remain subject to engineering review.
| Frame | Published Sizes |
|---|---|
| S | 3×6-12 4×6-12 6×8-12 8×8-12 3×6-14 4×6-14 4×6-16 |
| M | 6×8-14 8×8-14 10×10-14 12×12-14 6×8-16 4×6-19 |
| L | 6×10-16 8×10-16 10×12-16 14×14-16 4×8-19 6×10-19 8×10-19 10×12-19 6×10-22 8×10-22 |
| XL | 12×14-19 16×16-19 10×12-22 12×14-22 14×16-22 18×18-22 6×10-25 8×12-25 10×14-25 20×20-25 |
Replacement engineering
Why 3185 Replacement Requires a Metric Installation Check
Pump size is only the first identifier. The installed metric interfaces and actual duty should be verified before a replacement is confirmed.
01
Flange Standard
ISO / JIS drillingDo not assume an ANSI-flanged installation can be replaced without checking nozzle drilling, orientation and mating interfaces.
02
Metric Dimensions
Shaft & installation interfacesConfirm shaft, coupling, baseplate and critical installation dimensions from the existing GA, drawing or site measurement.
03
Hydraulics
Size alone is not enoughVerify flow, head, speed and impeller configuration against the required operating point rather than selecting from nameplate size alone.
04
Material & Seal
Match the actual serviceConfirm process liquid, temperature, solids/fibres, material and sealing arrangement before quotation.
ⓘDo not identify a 3185 replacement from pump size alone. Metric shaft, flange and seal-area interfaces should also be verified.
Hydraulic configuration
Impeller / Service Configuration
Use the installed impeller style and service conditions as part of the replacement review, especially for fibrous, slurry and recycle duties.

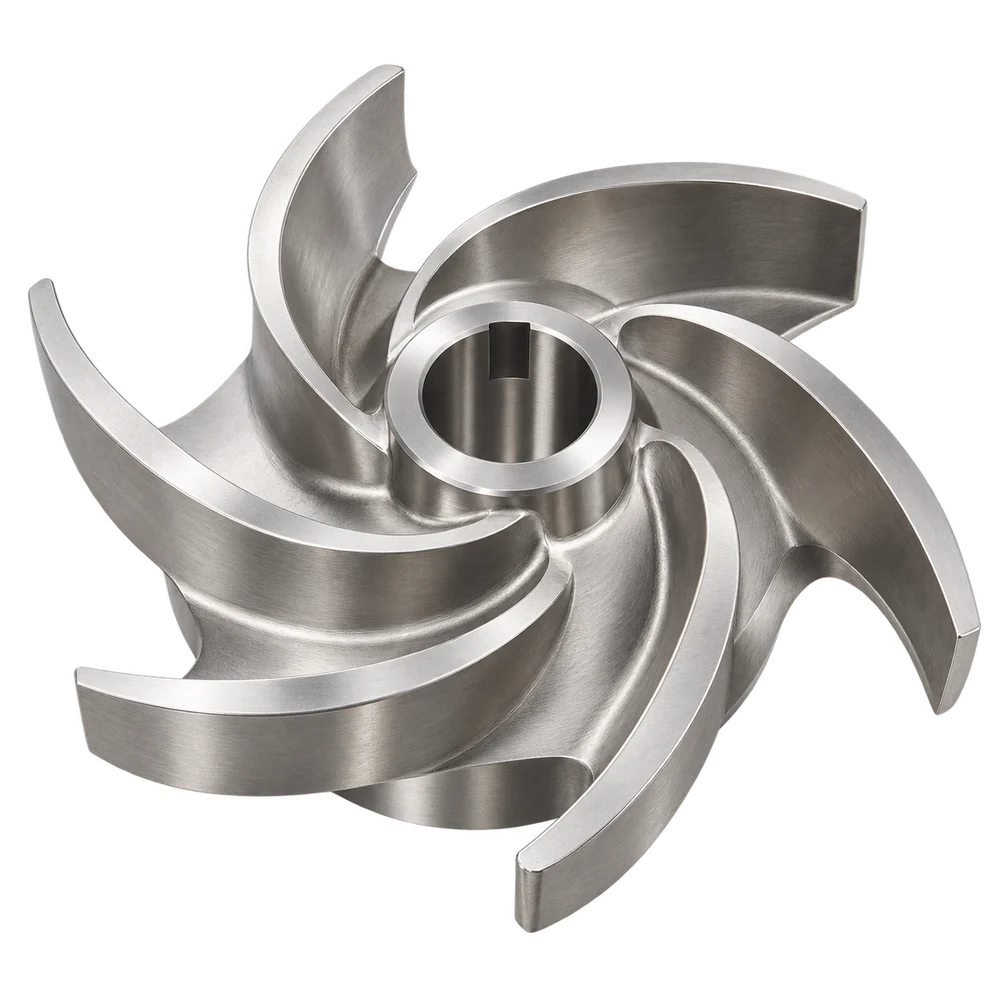

Open Impeller
For fibrous, slurry and selected stock-handling applications where the installed configuration requires an open hydraulic design.

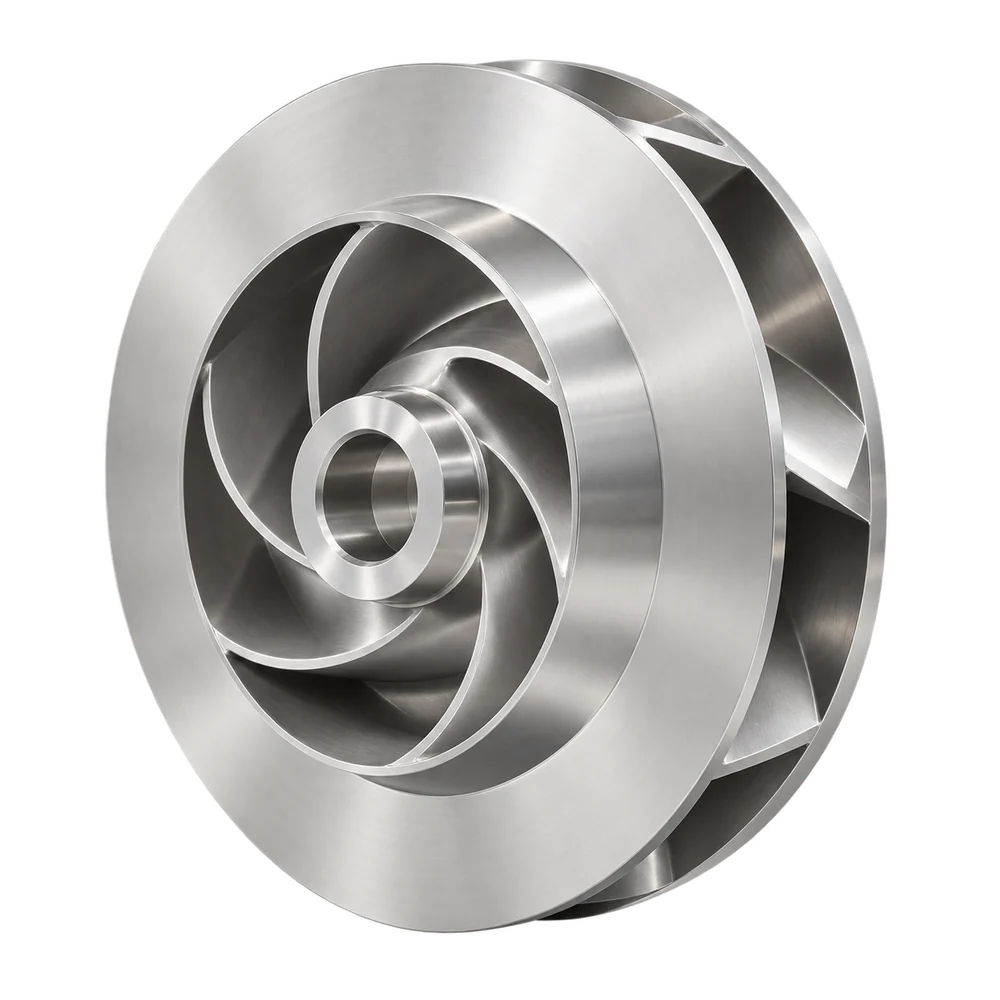

Enclosed Impeller
Configuration-dependent process duties. Verify existing hydraulic geometry, impeller diameter and required operating point.

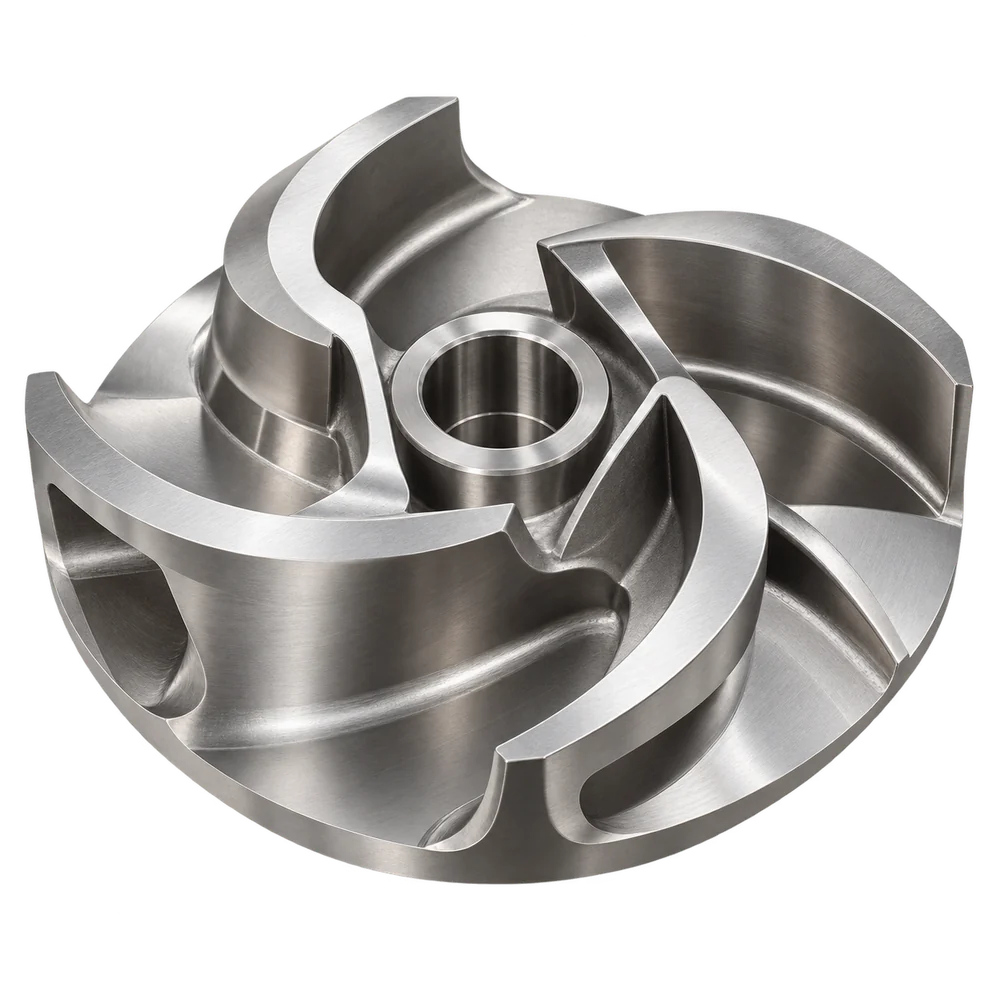

Special Fibre / Recycle Configuration
Review the installed impeller geometry before replacement selection instead of assuming interchangeability from size alone.
Supported supply scope
What Can We Supply?
Replacement pumps and selected metallic parts are reviewed against the verified 3185 installation, material and duty.

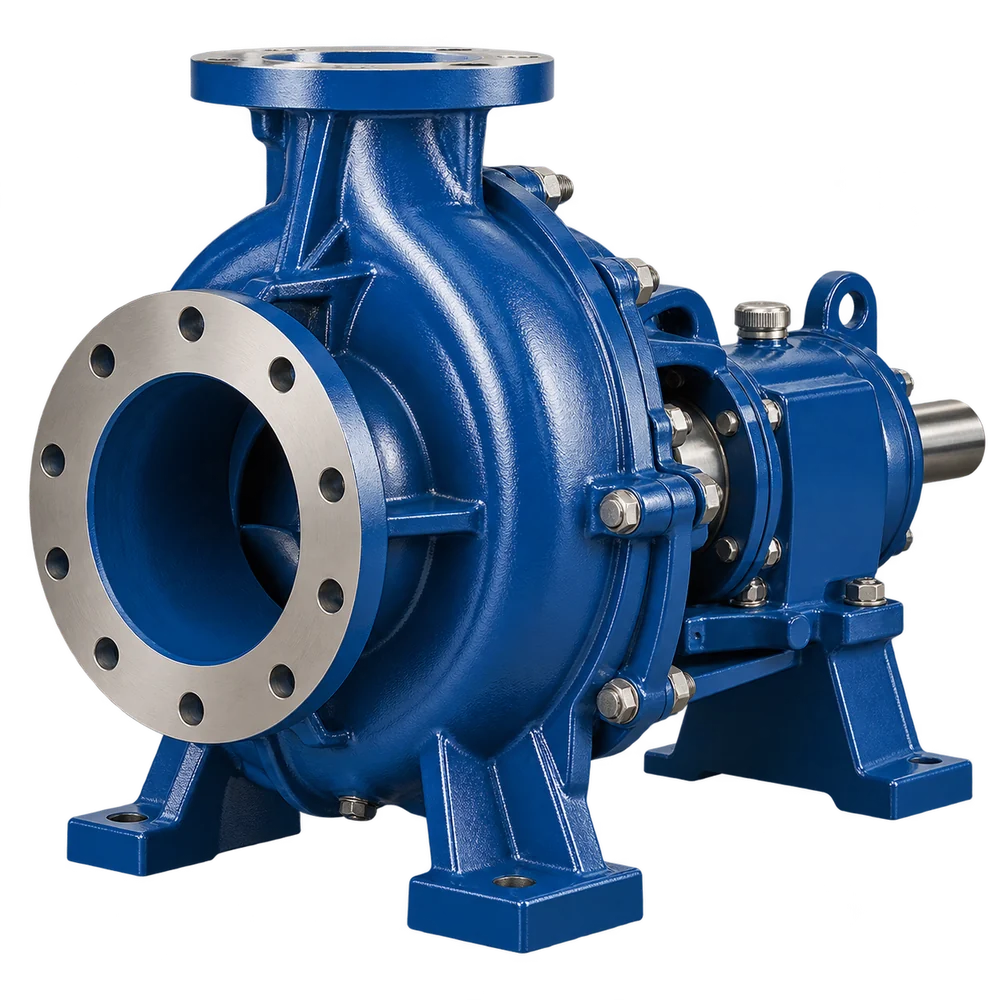

Complete Replacement Pump
Complete or bare-pump scope based on verified installation and duty.

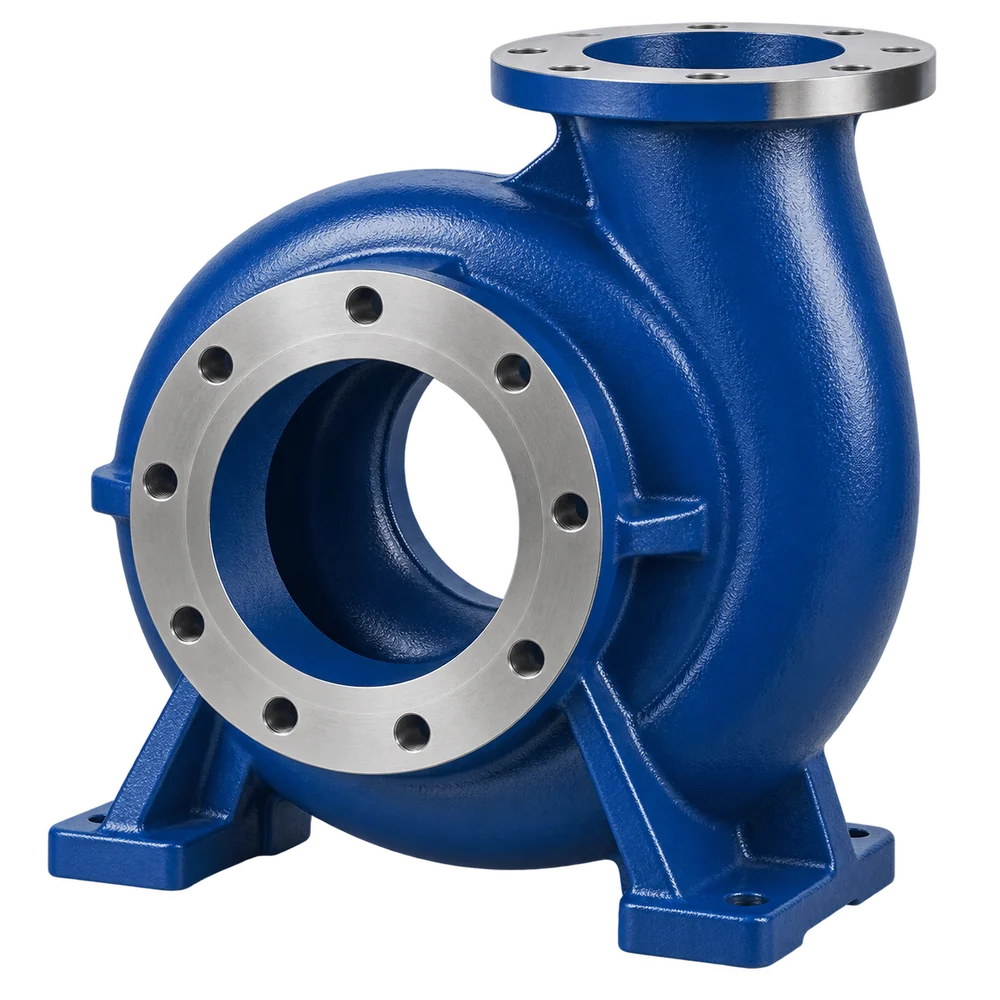

Casing
Reviewed against size, material and dimensional reference.

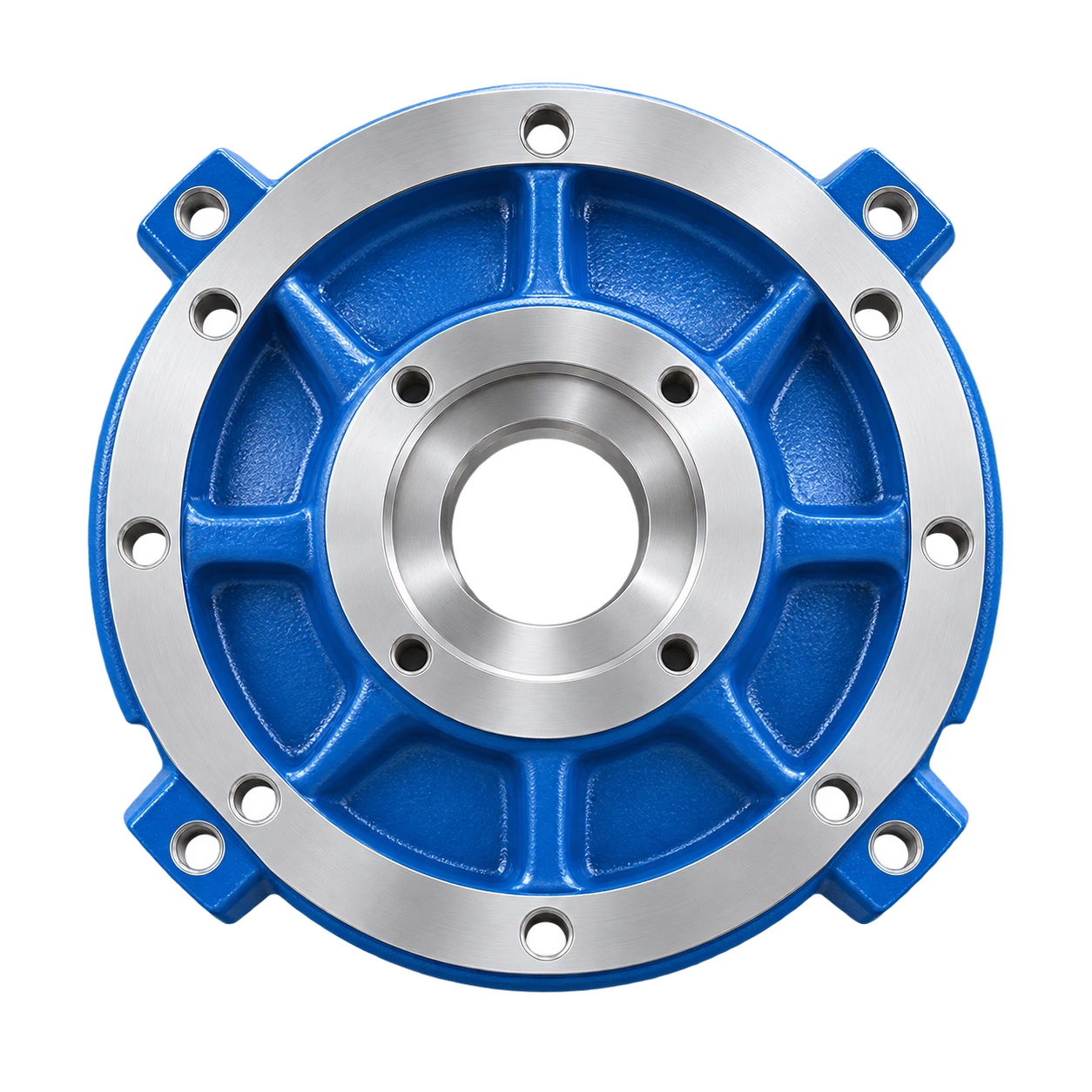

Cover
Selected metallic cover components from verified drawing or sample.
Impeller
Matched to size, configuration, material and hydraulic requirement.

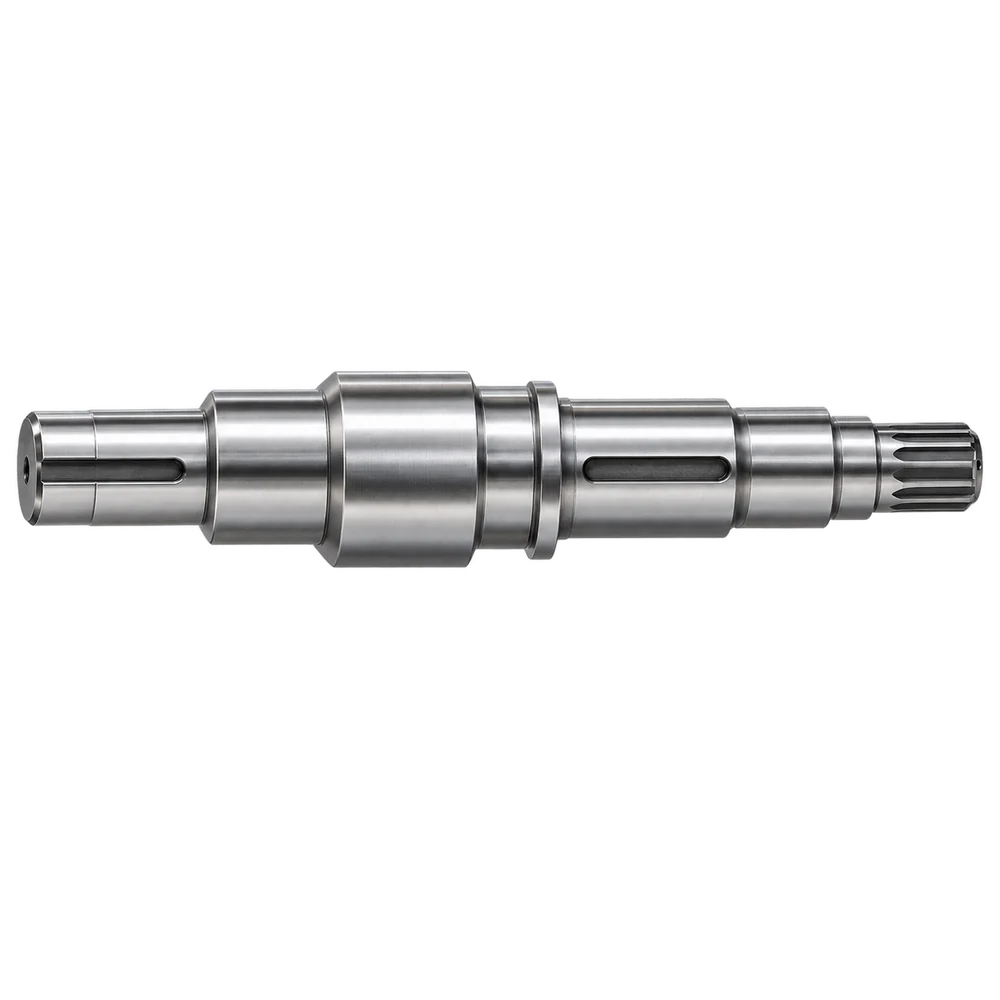

Shaft
Reviewed against the exact metric shaft configuration.

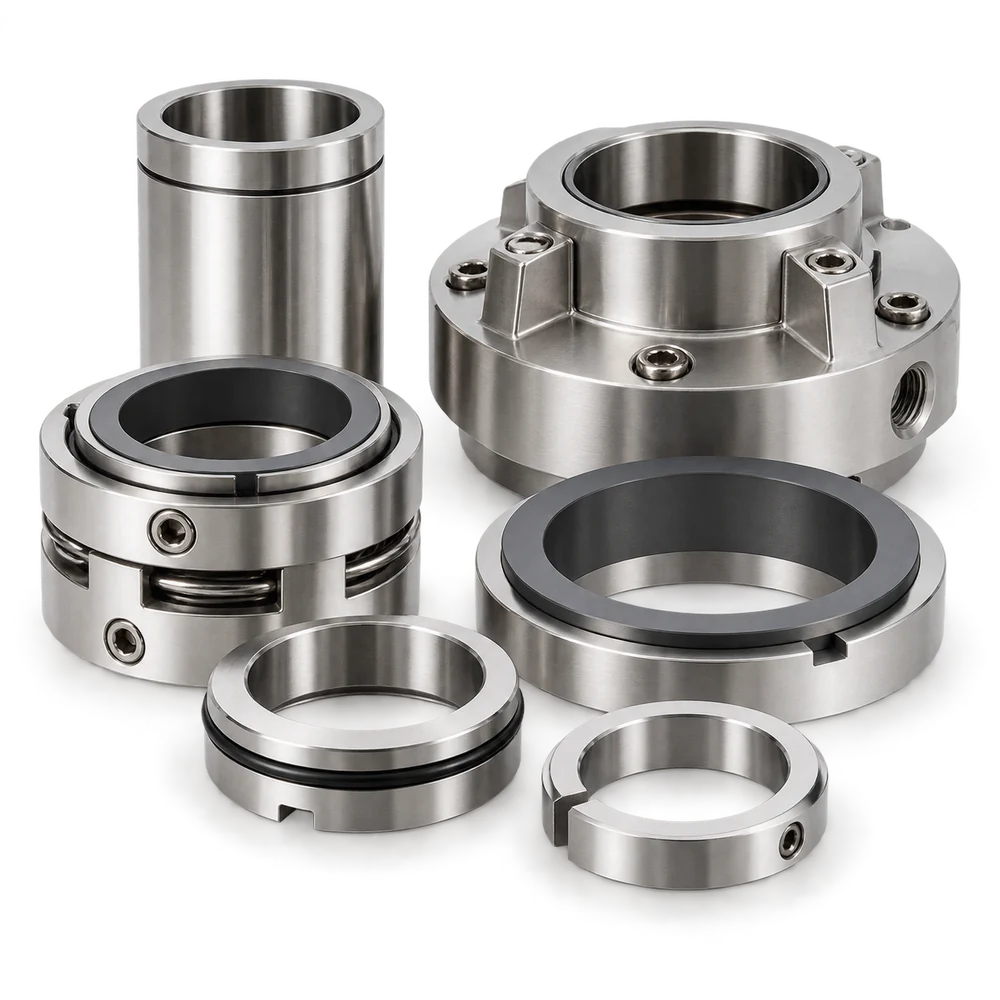

Metallic Seal Components
Selected metallic mechanical-seal-related components from verified data.
Installation review

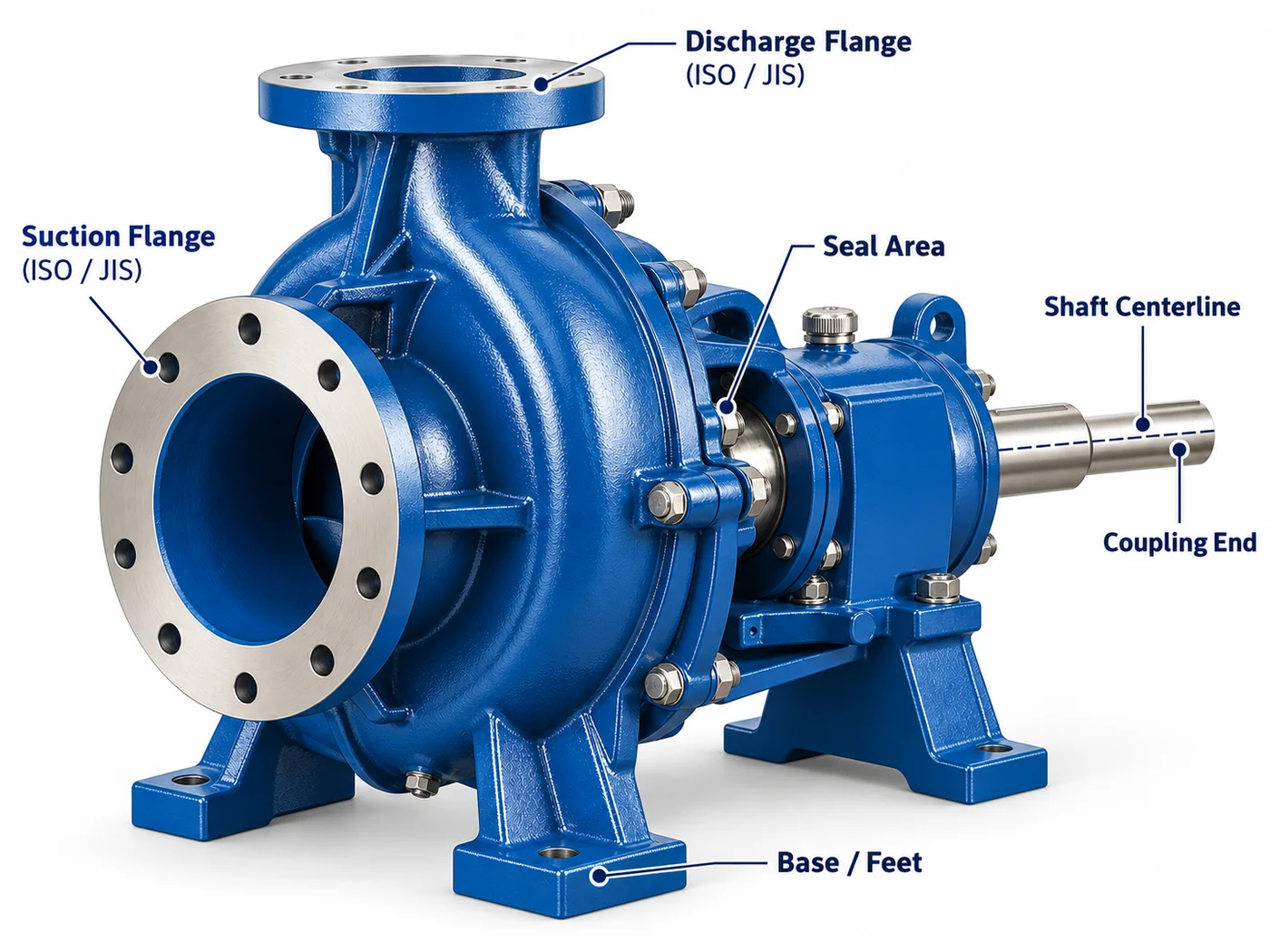

3185 Installation Interface Check
When the nameplate is incomplete, installation interfaces often provide the fastest route to a reliable replacement review.
Already have a 3185 installed?
Start with what is on the nameplate.
Send the model / size, required supply scope and any available duty or installation information. The engineering review can continue from there.
Procurement questions
Frequently Asked Questions
They belong to the same paper-stock / process family, but the published installation standards differ. Identify the installed model, flange drilling and metric interfaces before choosing a replacement path.
Do not assume direct interchangeability. Confirm flange drilling, shaft, seal-area dimensions, installation drawing and hydraulic configuration first.
Start with the nameplate and published pump size. If the nameplate is unavailable, send installation photographs, nozzle dimensions and existing documentation.
Pump size, flow, head, speed, process liquid, temperature, material, seal arrangement and installation data are preferred. Existing drawings or datasheets can reduce manual entry.
The supported standalone scope on this page is casing, cover, impeller, shaft and selected metallic mechanical-seal components, subject to dimensional and material verification.
3185 Replacement RFQ
Send the installed model, size and scope. Add engineering data or files if available; our team will review fit before quotation.
PDF, XLS/XLSX, DOC/DOCX, JPG/JPEG or PNG · up to 8 files
