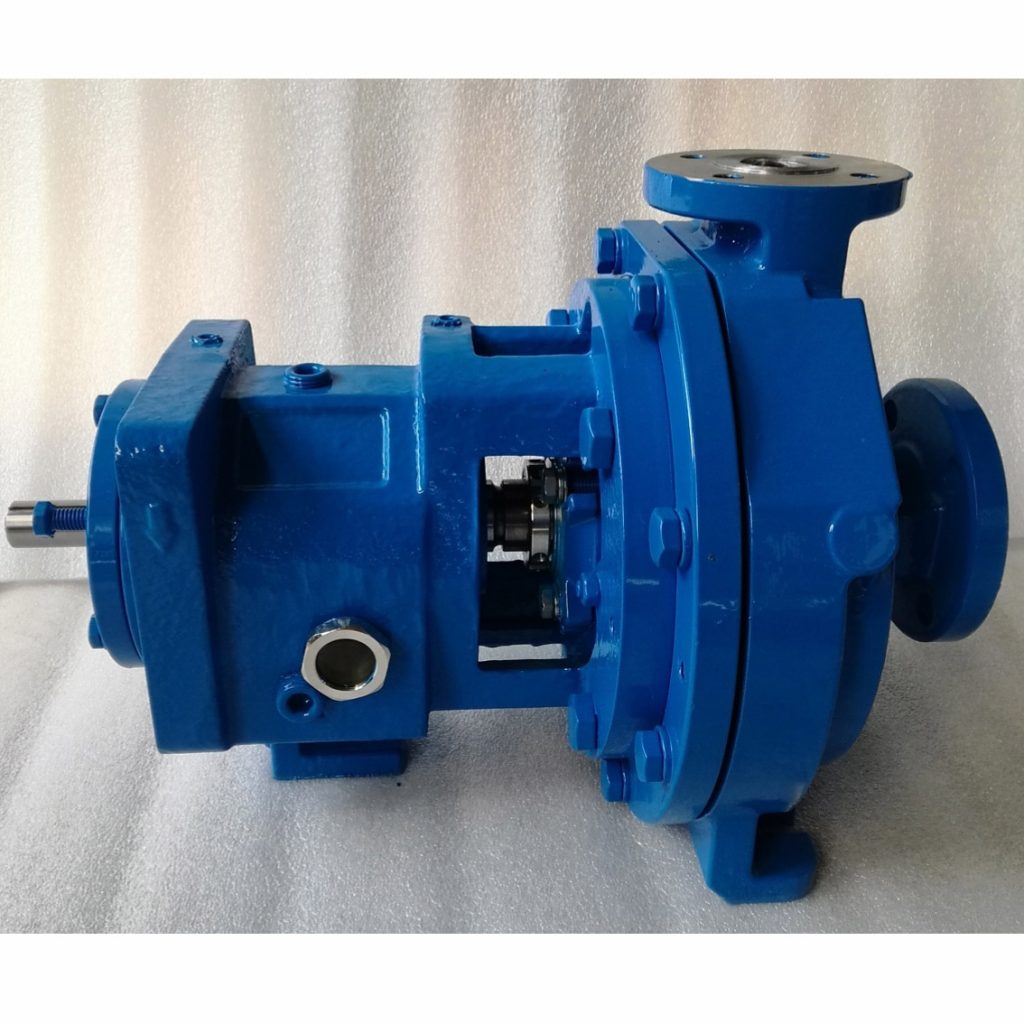

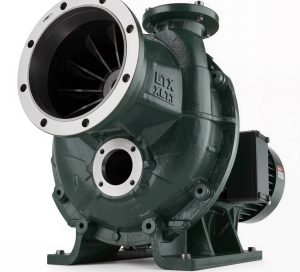

Pump 3196 Manual

Name: Pump 3196 Manual
Brand: Yingsiman
Availability: InStock

100% dimensionally interchangeable with Goulds 3196 -- no piping, baseplate, or coupling modifications required. Full STX/MTX/LTX/XLTX frame coverage.

Complete exotic alloy wet-end portfolio: Titanium Grade 2, Hastelloy C-276, CD4MCuN duplex, Nickel 200, Zirconium 702. All castings with full material traceability.

30-50% shorter lead time vs OEM (6-8 weeks standard, 2-3 weeks expedited). Emergency MRO parts shipped within 48 hours from priority stock.

Contact Now

Application	Chemical processing, petrochemical refining, acids transfer, caustic soda, solvents, corrosive chemical handling, high-temperature fluid transfer, pulp & paper liquors, water & wastewater treatment, mining slurries, food & beverage processing, pharmaceutical manufacturing
Flow Rate	Up to 7,000 GPM (1,590 m3/h)
Head Range	Up to 730 ft (223 m)
Temperature	Up to 700 degrees F (371 degrees C)
Materials	CF8M (316SS), CD4MCuN (Duplex), CN7M (Alloy 20), WCB (Carbon Steel), Hastelloy B, Hastelloy C-276, Nickel, Titanium Grade 2, Zirconium 702
Pressure Rating	ANSI Class 300, up to 375 PSIG (2,586 kPa)

1.Our pumps could be 100% interchangeble with leading enterprise’s Mark III series.

2.The wet ends material like Titanium, Nickel, Hastelloy C, A20, CD4M, 316SS, Cast Steel etc are all available.

The 3196 ANSI Series is available in a extensive variety of sizes, capacities and materials to match sincerely any manner-fluid software. Capacities to 7000 GPM (1590 m³ /h) Heads to 730 feet (223 m) Temperatures to 700° F (371° C) Pressures to 375 PSIG (26 bar)

1.Application:

Chemical Processing

General Industries

Mining

Water Resources

Power Generation

Primary Metals

Pulp and Paper

Oil and Gas

2.Available Size:6’’-15’’

Part Name	Material
Part Name	Ductile Iron	316SS	CD4MCu	Alloy 20	Nickel	Hastelloy C	Titanium
Casing		316SS	CD4MCu	Alloy 20	Nickel	Hastelloy C	Titanium
Impeller		316SS	CD4MCu	Alloy 20	Nickel	Hastelloy C	Titanium
Cover		316SS	CD4MCu	Alloy 20	Nickel	Hastelloy C	Titanium
Frame	Ductile Iron
Bearing Housing	Ductile Iron
Adaptor	Ductile Iron
Shaft	316SS/4140
Sleeve		316SS	CD4MCu	Alloy 20	Nickel	Hastelloy C	Titanium

4.Impeller

Designed for long-term, maintainable performance and minimum hydraulic loads for

maximum reliability.

Casing

• Top centerline discharge for air handling, self-venting.

• Class 150 pumps have Class 300 wall thickness as standard.

• Back pull-out design.

• Integral feet.

Seal Chamber

Designed for favorable seal environment —proper heat dissipation and lubrication of seal faces.

The design must also be able to handle tough services: liquids containing solids, air or vapors.

Power End

Designed for optimum bearing life, effective oil cooling, and minimum shaft deflection. Onboard

condition monitoring provides early warning of potential failures, before they occur.

5.Fully open impeller is the best design for the chemical process industries services. Ideally suited for corrosives and abrasives, handles solids and stringy fibers with ease. Allows for simple restoration of clearances when wear takes place. Back pump-out vanes reduce pressure on the shaft seal, reduce axial thrust on the bearings.

Our seal chambers allow seals to run cooler with better face lubrication. Keep solids, air and vapors away from the seal faces for extended seal life.

Our power ends design maximizes reliability and Mean Time Between Failure (MTBF). Severe-duty bearings increase bearing life 2-5 times, while onboard condition monitor gives visible indication of general pump health
