GLOBAL ANSI PUMP REPLACEMENT SOLUTIONS100% INTERCHANGEABLE REPLACEMENT

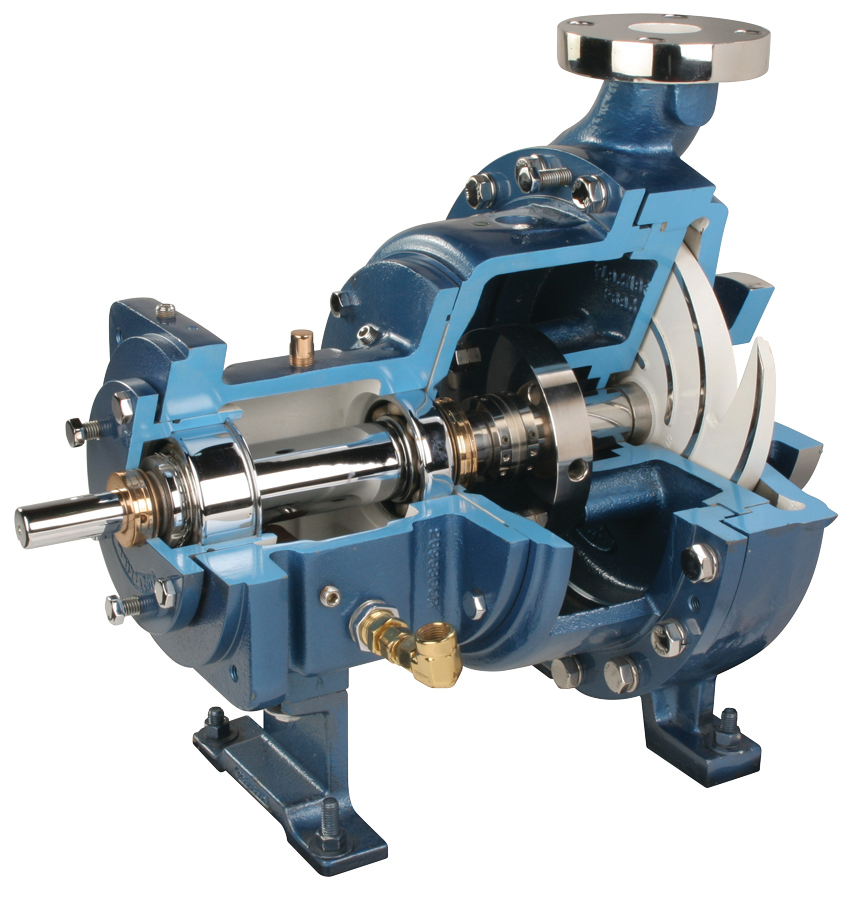

100% Interchangeable Peerless 8196 Replacement Pump
Replace corresponding Peerless 8196 PERFORMER pump sizes and frame configurations with a dimensionally interchangeable G196 ANSI process pump. Match the existing size and frame, then verify hydraulic duty, materials and seal arrangement before quotation.
- ANSI / ASME B73.1
- Frame / Group Matched
- Dimensional Fit Review
- Engineering Verified
For corresponding ANSI/ASME B73.1 pump size and frame configurations. Final hydraulic duty, material, seal arrangement and site-specific interfaces are verified before quotation.
- 01
EXISTING PUMPPeerless 8196
- 02
MATCHSize + STP / MTP / LTP / XLTP
- 03
VERIFYDimensions + Duty + Material
- 04
SUPPLYComplete G196 / Parts
EXISTING PUMP MODEL FINDER
Which Peerless 8196 Frame Are You Replacing?
Select the identification shown on the existing pump, then enter the exact pump size. Unverified configurations do not produce a fabricated match.
| OEM frame / group | OEM size | G196 frame | G196 size | Status |
|---|---|---|---|---|
| STP | Enter nameplate size | Confirm from approved cross-reference | Confirm from approved cross-reference | DATA REQUIRED |
| MTP | Enter nameplate size | Confirm from approved cross-reference | Confirm from approved cross-reference | DATA REQUIRED |
| LTP | Enter nameplate size | Confirm from approved cross-reference | Confirm from approved cross-reference | DATA REQUIRED |
| XLTP | Enter nameplate size | Engineering confirmation | Engineering confirmation | ENGINEERING REVIEW REQUIRED |
MTP
- OEM size
- Enter nameplate size
- G196 frame
- Confirm from approved cross-reference
- G196 size
- Confirm from approved cross-reference
DATA REQUIRED
LTP
- OEM size
- Enter nameplate size
- G196 frame
- Confirm from approved cross-reference
- G196 size
- Confirm from approved cross-reference
DATA REQUIRED
XLTP
- OEM size
- Enter nameplate size
- G196 frame
- Engineering confirmation
- G196 size
- Engineering confirmation
ENGINEERING REVIEW REQUIRED
Engineering boundary
Dimensional interchangeability is verified for the corresponding ANSI size and frame configuration against the reviewed installation data.
ENGINEERING PROOF
What We Verify for Dimensional Interchangeability
Final fit is confirmed against the selected pump size, approved drawing and available installation data before order.
Suction flange / centerlineSize, location and piping relationship
Discharge flange / centerlineOrientation, height and connection
Shaft centerlineDriver and coupling alignment
Pump feetMounting and baseplate relationship
Shaft / coupling interfaceDrive interface and guard clearance
Baseplate relationshipConfirmed for the selected configuration
Dimensional Match
- ANSI size
- Frame / group
- Nozzle relationship
- Mounting interface
- Drive interface
Hydraulic Match
- Flow
- Head
- Speed
- Impeller
- Curve review
Construction Match
- Wet-end material
- Shaft / sleeve
- Seal chamber
- Mechanical seal
- Power end
HYDRAULIC DUTY VERIFICATION
Confirm Your Duty Point
Dimensional interchangeability and hydraulic selection are verified separately. Enter the available duty data for engineering curve review.
MATERIALS & CONSTRUCTION
Select Required Material
Company-level material capability is shown here. Final availability and exact grade for the selected pump size and service are confirmed during engineering review.
G196 SERIES REFERENCE ENVELOPE
Series limits, not every-size promises
Series maximum values are reference envelopes. Final performance is confirmed on the reviewed curve for the selected pump size, speed and impeller diameter.
- capacity
- Up to 7,000 US GPM / 1,590 m³/h
- head
- Up to 730 ft / 223 m
- pressure
- Up to 375 psig / 2,586 kPa
- temperature
- Up to 700°F / 371°C
- frames
- STX / MTX / LTX / XLTX
- standard
- ASME/ANSI B73.1
- impeller
- Open impeller / external adjustment
PRIMARY SUPPLY
Complete G196 Replacement Pump for Peerless 8196
The reviewed model, duty, material, seal and installation interface package defines the quotation scope.
- Complete pump assembly
- Reviewed wet-end construction
- Seal arrangement
- Curve and technical documentation
- Motor and coupling review
- Approved drawing confirmation
HOW WE VERIFY YOUR REPLACEMENT
From Existing Pump to Reviewed Quotation
- 01Identify
Nameplate, model, size, frame/group and drawing.
- 02Confirm
Dimensions, duty, material, seal and site interfaces.
- 03Define Scope
Complete pump or reviewed replacement parts.
- 04Receive Proposal
Confirmed model, technical scope and quotation.
TECHNICAL FAQ
Peerless 8196 Replacement Questions
Can I replace a Peerless 8196 without changing the existing ANSI installation?
Corresponding ANSI size and frame configurations follow a dimensional replacement route. Final nozzle, centerline, mounting, shaft and baseplate interfaces are checked against the approved drawing before order.
Which Peerless STP, MTP, LTP or XLTP frame matches the G196 replacement route?
Send the existing frame and pump size. The proposed G196 frame is released from the approved cross-reference for that exact configuration; unverified entries remain marked Data Required.
Do you verify the existing 8196 performance curve before quotation?
Yes. Flow, head, speed, impeller diameter and suction conditions are reviewed separately from dimensional interchangeability.
What data should I send for an 8196 replacement quote?
Send the nameplate, existing size and frame, duty point, liquid, temperature, material, seal arrangement and a GA drawing when available.
Can you supply complete pumps and replacement parts?
Yes. The complete G196 replacement pump is the primary scope; reviewed wet-end, power-end and other replacement parts can also be quoted from the OEM part number.
RELATED ENGINEERING RESOURCES
Continue Your Technical Review
ENGINEERING RFQ
Request a Peerless 8196 Replacement Quote
Your finder, duty and material selections are carried into this engineering request. Upload a nameplate, GA drawing or datasheet when available.
Engineering review before quotation. Final dimensional fit, hydraulic duty, materials, seal arrangement and site interfaces are confirmed from the submitted data.
