A Peerless 8196 replacement should be approved against the installed pump’s interfaces and actual process duty—not selected by model name alone. Before ordering a complete pump or replacement parts, confirm the size and frame, mounting and shaft interfaces, seal arrangement, hydraulic operating point, materials, and required documentation.

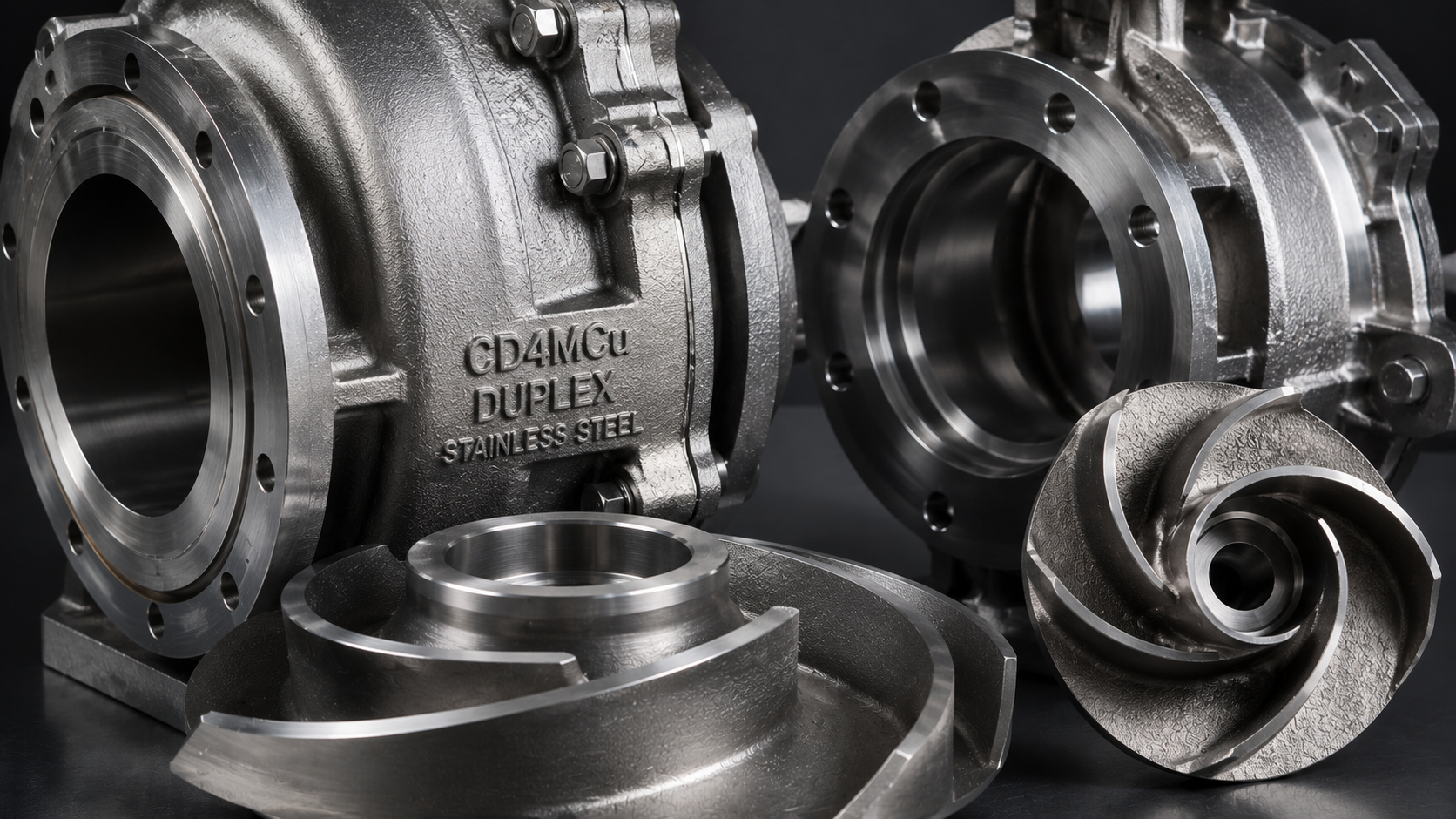

Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
This guide provides a practical review path for maintenance, engineering, and procurement teams. It does not publish an assumed Peerless-to-G196 size mapping: exact cross-reference results must be supported by the applicable approved drawing and size/frame data.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
What “interchangeable” means for a Peerless 8196
ASME B73.1 defines dimensional interchangeability for pumps with the same standard dimension designation, including mounting dimensions, suction and discharge nozzle size and location, input shaft, baseplate, and foundation bolt holes. That standard dimensional scope does not by itself confirm identical hydraulic performance, internal parts, materials, seal fit, motor selection, or suitability for a particular process.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
For a project overview, see our ANSI B73.1 interchangeability and component-compatibility guide. Treat every retained or replacement interface as a separate check.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
Peerless 8196 configuration details to capture
Record the full nameplate information and the pump’s actual configuration before comparing a proposed replacement. Peerless identifies the 8196 as an ANSI B73.1 process pump with an open impeller and integral back pump-out vanes; its published options and features also include different frame groups, shaft constructions, seal arrangements, and selected casing options. Verify the installed unit from its records and physical inspection rather than assuming every family option is present.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
- Identification: full pump size and model, serial number, nameplate photograph, and available outline or sectional drawing.
- Frame and power end: identify STP, MTP, LTP, or XLTP where applicable; record shaft diameter/construction, bearing frame, coupling, motor frame, speed, and rotation.
- Wet end: record casing and impeller material, impeller design and trim if known, nozzle orientation and facing, casing cover, and any wear-related features.
- Seal arrangement: document the seal type, chamber configuration, sleeve, flush/quench plan, and connection locations. Peerless lists Big Bore and Taper Bore seal-chamber options; confirm the actual installed configuration.
- Options: check for a Casing Wear Extender. Peerless lists this option for 3×4-13 and 4×6-13 MTP sizes and all XLTP sizes; confirm against the pump record and drawing.
These are identification cues, not a compatibility claim. For example, matching the frame-group name does not establish that a replacement shaft, bearing housing, seal chamber, impeller, or casing will fit.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
Fitment review matrix
| Review area | Capture from the installed unit | Verify for the proposed pump or part |
|---|---|---|
| Dimensional | Nozzle size, centerline/elevation, facing, baseplate and anchor pattern, shaft centerline, coupling dimensions | Compare approved outline and interface drawings; identify any field piping or baseplate changes |
| Mechanical | Frame group, shaft, sleeve, bearing housing, rotation, motor and coupling details | Confirm the exact assembly and part revision; check clearances and service access against approved documentation |
| Hydraulic | Required and observed flow/head, speed, impeller trim, liquid density/viscosity, suction conditions | Review the proposed curve at the required operating range and confirm motor power and NPSH basis for the application |
| Seal and materials | Seal type/chamber/plan, wetted materials, temperature, concentration, contaminants, solids and failure history | Confirm seal interfaces and material suitability for the actual liquid and operating conditions; specify traceability where required |
| Quality records | Existing drawings, inspection history, prior modifications and outage constraints | Agree drawing approval, dimensional inspection, material records, pressure testing and balance documentation where applicable |
Verify hydraulic duty separately
Provide design and, where available, actual operating flow and differential head, speed, liquid temperature, density, viscosity, solids, and suction pressure or level. Ask for the proposed pump curve and identify the expected operating range. A replacement that fits the baseplate can still operate away from the required duty or require a different impeller trim or motor selection.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
Do not copy the old impeller trim automatically. First establish whether the process duty and system have changed, then review the proposed curve and operating limits with the responsible pump engineer.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
Parts replacement or complete pump?
A component-level review may be appropriate when the retained power end or wet end has a known condition and the required mating interfaces can be verified. A complete-pump review is prudent when the shaft, bearings, casing, baseplate, seal arrangement, or operating duty has changed or cannot be confirmed. State clearly which original components will remain in service and who is responsible for validating those interfaces.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
What to send before requesting a quote
- Nameplate photo, complete pump size, serial number, and frame identification.
- Outline/sectional drawings and photographs of the installed pump, baseplate, coupling, piping, and seal connections.
- Required flow/head and operating data, including liquid properties and suction conditions.
- Seal details, motor nameplate data, rotation, and any known modifications.
- Required materials, inspection/traceability records, testing documents, delivery scope, and outage date.
If a size/frame mapping or interface cannot be verified from the available records, mark it for engineering review instead of inferring a match. For a broader review path, see the Peerless 8196 replacement pump information and our OEM part-number cross-reference process.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
Frequently asked questions
Does ASME B73.1 make every Peerless 8196 component interchangeable?
No. Its dimensional interchangeability provisions apply to pumps sharing the same standard dimension designation and specified interfaces. Hydraulic duty, internal components, materials, and seal details still need project-specific verification.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
Which information is most useful for a replacement review?
Start with the complete nameplate, frame and size, drawings or field dimensions, required duty point, liquid conditions, seal arrangement, and motor/coupling data.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
Can I reuse the existing impeller trim?
Only after the required duty, speed, and proposed pump curve have been reviewed. An existing trim is not proof that a replacement will meet the current system requirement.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
What should happen if the exact cross-reference is unclear?
Pause the part selection and request an engineering review using the pump size, frame, serial/nameplate details, and approved drawings. Do not substitute a guessed size or frame mapping.
Image note: the featured visual is illustrative and does not show a verified Peerless 8196 pump or dimensional drawing.
Sources and technical references
- Peerless 8196 product information and published features/options
- Peerless Series 8196 Process Pump Installation, Operation and Maintenance Manual
- ASME B73.1 standard scope and dimensional interchangeability summary
Request a documented Peerless 8196 fitment review. Send the nameplate, available drawings, and operating duty for cross-reference review.
