DISCONTINUED OEM REPLACEMENTGLOBAL ANSI PUMP REPLACEMENT SOLUTIONS100% INTERCHANGEABLE REPLACEMENT

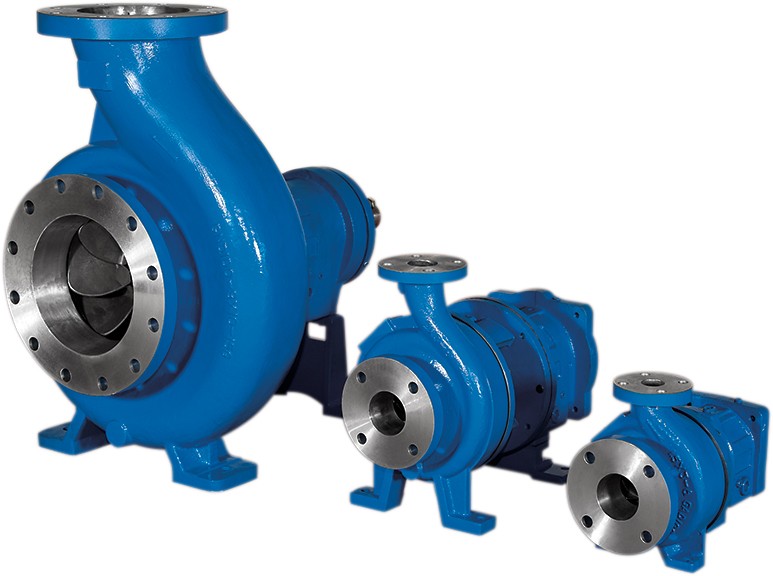

100% Interchangeable Replacement for Discontinued Pentair Aurora 3550
Pentair currently lists the Aurora 3550 ASME/ANSI B73.1 process pump as discontinued. Match the existing 3550 group and size to a corresponding G196 replacement route, then verify hydraulic duty, materials, seal arrangement and installation interfaces.
- ANSI / ASME B73.1
- Frame / Group Matched
- Dimensional Fit Review
- Engineering Verified
For corresponding ANSI/ASME B73.1 pump size and frame configurations. Final hydraulic duty, material, seal arrangement and site-specific interfaces are verified before quotation.
- 01
EXISTING PUMPDiscontinued Aurora 3550
- 02
MATCHGroup + Pump Size
- 03
VERIFYFit + Duty + Construction
- 04
SUPPLYComplete G196 / Parts
EXISTING PUMP MODEL FINDER
Which Aurora 3550 Group Are You Replacing?
Select the identification shown on the existing pump, then enter the exact pump size. Unverified configurations do not produce a fabricated match.
| OEM frame / group | OEM size | G196 frame | G196 size | Status |
|---|---|---|---|---|
| S | Enter nameplate size | Confirm from approved cross-reference | Confirm from approved cross-reference | DATA REQUIRED |
| M | Enter nameplate size | Confirm from approved cross-reference | Confirm from approved cross-reference | DATA REQUIRED |
| L | Enter nameplate size | Confirm from approved cross-reference | Confirm from approved cross-reference | DATA REQUIRED |
| XL | Enter nameplate size | Engineering confirmation | Engineering confirmation | ENGINEERING REVIEW REQUIRED |
M
- OEM size
- Enter nameplate size
- G196 frame
- Confirm from approved cross-reference
- G196 size
- Confirm from approved cross-reference
DATA REQUIRED
L
- OEM size
- Enter nameplate size
- G196 frame
- Confirm from approved cross-reference
- G196 size
- Confirm from approved cross-reference
DATA REQUIRED
XL
- OEM size
- Enter nameplate size
- G196 frame
- Engineering confirmation
- G196 size
- Engineering confirmation
ENGINEERING REVIEW REQUIRED
Engineering boundary
Pentair’s published page identifies the 3550 as discontinued and lists S, M/L and XL frame families. The exact G196 size and frame remain subject to the approved cross-reference and drawing review.
ENGINEERING PROOF
What We Verify for Dimensional Interchangeability
Final fit is confirmed against the selected pump size, approved drawing and available installation data before order.
Suction flange / centerlineSize, location and piping relationship
Discharge flange / centerlineOrientation, height and connection
Shaft centerlineDriver and coupling alignment
Pump feetMounting and baseplate relationship
Shaft / coupling interfaceDrive interface and guard clearance
Baseplate relationshipConfirmed for the selected configuration
Dimensional Match
- ANSI size
- Frame / group
- Nozzle relationship
- Mounting interface
- Drive interface
Hydraulic Match
- Flow
- Head
- Speed
- Impeller
- Curve review
Construction Match
- Wet-end material
- Shaft / sleeve
- Seal chamber
- Mechanical seal
- Power end
HYDRAULIC DUTY VERIFICATION
Confirm Your Duty Point
Dimensional interchangeability and hydraulic selection are verified separately. Enter the available duty data for engineering curve review.
MATERIALS & CONSTRUCTION
Select Required Material
Company-level material capability is shown here. Final availability and exact grade for the selected pump size and service are confirmed during engineering review.
G196 SERIES REFERENCE ENVELOPE
Series limits, not every-size promises
Series maximum values are reference envelopes. Final performance is confirmed on the reviewed curve for the selected pump size, speed and impeller diameter.
- capacity
- Up to 7,000 US GPM / 1,590 m³/h
- head
- Up to 730 ft / 223 m
- pressure
- Up to 375 psig / 2,586 kPa
- temperature
- Up to 700°F / 371°C
- frames
- STX / MTX / LTX / XLTX
- standard
- ASME/ANSI B73.1
- impeller
- Open impeller / external adjustment
PRIMARY SUPPLY

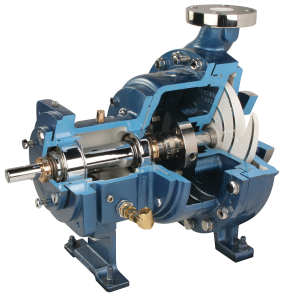

Complete G196 Replacement Pump for Aurora 3550
The reviewed model, duty, material, seal and installation interface package defines the quotation scope.
- Complete pump assembly
- Reviewed wet-end construction
- Seal arrangement
- Curve and technical documentation
- Motor and coupling review
- Approved drawing confirmation
HOW WE VERIFY YOUR REPLACEMENT
From Existing Pump to Reviewed Quotation
- 01Identify
Nameplate, model, size, frame/group and drawing.
- 02Confirm
Dimensions, duty, material, seal and site interfaces.
- 03Define Scope
Complete pump or reviewed replacement parts.
- 04Receive Proposal
Confirmed model, technical scope and quotation.
TECHNICAL FAQ
Pentair Aurora 3550 Replacement Questions
Is the Pentair Aurora 3550 discontinued?
Yes. Pentair’s official Aurora 3550 product page labels the model Discontinued.
What replaces a discontinued Aurora 3550?
A corresponding G196 replacement route is reviewed from the existing 3550 group, pump size, drawing, hydraulic duty and construction.
Can the existing 3550 piping and installation be retained?
Nozzle, centerline, feet, shaft, coupling and baseplate relationships are checked against the selected size and approved drawing before order.
Which S, M, L or XL group should I select?
Use the group shown on the nameplate or drawing. Pentair publishes S, M/L and XL families; the local finder keeps M and L selectable for installed identification while engineering confirms the exact route.
What information is required for an Aurora 3550 replacement quote?
Provide the nameplate, group, pump size, GA drawing if available, duty point, liquid, temperature, material, seal and quantity.
RELATED ENGINEERING RESOURCES
Continue Your Technical Review
ENGINEERING RFQ
Request an Aurora 3550 Replacement Quote
Your finder, duty and material selections are carried into this engineering request. Upload a nameplate, GA drawing or datasheet when available.
Engineering review before quotation. Final dimensional fit, hydraulic duty, materials, seal arrangement and site interfaces are confirmed from the submitted data.
