If you’ve ever had a Goulds 3196 go down in the middle of a production run, you know the feeling. Production halts. Your phone rings every fifteen minutes. And then the real headache hits: the OEM quotes you 14 to 18 weeks for a wet end kit. Maybe longer if it’s a legacy model.
We’ve been on the receiving end of those calls for over two decades. And we built our entire wet end program around one question: what if you didn’t have to wait?
This article walks through exactly what goes into a Goulds 3196 wet end replacement kit, why OEM lead times have ballooned, and how our factory-direct approach consistently trims delivery windows by 30 to 50 percent. No fluff. Just the facts that matter when you’re trying to get a pump back online.

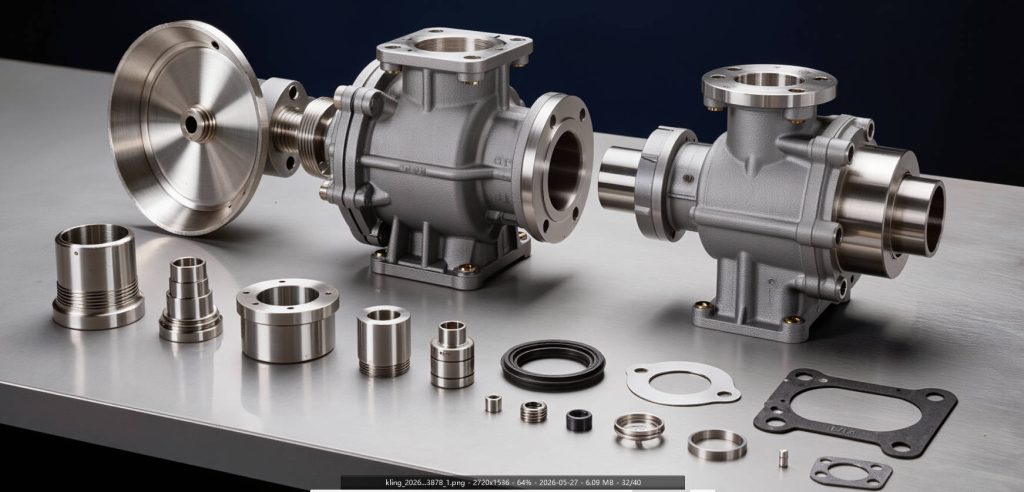

What’s Inside a Goulds 3196 Wet End Kit
A “wet end kit” isn’t a single SKU you pull off a shelf. It’s a matched set of hydraulic components that come into direct contact with the process fluid. When we ship one, here’s exactly what lands on your dock:
| Component | Material Options | Function |
|---|---|---|
| Impeller | 316SS, CD4MCuN, Hastelloy C, Titanium, Alloy 20 | Primary rotating element; determines flow and head |
| Casing (Volute) | 316SS, CD4MCuN, Cast Steel, Hastelloy C | Pressure containment and flow guidance |
| Back Cover (Stuffing Box Cover) | 316SS, CD4MCuN, Hastelloy C | Seals the rear of the casing; houses the seal chamber |
| Shaft | 316SS, 17-4PH, Duplex SS | Transmits torque from motor to impeller |
| Seal Chamber / Stuffing Box | 316SS, CD4MCuN | Houses mechanical seal or packing assembly |
| Gasket & Hardware Kit | PTFE, Aramid fiber, 304SS fasteners | Complete sealing and fastening for wet end assembly |
| Wear Rings (Casing & Impeller) | 316SS, CD4MCuN, Hastelloy C | Replaceable clearance rings that maintain hydraulic efficiency |
Why Wet End Kits Beat Piecemeal Ordering
When you replace the full wet end as a matched set, every component leaves our shop having been checked against a single set of dimensional standards. This means no surprises at assembly. No “the new impeller doesn’t sit right against the old casing.” No finger-pointing between suppliers. Just a bolt-on solution that goes together the way it should.
Where OEM Lead Times Went Off the Rails
We hear the same story from maintenance managers across the Gulf Coast, the Midwest chemical corridor, and Western Canada: OEM deliveries that used to take 6 to 8 weeks now stretch into 4 or 5 months. Here’s why:
- Centralized foundry scheduling. The major OEMs pour castings in batches optimized for their own production lines, not your urgent replacement. Your order waits for the next scheduled pour, which might be weeks away.
- Multi-tier distribution. OEM → regional distributor → local rep → your purchasing department → your shop floor. Each handoff adds days, sometimes weeks.
- Legacy model deprioritization. The Goulds 3196 is a workhorse with decades of install base. But OEMs have newer product lines they’d rather sell you. Legacy support gets back-burnered.
- Post-pandemic supply chain hangover. Raw material allocation, shipping container availability, and skilled foundry labor shortages haven’t fully unwound since 2020.
None of this is your problem to solve — but it becomes your problem when pump #3 goes down and the spare on the shelf is already used up.
How We Deliver in 5–7 Weeks Instead of 14–18
The short answer: we run a dedicated aftermarket foundry schedule, not a production-line schedule. Here’s what that means in practice:
OEM Path — ~16 Weeks
- Order enters distributor queue → 3–5 days
- Distributor processes to OEM → 2–3 days
- OEM queues for next foundry batch → 2–4 weeks
- Casting & machining cycle → 6–8 weeks
- OEM QC & packaging → 1 week
- Distribution to end user → 1–2 weeks
Our Path — 5–7 Weeks
- Order received & technical review → Same day
- Dedicated aftermarket casting allocation → Immediate
- Casting, machining & assembly → 4–6 weeks
- Dimensional QC & hydrostatic testing → 2–3 days
- Direct freight to your dock → 3–5 days
The biggest time savings come from two places: no distribution middleman and dedicated aftermarket scheduling at our foundry partners. We don’t make you wait behind a 500-unit OEM production order. Your wet end kit gets its own slot.
Material Availability Note
Stock stainless (316SS, CD4MCuN) typically ships in 4–5 weeks. Exotic alloys — Titanium, Hastelloy C, Alloy 20 — add roughly 1–2 weeks for raw material procurement. We’ll give you a firm ship date within 48 hours of receiving your PO, not a vague “we’ll let you know” that keeps you guessing.
What We Mean by “100% Interchangeable”
These three words get thrown around a lot in the aftermarket, often loosely. Here’s our definition:
- Dimensional compliance. Every component is machined to the same envelope dimensions as the OEM part. The bolt circle on our casing matches the bolt circle on your existing bedplate. The shaft sleeve OD matches your mechanical seal bore. No field modifications required.
- Hydraulic equivalence. Impeller vane geometry, cutwater clearance, and wear ring gaps are held to the same tolerances as the OEM hydraulic specification. Your pump curve stays where it’s supposed to be.
- Material certification. Each heat of metal comes with a mill test report (MTR). We don’t ship mystery metal. If you ordered CD4MCuN, you’re getting CD4MCuN — and we can prove it.
Real Numbers: Cost Comparison
Here’s a representative comparison for a complete Goulds 3196 wet end kit in 316SS, STX-size frame:
| Line Item | OEM (Approx.) | Our Price | Savings |
|---|---|---|---|
| Impeller (316SS, enclosed) | $3,200 – $4,800 | $1,920 – $2,880 | ~40% |
| Casing (316SS) | $5,500 – $8,200 | $3,300 – $4,920 | ~40% |
| Back Cover Assembly | $2,100 – $3,400 | $1,260 – $2,040 | ~40% |
| Shaft (316SS) | $1,800 – $2,600 | $1,080 – $1,560 | ~40% |
| Complete Wet End Kit | $14,000 – $21,000 | $8,400 – $12,600 | 35–40% |
Prices are indicative for standard STX-size frame in 316SS. Actual pricing depends on pump size, material grade, and current raw material markets. Request a formal quotation for your specific unit.
QC That Backs Up the Claims
A lower price means nothing if the part doesn’t fit or fails six months in. Before your wet end kit leaves our facility, it passes through:
- Incoming material verification — every heat of metal is checked against its MTR before machining begins
- CMM dimensional inspection — critical interface dimensions are verified on a coordinate measuring machine, not with hand calipers
- Hydrostatic pressure test — every casing is pressure-tested to 1.5× maximum working pressure per ASME B73.1 requirements
- Dynamic balance — impellers are balanced to ISO 1940 Grade G6.3 or better
- Fit-check assembly — the impeller, casing, cover, and shaft are trial-assembled to confirm clearance and alignment before packaging
Who This Is For
Our wet end kits are built for maintenance teams that:
- Run Goulds 3196 pumps in chemical transfer, water treatment, or general industrial service
- Are tired of OEM lead times that blow up their turnaround schedules
- Have the in-house capability to do the mechanical swap (pump teardown/rebuild experience)
- Need full material traceability and dimensional certification for their ISO 9001 documentation
- Want to cut procurement cost without gambling on fit or metallurgy
If that sounds like your shop, you’re the reason we built this program.
Need a Goulds 3196 Wet End Kit Quote?
Send us your pump tag number, material requirements, and target delivery date. You’ll have a firm quotation and lead time commitment within 48 hours.
Frequently Asked Questions
Do you need our original pump drawings to guarantee fit?
In most cases, no. We maintain an extensive dimensional database covering Goulds 3196 models across multiple decades of production. Providing your pump serial number or tag information is usually sufficient. For non-standard configurations, we may request a few critical measurements — but we’ll tell you exactly which ones.
Can you match non-standard materials or coatings?
Yes. Beyond our standard alloy portfolio, we can accommodate special material requests including super duplex stainless steels, nickel-based alloys, and specialized coatings for abrasive or high-temperature service. Lead times for non-standard materials will be confirmed during quotation.
What about post-installation support?
Every kit ships with an installation checklist and dimensional inspection report. If something doesn’t look right during installation, our applications engineering team is available by phone or video call. We’d rather spend 20 minutes on a call than have you fight a misalignment for an afternoon.
