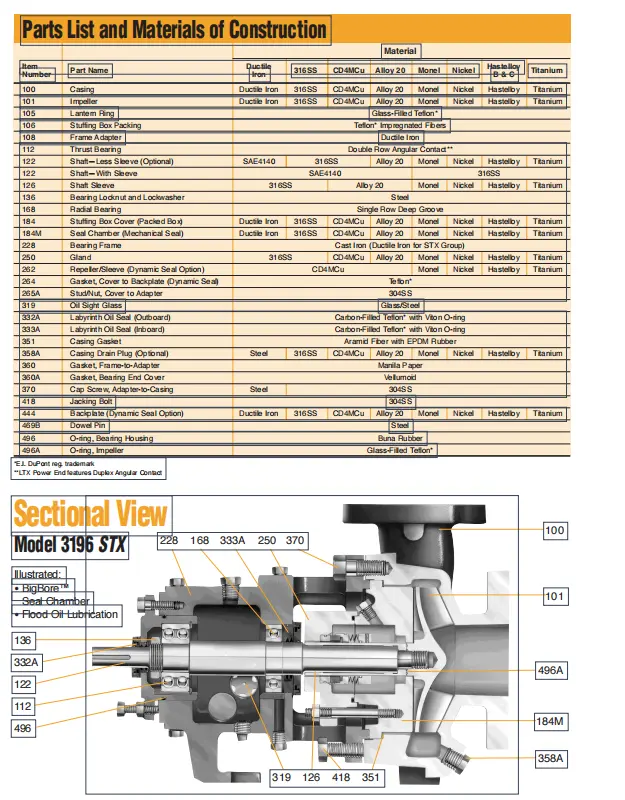

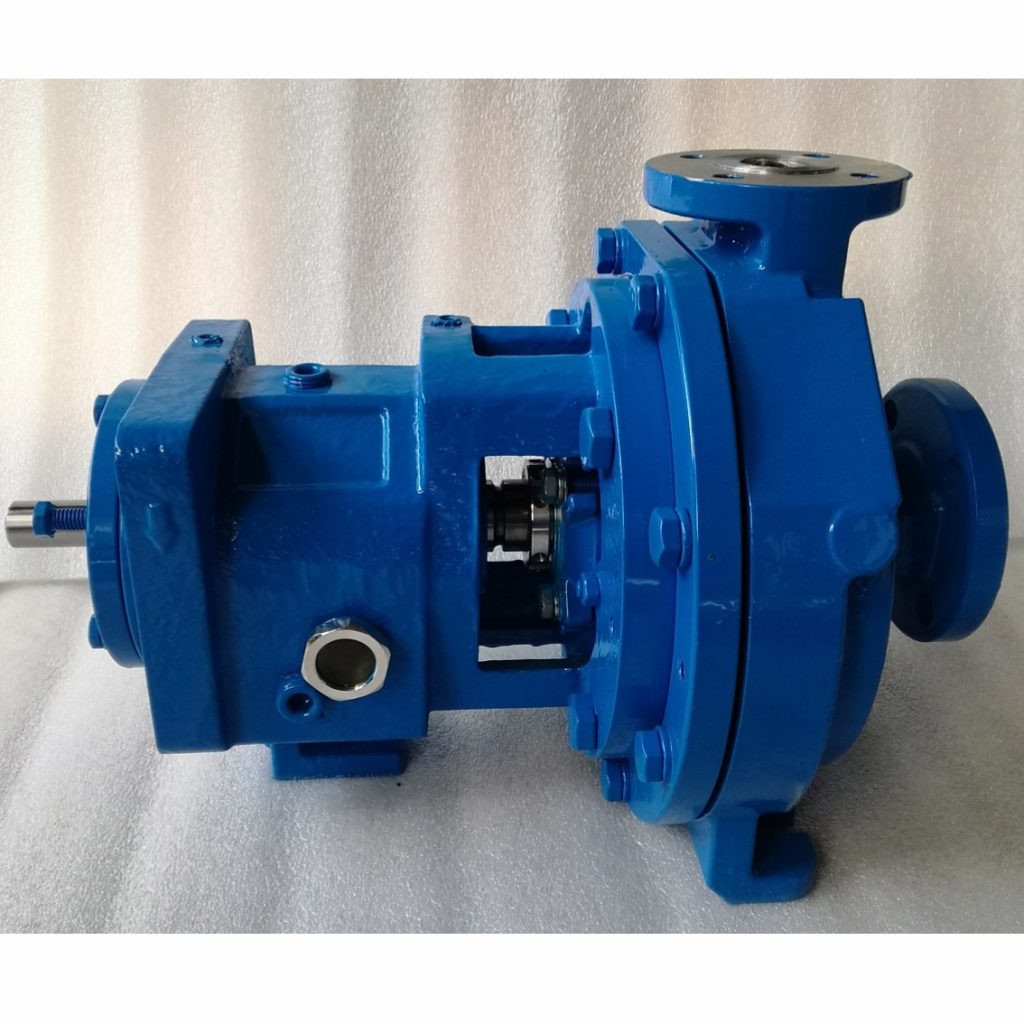

Pump 3196 Parts List

Name: Pump 3196 Parts List
Brand: Yingsiman
Availability: InStock

100% dimensionally interchangeable with Goulds 3196 -- no piping, baseplate, or coupling modifications required. Full STX/MTX/LTX/XLTX frame coverage.

Complete exotic alloy wet-end portfolio: Titanium Grade 2, Hastelloy C-276, CD4MCuN duplex, Nickel 200, Zirconium 702. All castings with full material traceability.

30-50% shorter lead time vs OEM (6-8 weeks standard, 2-3 weeks expedited). Emergency MRO parts shipped within 48 hours from priority stock.

Contact Now

Application	Chemical processing, petrochemical refining, acids transfer, caustic soda, solvents, corrosive chemical handling, high-temperature fluid transfer, pulp & paper liquors, water & wastewater treatment, mining slurries, food & beverage processing, pharmaceutical manufacturing
Flow Rate	Up to 7,000 GPM (1,590 m3/h)
Head Range	Up to 730 ft (223 m)
Temperature	Up to 700 degrees F (371 degrees C)
Materials	CF8M (316SS), CD4MCuN (Duplex), CN7M (Alloy 20), WCB (Carbon Steel), Hastelloy B, Hastelloy C-276, Nickel, Titanium Grade 2, Zirconium 702
Pressure Rating	ANSI Class 300, up to 375 PSIG (2,586 kPa)

BASEPLATE INSPECTION

1. Remove all equipment.

2. Completely clean the underside of baseplate. It is sometimes necessary to coat the underside of the baseplate with an epoxy primer. This may have been purchased as an option.

3. Remove the rust preventative solution from the machined pads with an appropriate solution.

SITE / FOUNDATION

A pump should be located near the supply of liquid and have adequate space for operation, maintenance,and inspection.

Baseplate mounted pumps are normally grouted on a concrete foundation, which has been poured on a solid footing.

The foundation must be able to absorb any vibration and to form a permanent, rigid support for the pumping unit. The location and size of the foundation bolt holes are shown on the outline assembly drawing, provided with the pump data package.
