Why Drop-In Compatibility Is Non-Negotiable for Pump Refurbishers
When a pump refurbishment service center receives a maintenance work order for an aging ANSI process pump, the clock starts ticking. Downtime costs mount, end-users demand fast turnaround, and OEM spare parts often arrive with 16–24 week lead times, premium pricing, or discontinued configurations.
At ANSI Pumps Pro, we engineer Goulds 3196 and DURCO Mark III 2 replacement wet-end kits that eliminate retrofitting, preserve your project timeline, and match OEM hydraulic performance — without the OEM premium.
“Close enough” doesn’t work in chemical process service. If a replacement casing, impeller, or frame adapter requires baseplate modification, piping re-alignment, or coupling re-sizing, your service margin evaporates and client trust erodes.
True drop-in wet-end pump kits must adhere to three non-negotiable requirements:
- ANSI B73.1 dimensional standards for face-to-face length, suction/discharge flange drilling, and shaft centerline height
- Identical mounting footprint to original Goulds 3196 / Durco Mark III 2 frames
- Zero retrofit: no baseplate drilling, no piping realignment, no coupling modification
Our kits are dimensionally verified via CMM (Coordinate Measuring Machine) and hydrostatically tested at 1.5× MAWP. You bolt them on, and the pump runs.

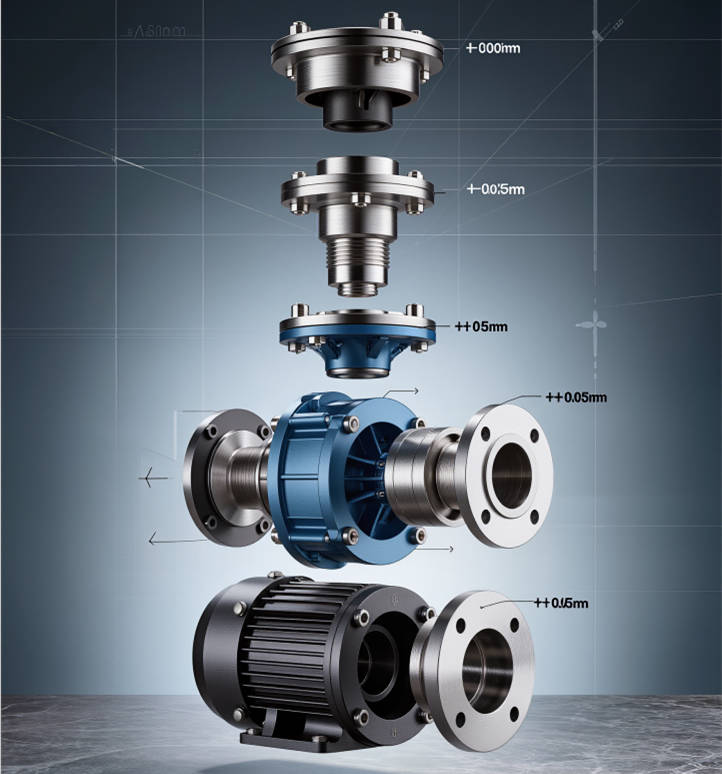

Wet-End Components: Engineered to OEM Specifications
We don’t reverse-engineer; we specification-match. Every wet-end component is manufactured to the exact tolerances and hydraulic profiles of the original Mark III series. Below is how each component is verified before shipment:
| Component | Tolerance / Verification Method | OEM Equivalence |
|---|---|---|
| Casing & Suction/Discharge Covers | ±0.05 mm CMM mapped; RT/NDE available | 100% flange & bolt pattern match |
| Impeller & Wear Rings | Balanced to ISO 1940 G6.3; clearance controlled per API 610 | Identical hydraulic curve & efficiency |
| Shaft & Frame Adapter | Shaft runout ≤0.025 mm TIR; keyway & coupling face verified | Direct drop-in to existing driver & baseplate |
Quality & Compliance Assurance
Every pump and wet-end component from ANSI Pumps Pro is manufactured to ASME B73.1 dimensional specifications and ships with certified Material Test Reports (MTRs), CMM dimensional inspection reports, and hydrostatic test certificates (1.5× MAWP). We guarantee 100% dimensional interchangeability with Goulds 3196 and Durco Mark III — or your money back. Full material traceability from heat number to your receiving dock.

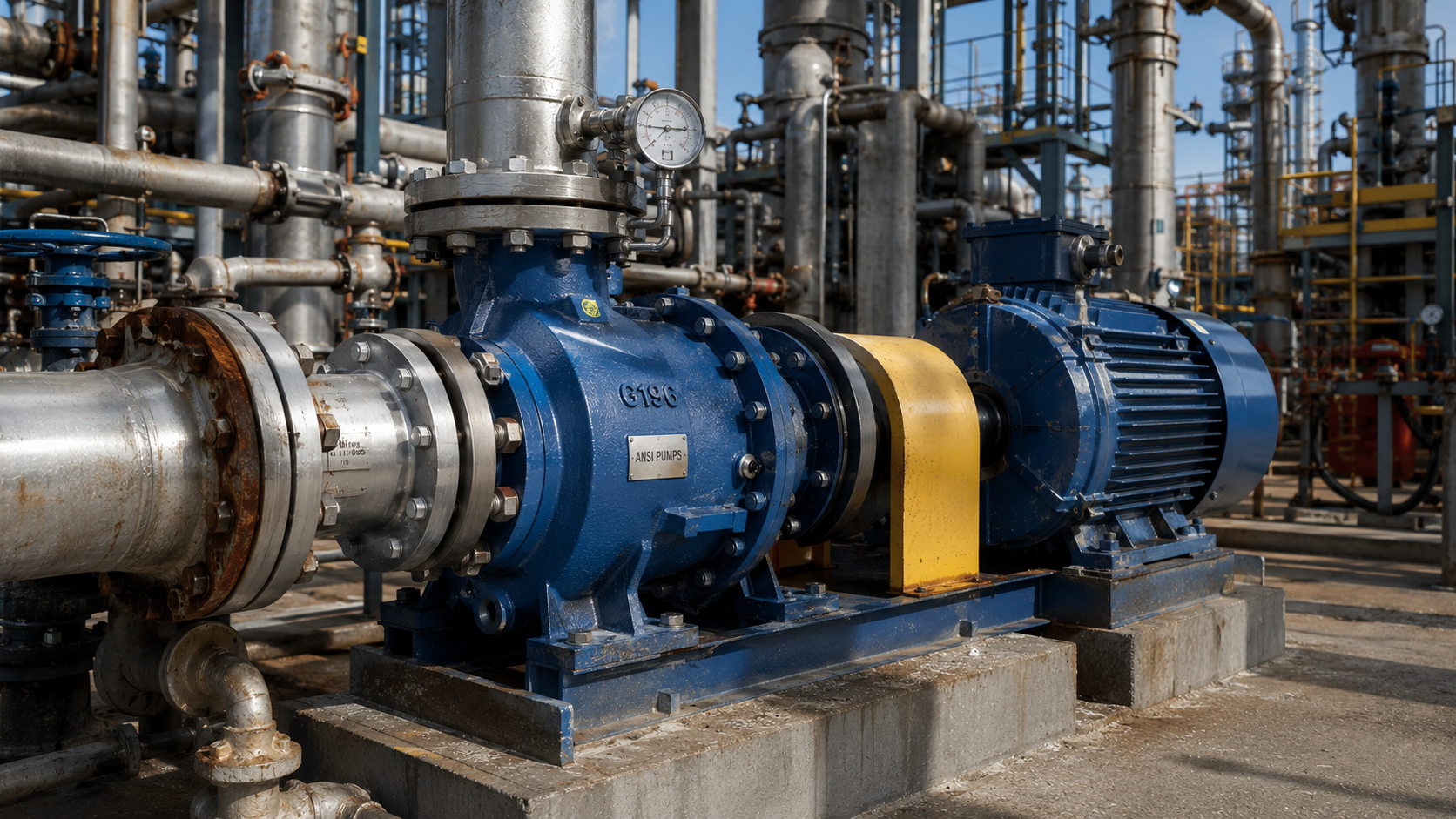

Field Proven: Over 2,400 wet-end assemblies deployed across petrochemical, chlor-alkali, and wastewater projects since 2018 — including a North American chlor-alkali plant that replaced 12 Goulds 3196 wet ends during a scheduled turnaround and achieved full bolt-up in under 48 hours. Zero field-fit failures reported.
Material Versatility for Corrosive & High-Wear Service
Chemical process conditions demand precise metallurgy. We stock and custom-cast wet-end materials to match your exact service environment:
- CD4MCuN / CA6NM — Standard acid & chloride service
- 316SS / 317L — General chemical & mild corrosives
- Hastelloy C-276 / C-22 — Hot HCl, sulfuric acid, oxidizing media
- Alloy 20 (CN7M) — Sulfuric acid, phosphoric acid, high chloride
- Titanium Gr.2 — Seawater, hypochlorite, chlor-alkali
- Duplex / Super Duplex & Cast Steel — Abrasive slurries & high-pressure utility
Each casting is supplied with EN 10204 3.1 Material Certificates, PMI reports, and optional NDE (PT/MT/UT). Specify your fluid composition, temperature, and concentration — we’ll recommend the optimal wet-end material package.
Lead Time & Cost: How Service Centers Win More Bids
OEM supply chains are optimized for new capital projects, not urgent maintenance turnarounds. We re-engineer the procurement model for pump refurbishers:
- Lead Time: 6–10 weeks (vs. OEM 14–20 weeks) — 30–50% faster turnaround
- Total Cost: 20–40% below OEM list pricing — higher service margins & competitive bidding
- Inventory Flexibility: Order complete wet-end kits, individual components, or full ANSI process pumps
Fast delivery + dimensional certainty = more work orders accepted, fewer schedule penalties, stronger end-user relationships.
How to Specify & Order Your Drop-In Kit
- Submit OEM Data: Pump tag, model (Goulds 3196 / Mark III 2), impeller trim, service conditions
- Select Wet-End Material: Standard alloy or custom specification
- Request Engineering Pack: CAD STEP files, dimensional drawings, hydro test protocol
- Production & QC: CMM verification, hydro test, material traceability documentation
- Delivery & Support: Export-packed, ready for direct bolt-on installation
Request Your Wet-End Kit Quote
Send us your pump model, impeller trim, and service fluid. Our applications team responds with a dimensional cross-check, material recommendation, and price within 24 hours.
Frequently Asked Questions
Q: Do I need to modify the baseplate or piping when installing your Goulds 3196 / Mark III 2 wet-end kits?
A: No. All dimensions (face-to-face, flange drilling, shaft centerline, mounting feet) match OEM specs. Installation is direct bolt-on with zero retrofit.
Q: Can you replicate discontinued or obsolete Mark III configurations?
A: Yes. We maintain original tooling and casting patterns for legacy ANSI process pump models, including older impeller trims and rare material grades.
Q: What quality documentation is included with each shipment?
A: Standard delivery includes EN 10204 3.1 material certificates, hydrostatic test reports, impeller balance certificates, and dimensional inspection sheets. Optional PMI/NDE available.
Q: What is the typical lead time for Goulds 3196/Durco Mark III replacement wet-end kits?
A: Standard alloys ship in 6–10 weeks, compared to 16–24 weeks from Tier-1 OEMs. Exotic alloy rush orders (Hastelloy C-276, Titanium) can be expedited to 4–6 weeks depending on casting availability.
Q: Do you supply complete pumps or only wet-end components?
A: Both. We offer wet-end kits, bearing frames, shaft seals, and fully assembled ANSI process pumps ready for direct replacement.
