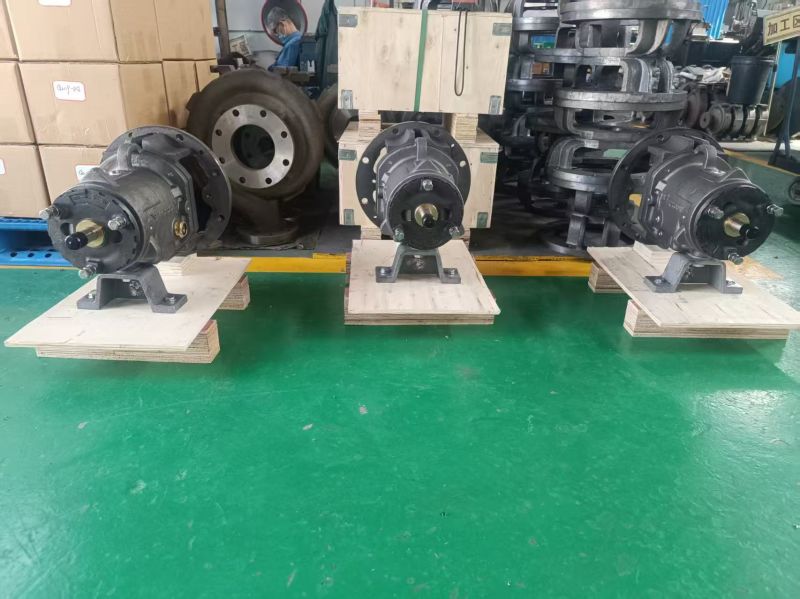

Precision Durco Mark III Group 1 Shaft & Sleeve Assembly — 100% Bolt-On Interchangeable
In chemical process plants, the Durco Mark III Group 1 small frame pump operates at 3,500 RPM — making the shaft and sleeve assembly the most highly stressed rotating component in the pump. Under abrasive or corrosive conditions, shaft runout, journal deflection, and sleeve wear accelerate rapidly. Once the mechanical seal seat area develops grooves or the bearing journals go out-of-round, the pump is on borrowed time. OEM Flowserve replacement shafts for the Group 1 often carry 12–16 week lead times — freezing your spare parts budget and your production line simultaneously.
Our Group 1 shaft and sleeve assembly eliminates both the wait and the technical risk. Every assembly is precision-machined from SAE 4140 alloy steel, heat-treated, and dynamically balanced to meet or exceed ASME B73.1 runout tolerances (≤ 0.001 in TIR at the sleeve OD). Journal surfaces are ground to 16 Ra or better at all bearing and seal seats. The result: a true drop-in replacement that requires zero modifications, zero realignment headaches, and zero vibration surprises at startup.
Technical Specifications
| Specification | Detail |
|---|---|
| Pump Compatibility | Flowserve Durco Mark III Group 1 (Small Frame) |
| Assembly Includes | Shaft, shaft sleeve, key, and locknut — fully assembled and balanced |
| Shaft Material | SAE 4140 alloy steel, heat-treated and precision-ground |
| Sleeve Material Options | 316SS (standard), CD4MCuN Duplex SS, Hastelloy C-276 |
| Journal Finish | Ground to 16 Ra (0.4 μm) or better at bearing and seal seats |
| Runout Tolerance | ≤ 0.001 in (0.025 mm) TIR at sleeve OD |
| Keyway | Precision broached — identical to OEM key dimensions and position |
| Max Flow (Group 1) | Up to 450 GPM (102 m³/h) |
| Quality Documentation | Full EN 10204 3.1 MTR + PMI + dimensional inspection report |
Material Selection Guide
We offer advanced material upgrades to extend mean time between failures (MTBF) in demanding services. Whether your application involves sulfuric acid requiring Alloy 20, or severe chloride stress corrosion necessitating CD4MCuN duplex stainless, every Group 1 shaft sleeve is dimensionally verified against OEM print tolerances to ensure maximum mechanical seal protection — no wobble, no premature face wear, no unexplained leaks.
Quick rule of thumb: If your current 316SS sleeves are lasting less than 12 months, upgrading to CD4MCuN or Hastelloy C-276 typically extends service life by 3–5× — and the sleeve material cost delta is negligible compared to the cost of one unplanned seal failure.
| Sleeve Material | Best For | Limitations |
|---|---|---|
| 316SS on SAE 4140 | General chemical service, water, oils, moderate temperatures to 400°F | Avoid >140°F in chloride environments (SCC risk) |
| CD4MCuN Duplex SS | Seawater, brine, brackish water, 20%+ chlorides | Not recommended above 600°F |
| Hastelloy C-276 | Mixed acids, severe corrosive media, wet chlorine | Higher cost; best for services where 316SS fails in < 6 months |
Why Replace the Entire Shaft Assembly?
Shaft wear at the mechanical seal area or bearing journals is the #1 cause of premature pump failure in small frame ANSI pumps. A worn shaft doesn’t just leak — it causes progressive damage:
- Seal face fretting: Grooving at the seal interface prevents new mechanical seals from seating properly — they leak from day one.
- Bearing journal wear: Undersized or out-of-round journals cause bearing inner race creep, overheating, and catastrophic bearing failure.
- Sleeve-to-shaft corrosion: Process fluid trapped under a worn sleeve corrodes the base shaft — by the time you see the damage, the shaft is already scrap.
Pro tip: Replace the shaft and sleeve as a complete assembly — not just the sleeve alone. The shaft and sleeve wear as a system. Installing a new sleeve on a shaft with worn journals is a false economy that guarantees early seal failure.
Related Durco Mark III Products
Lead Time & Rush Order Availability
📦 Standard Lead Time: 6–10 weeks for custom material configurations (manufactured to order with full MTR + PMI)
✅ Stock Availability: Standard 316SS assemblies often in stock — contact us for current inventory
🔥 Emergency Rush Orders: 3–4 weeks — Request expedited manufacturing with priority scheduling
📥 Need a Group 1 Shaft & Sleeve Assembly? Request a Quote with Your OEM Part Number Now →
Disclaimer: ANSI Pumps Pro is an independent aftermarket manufacturer. Durco and Mark III are registered trademarks of Flowserve Corporation. All OEM part numbers are used for compatibility reference only. We are not affiliated with or endorsed by Flowserve.
