Short answer: API 610 and ASME B73.1 are not interchangeable labels for the same pump. They address different application contexts and specification expectations. The correct selection starts with duty, process consequence, reliability requirement, layout and purchaser specification—not with a brand or standard name alone.
Current editions: API Standard 610, 13th Edition (2026), covers centrifugal pumps for petroleum, petrochemical and natural-gas industry services. ASME B73.1-2026 covers horizontal end-suction, single-stage, centerline-discharge chemical-process pumps and includes dimensional interchangeability provisions for the same standard dimension designation. Confirm the governing project specification before treating either standard as applicable.
- Start with API 610 when: the owner or project specification requires API 610 or the service is governed by that reliability and documentation framework.
- Start with ASME B73.1 when: the project requires a B73.1 horizontal chemical-process pump and its dimensional standardization.
- Do not substitute one for the other solely because flow, head or flange sizes look similar.
The purchasing problem behind API 610 and ASME B73.1 selection
API 610 and ASME B73.1 are not interchangeable labels for the same pump. They address different application contexts and specification expectations. The correct selection starts with duty, process consequence, reliability requirement, layout and purchaser specification—not with a brand or standard name alone. The practical risk is a part or pump that appears compatible during quotation but fails at installation, misses the duty point, corrodes early or arrives without evidence that can be traced to the supplied item.
Separate the decision into five gates: dimensional fit, mechanical fit, hydraulic performance, material suitability and operating acceptance. A model family, flange pattern or standard designation may help narrow the search, but it cannot replace these gates.
What evidence should exist before purchase
| Gate | Evidence | Question to close |
|---|---|---|
| Dimensional | Approved drawing, CMM or dimensional report | Will it install without forced fit or unplanned machining? |
| Mechanical | Shaft, key, bearing, seal chamber, coupling and clearance data | Will the rotating and stationary parts work together? |
| Hydraulic | Corrected pump curve, duty point, NPSH and power data | Will it meet process duty at the actual liquid condition? |
| Material | Specification, heat number, MTR and PMI plan | Is the wetted material suitable and traceable? |
| Acceptance | Inspection, test and deviation records | How will the buyer prove conformity after delivery? |
Step-by-step buyer verification
1. Freeze the reference configuration
Record the original manufacturer, model, size, frame, impeller diameter, speed, seal chamber, power end, wet-end materials, shaft arrangement and part numbers. Photograph the nameplate and critical interfaces. If the existing pump has been modified, record those changes rather than assuming the catalogue configuration is still present.

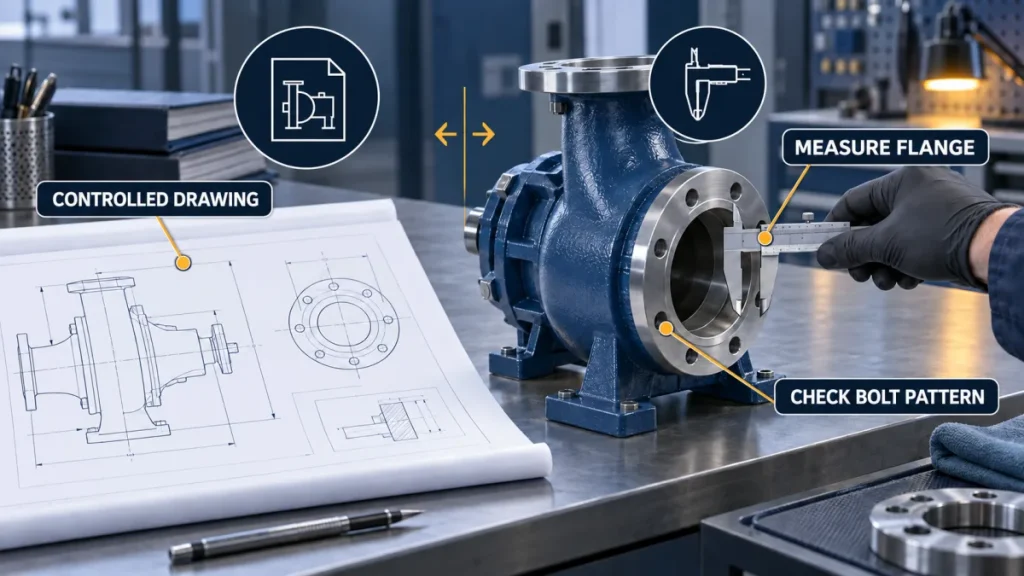

2. Compare the drawing, not only the catalogue
Check suction and discharge location, baseplate and bolt holes, shaft extension, coupling, bearing housing, casing dimensions, impeller clearances, seal chamber, gasket interfaces and rotation. If a supplier says “interchangeable,” ask which dimensions are guaranteed and which remain conditional.
3. Verify the duty point and fluid
Compare required flow, head, temperature, specific gravity, viscosity, vapor pressure, solids and operating range with the offered curve. Do not assume that a dimensionally compatible impeller produces the same head, efficiency, NPSH or motor load. Recheck the curve when the material, trim or speed changes.
4. Verify the material and manufacturing route
Ask whether the component is cast or wrought, what specification applies, how heat treatment is controlled, how repair welds are disclosed and how the heat number follows the item. For corrosion service, consider concentration, temperature, chlorides, pH, solids, velocity, oxidation and reducing conditions. For duplex and nickel alloys, chemistry alone is not enough; metallurgical condition and inspection evidence matter.
API 610 and ASME B73.1 are different selection conversations
API 610 is associated with centrifugal pumps for petroleum, petrochemical and natural-gas industry services and typically brings a demanding purchaser specification, reliability and documentation discussion. ASME B73.1 addresses horizontal end-suction, single-stage, centerline-discharge chemical-process pumps and includes dimensional interchangeability provisions for the same standard dimension designation. Neither label automatically determines the correct pump for every service.
| Comparison point | API 610 | ASME B73.1 |
|---|---|---|
| Primary scope | Centrifugal pumps for petroleum, petrochemical and natural-gas industry services | Horizontal end-suction, single-stage, centerline-discharge chemical-process pumps |
| Pump-type coverage | Broad: overhung, between-bearings and vertically suspended families | Horizontal end-suction chemical-process configuration |
| Main selection conversation | Reliability, mechanical design, service criticality, testing, inspection and purchaser requirements | Standardized chemical-process pump dimensions plus defined design and specification features |
| Dimensional interchangeability | Not the same B73 dimensional interchangeability framework | A core feature for the same standard dimension designation; it does not make all internal parts interchangeable |
| Documentation and testing | API 610 plus purchaser and project requirements | B73.1 plus purchaser and project requirements |
| Replacement implication | Do not substitute based only on duty or nozzle size | Dimensional fit does not prove API 610 equivalence |
| Pressure and temperature | Project, design and pump-type dependent | Project, design and material dependent |
| What not to do | Do not reduce API 610 to high pressure only | Do not reduce B73.1 to low pressure only |
Compare process consequence, operating envelope, materials, seal system, bearings, rotor and balance requirements, inspection, testing, layout and deviations. If a substitution is proposed, document the gaps and obtain purchaser approval before treating it as equivalent.

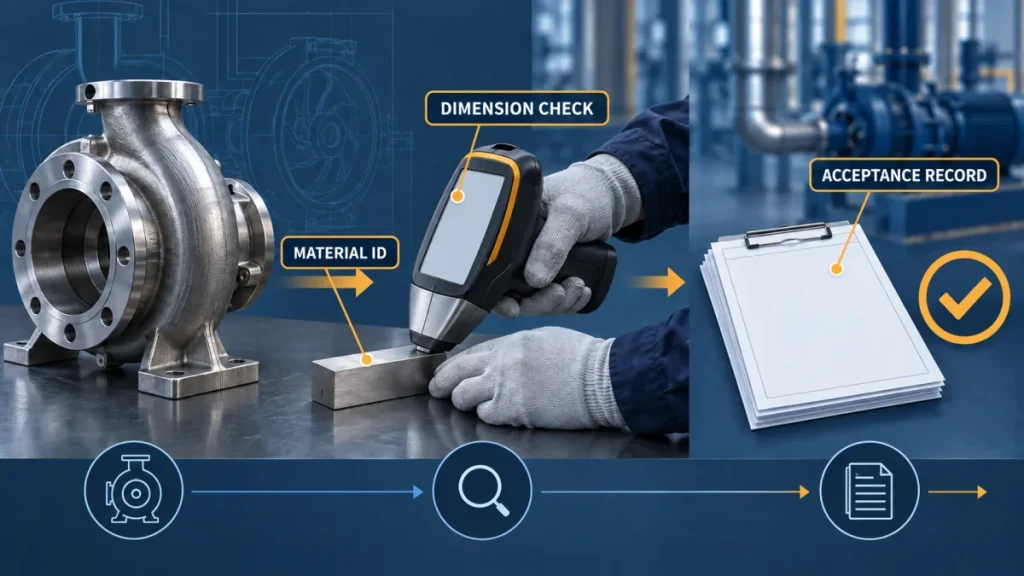

Inspection, traceability and acceptance checklist
- Approved GA and component drawings with revision control.
- Part-number and configuration cross-reference that states its limits.
- Dimensional report for critical interfaces and fit-up surfaces.
- Material certificates, heat numbers and PMI or other required verification.
- Balance, hydrostatic, performance, coating, weld-repair or casting records as applicable.
- Deviation list showing what differs from the original or purchase specification.
- Installation and commissioning readings for flow, head, vibration, temperature and leakage.
When a replacement should be rejected or escalated
Escalate when the supplier cannot identify the reference configuration, when a drawing is not controlled, when the material is described only by a trade name, when the curve is missing, when critical dimensions are assumed, when repair welds are undisclosed or when the part is claimed to fit multiple models without a stated scope. A lower quotation is not a saving if the first installation causes rework or production loss.
Send the drawing or part number for a technical fitment review.
What to send with an inquiry
Include the original pump model and size, serial or asset information, part number, drawing, duty point, liquid chemistry and temperature, material requirement, seal and coupling details, installation photos, inspection standard, delivery location and required records. State which items are mandatory and which can be proposed as alternatives.
Need help with API 610 and ASME B73.1 selection?
Send the pump nameplate, drawing, part number and operating conditions. ANSI Pumps Pro can help separate fitment, hydraulic, material and documentation risks before quotation approval.
Sources and related guides
- API Standard 610 — Centrifugal Pumps for Petroleum, Petrochemical and Natural Gas Industries (current edition information)
- ASME B73.1-2026 — Specification for Horizontal End Suction Centrifugal Pumps for Chemical Process
- ANSI process pumps and replacement parts
- ANSI pump technical review
Chemical-process specification boundary
API 610 and ASME B73.1 can both appear in chemical and hydrocarbon services, but the governing purchaser specification, service consequence, reliability philosophy, nozzle-load expectations, sealing requirements and documentation scope determine the suitable standard. Do not replace an API-specified pump with an ASME B73.1 pump solely because flow, head or nozzle sizes appear similar.
Frequently Asked Questions
Is API 610 always better than ASME B73.1?
Not automatically. API 610 may be appropriate for demanding petroleum, petrochemical or gas service, while B73.1 may fit horizontal end-suction chemical-process applications. The project specification controls.
Can an ASME B73.1 pump replace an API 610 pump?
Only after a documented review of design, materials, rotor dynamics, seals, bearings, testing, reliability requirements, dimensions and purchaser deviations.
Does B73.1 guarantee hydraulic interchangeability?
No. Dimensional interchangeability does not guarantee the same curve, efficiency, NPSH, materials or operating envelope.
