Power, Energy and Hydraulic Output Are Different Measurements
A pump energy review becomes much more useful when the measurement boundary is defined before anyone records a current value. Electrical power, electrical energy and hydraulic output answer different questions and should not be treated as interchangeable.
| Quantity | Typical unit | What it tells you |
|---|---|---|
| Electrical power | kW | The instantaneous real power drawn by the motor/drive system at the selected measurement boundary. |
| Electrical energy | kWh | Power integrated over time; this is the basis for most energy-cost calculations. |
| Hydraulic output power | kW or hp | Useful power transferred to the liquid from measured flow, head and fluid density/specific gravity. |
| Wire-to-water efficiency | % | Useful hydraulic output divided by measured electrical input at a defined boundary. |
Start with the question you need to answer
If the question is “How much electricity does this pumping system use?”, measure electrical input. If the question is “How effectively is electrical input becoming useful hydraulic work?”, measure electrical input and hydraulic output during the same operating condition.
Define the Measurement Boundary From Electrical Supply to Hydraulic Output
The most reliable field assessment treats the pump as part of an energy-conversion chain rather than as an isolated motor current reading.
Electrical Input → Drive → Motor → Pump → Process
Measure each quantity at the boundary that matches the engineering question.
Supply / MCC
Voltage, current, real kW, PF and kWh at the electrical input boundary.
VFD / starter
Identify whether drive losses and PWM output are inside or outside the measurement boundary.
Motor / shaft
Speed and, when available, torque or shaft-power information.
Pump
Operating point, pump curve, mechanical condition and internal hydraulic losses.
Process
Flow, suction pressure, discharge pressure, liquid properties and operating state.

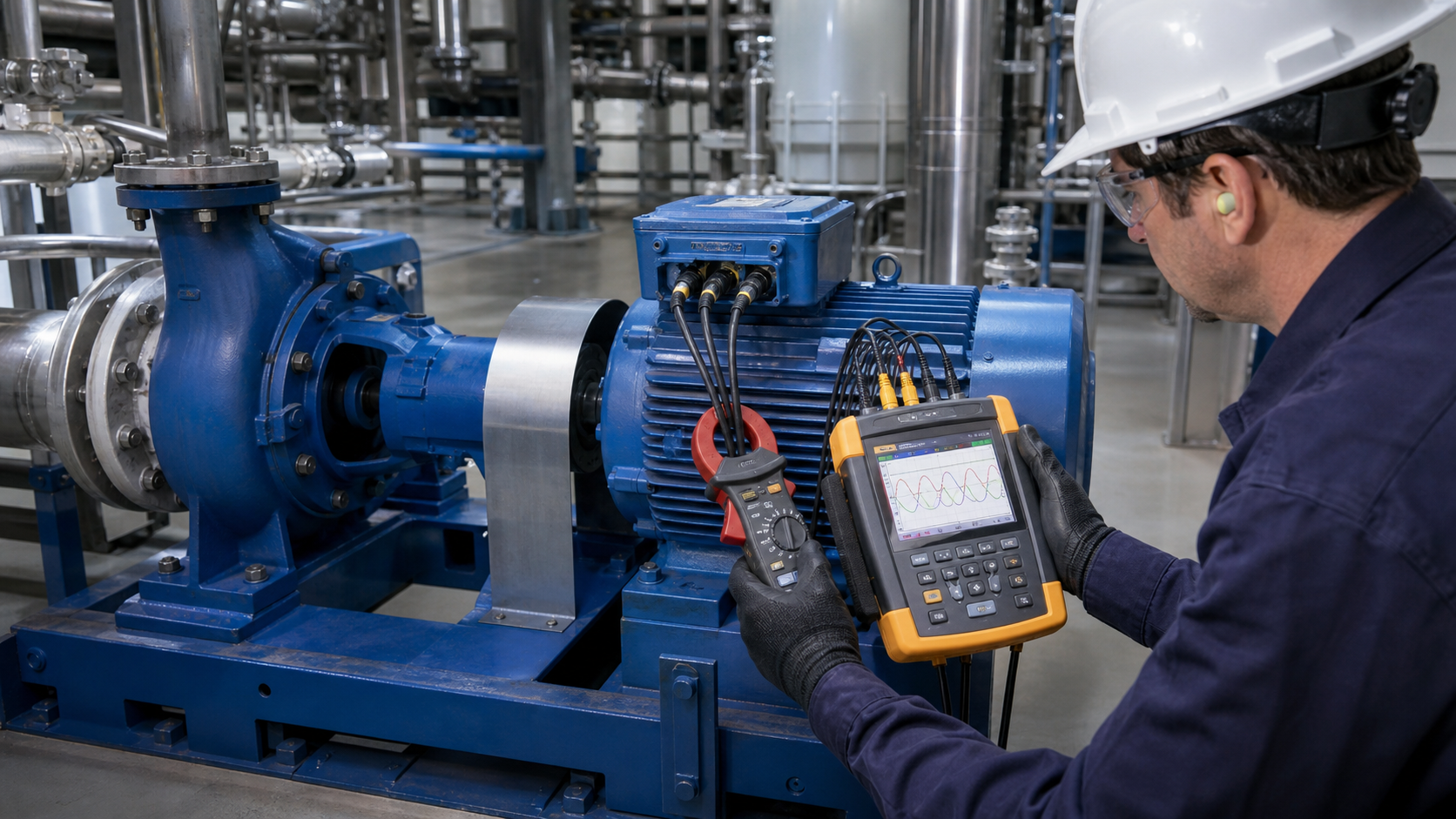

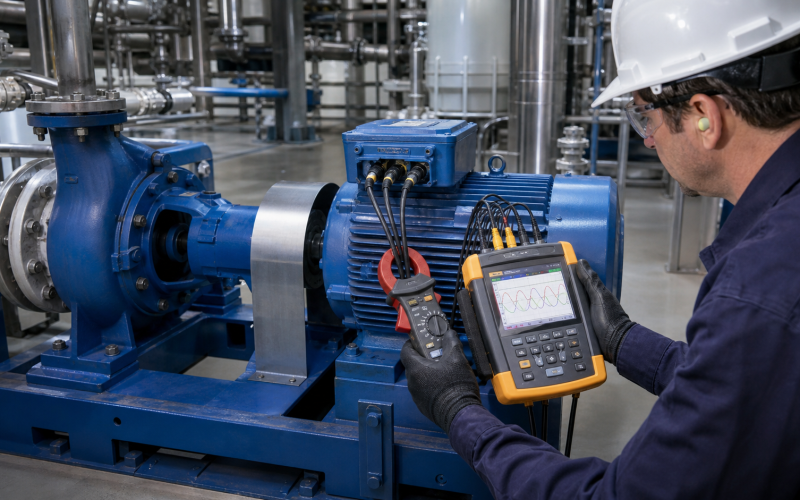

Measure Real Three-Phase Electrical Power
A suitable three-phase power analyzer is the preferred field method when the objective is to establish real input kW rather than infer power from current alone. Record all three phases and confirm the instrument and sensors are suitable for the circuit, waveform and site electrical category.
VLL is line-to-line RMS voltage; I is line current; PF is true power factor. The compact three-phase relation assumes a balanced supply and a suitable true-power-factor measurement. For real field assessments, use a power analyzer where imbalance, harmonics or variable-speed-drive behavior matter.
Electrical safety boundary
Live three-phase measurements can expose personnel to hazardous voltage and arc-flash risk. Measurement setup, CAT rating, PPE, test points and energized-work procedure must follow the site’s electrical-safety program and be performed by qualified personnel. This guide does not replace site electrical procedures.

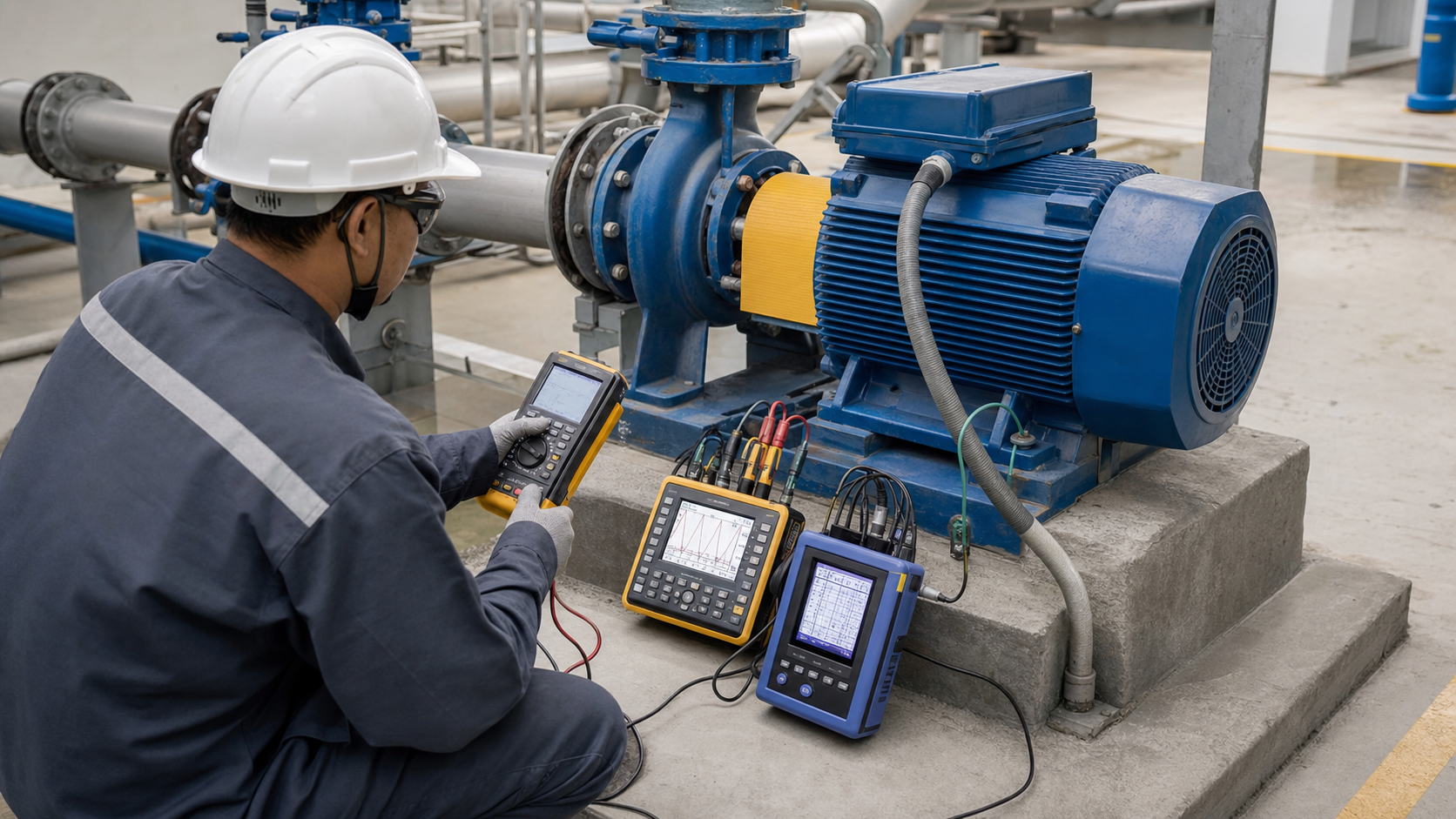

Use Current and Nameplate Data as a Screening Estimate, Not as Real Power
Clamp-current measurements are useful for trending a stable motor or identifying a major load change, but current does not by itself equal kW. Motor power factor and efficiency vary with load, and the relationship becomes especially unreliable when a lightly loaded motor, phase imbalance or a VFD is involved.
| Use current screening for | Do not use it alone for |
|---|---|
| Comparing the same pump/motor against its own historical baseline | Investment-grade energy-savings verification |
| Finding a sudden motor-load change | Calculating actual three-phase kW from FLA percentage |
| Deciding whether deeper testing is worthwhile | Comparing different motors with different efficiency/PF curves |
| Routine condition trending under repeatable conditions | Interpreting raw current on a VFD output as accurate input energy |
If only current is available, label the result as a screening estimate and document the assumptions instead of presenting it as measured pump power.
Calculate Hydraulic Power From Flow, Head and Fluid Density
Hydraulic power is the useful output delivered to the liquid. It is not electrical consumption. Pair it with measured electrical input when the objective is to evaluate overall field efficiency.
For theoretical duty calculations and motor sizing, use the Pump Power & Motor Sizing Calculator. This article focuses on field measurement rather than design sizing.
Calculate Wire-to-Water Efficiency
Wire-to-water efficiency compares useful hydraulic output with measured electrical input at a clearly defined boundary. It is a practical field metric because it captures the combined effect of the drive, motor, pump and operating point.
Do not diagnose a pump from one efficiency number alone
A low field value does not by itself prove impeller wear or an oversized pump. Compare the result with speed, pump curve, motor/drive efficiency, original baseline, system condition and process requirements.
Measuring a VFD-Driven Pump Requires a Clear Test Point
A VFD creates two useful but different electrical measurement boundaries. The line side answers how much power the pumping system draws from the facility. The motor side is useful when drive output and motor performance need to be analyzed, but the PWM waveform requires an instrument designed for variable-speed drive measurements.
Two Boundaries, Two Questions
Do not assume the same meter setup is valid on both sides of a VFD.
VFD line-side input
Best boundary for facility electrical consumption and total drive + motor + pump assessment.
VFD output / motor input
Useful for drive/motor diagnostics; requires suitable PWM-capable voltage/current/power measurement.
Hydraulic output
Flow + head + fluid properties measured during the same speed and process condition.
Choose the Method Based on the Decision You Need to Make
| Method | Actually measures | Best use | Main limitation |
|---|---|---|---|
| Utility meter / submeter | kW / kWh at a defined electrical boundary | Long-term baseline and energy tracking | May include other loads or lack pump hydraulic context |
| Three-phase power analyzer | Real kW, PF, V, I and energy | Field energy assessment | Requires correct setup, suitable sensors and electrical safety controls |
| MCC / VFD internal data | Drive-estimated electrical/operating data | Trending and diagnostics | Accuracy and calculation method depend on the equipment |
| Clamp current | Current | Screening / trending | Current alone is not real power |
| Flow + pressure/head | Hydraulic duty/output | Pump/system performance | Does not measure facility electrical input |
| Flow + head + real input kW | Wire-to-water performance | Most complete field assessment | Requires synchronized and credible measurements |
Avoid assigning generic ±1%, ±10% or ±20% accuracy labels to these methods. Total uncertainty depends on the actual instrument class, CT/PT or current sensor, waveform, flow measurement, pressure measurement, installation and data processing.

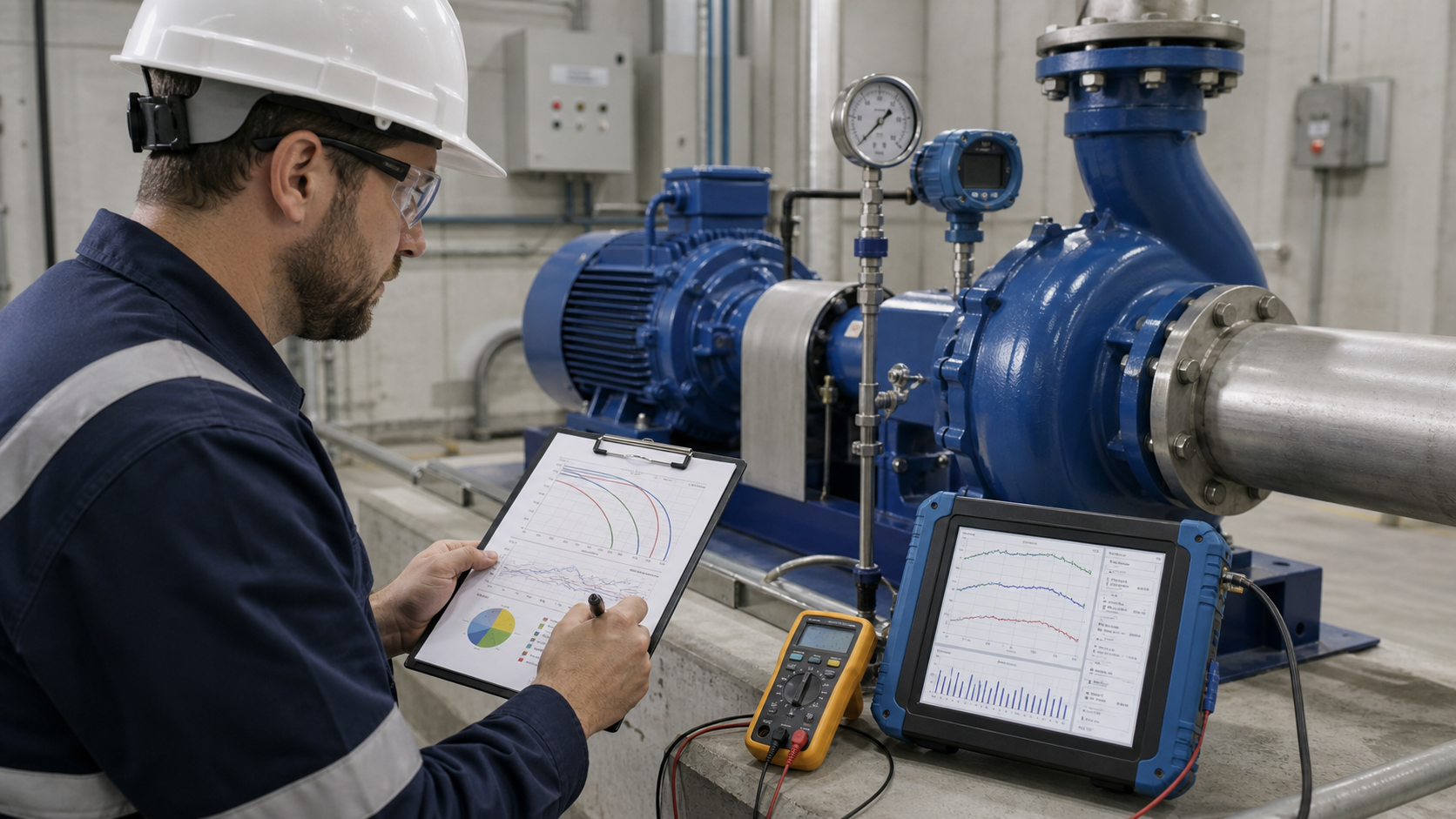

Record Electrical and Hydraulic Data at the Same Operating Condition
Stability matters more than a long arbitrary test duration
Record a sufficiently stable period to represent the operating condition being assessed. Longer logging is useful when load varies, but there is no universal 15- or 30-minute rule that makes every field test valid.
Establish a Comparable Baseline Before Calling a Change “Efficiency Loss”
A single snapshot can show the current state, but trending under comparable conditions is far more useful for condition assessment. Commissioning or known-good baseline data gives the plant something real to compare against.
| Compare | Keep reasonably consistent |
|---|---|
| Electrical input | Speed/frequency, process demand and measurement boundary |
| Flow and head | Valve state, tank level/system resistance and liquid properties |
| Efficiency trend | Operating point, SG/density and instrumentation method |
| Condition indicators | Vibration location, temperature point and operating state |
What the Measurements Can—and Cannot—Tell You
Measured kW is evidence of electrical input. Flow and head are evidence of hydraulic output. The gap between them contains drive, motor, mechanical and hydraulic losses, so it should not be assigned to one component without supporting evidence.
No “15% gap = pump wear” rule
Electrical input must exceed hydraulic output because the system includes normal drive, motor and pump losses. A fixed percentage difference cannot by itself diagnose internal recirculation, impeller wear or mechanical friction.
Use Power Together With Flow, Head, Speed and Process Data
| Observation | Possible explanations | Next check |
|---|---|---|
| kW increases while Q/H are similar | Motor/drive loss change, mechanical friction, pump hydraulic deterioration, fluid-property change | PF/current balance, vibration, temperature, SG/viscosity, baseline and curve |
| kW and flow both increase | Higher process demand or lower system resistance | Valve state, system curve, tank levels and actual process requirement |
| kW increases after SG/density rises | Higher power required to move denser liquid | Verify current liquid density/SG before blaming pump efficiency |
| kW falls with Q/H | Starvation, reduced process demand, speed reduction, hydraulic degradation | Speed, suction condition, flow/head, NPSH and curve position |
| Q/H decline at similar speed and system state | Wear, fouling, erosion/corrosion, clearance change or instrumentation drift | Repeat measurement, compare curve/baseline and inspect if evidence supports it |
| High throttling at normal production | Pump/system mismatch or control loss | System curve, trim, VFD suitability and required operating range |
| Large continuous bypass flow | Minimum-flow requirement or avoidable recirculation loss | Confirm minimum stable flow requirement and actual process need |
When Pump Wear Becomes a Suspect
Internal wear, erosion, corrosion, fouling and increased running clearances can reduce hydraulic performance and efficiency. They become stronger suspects when repeatable flow/head performance or wire-to-water efficiency deteriorates from a comparable baseline and the system operating condition has not changed enough to explain the difference.
Do not apply a generic clearance value across Goulds 3196, Durco Mark III or other ANSI families. Clearance procedure and limits are model- and configuration-specific.
Convert a Credible kW Baseline Into Energy Cost
Once the electrical input is measured or credibly estimated, annual energy becomes a separate calculation based on operating hours and the applicable tariff. Keep that financial calculation separate from the measurement itself.
For tariffs, annual savings, demand charges and lifecycle-cost comparison, continue to the Pump Energy Cost Calculation guide.
Decide Whether the Opportunity Is Control, System, Pump Condition or Replacement
Measure
Real input kW + synchronized flow/head/process data.
Normalize
Confirm speed, SG, system state and measurement boundary.
Compare
Baseline, pump curve, operating region and system requirements.
Diagnose
Control loss, system resistance, process change, pump condition or motor/drive issue.
Act
Leave as-is, adjust control, trim, VFD, maintain, rerate or replace only when evidence supports it.
If the measured duty indicates a persistent variable-load or throttling problem, review the variable-speed pump / VFD decision framework. If the concern is operating region and reliability, see the pump efficiency and BEP guide.
What to Send for an Energy and Pump-Condition Review
Start with what you have.
A pump model, current operating point and one credible real-kW measurement are enough to identify which additional measurements matter next.
Related engineering references: put measured power into a broader pump-system assessment.
Pump Energy Measurement FAQ
Can I calculate pump power accurately from motor current alone?
Not usually. Current is useful for screening and trending, but real electrical power also depends on voltage, power factor, phase condition and waveform. Use a suitable three-phase power analyzer when accurate input kW is required.
Should I measure a VFD-driven pump on the input side or output side?
It depends on the question. The VFD line side is the clearest boundary for facility electrical input. Motor-side VFD output is useful for drive/motor diagnostics, but the PWM waveform requires suitable measurement equipment.
Is hydraulic power the same as pump electrical consumption?
No. Hydraulic power is useful power delivered to the liquid. Electrical consumption is the input drawn from the electrical system. Their ratio, at a defined boundary, is wire-to-water efficiency.
Does a drop in wire-to-water efficiency prove the impeller is worn?
No. It is evidence that overall field performance changed, but the cause may be process, system, drive, motor, instrumentation or pump condition. Compare a stable baseline and pump/system data before assigning a root cause.
How long should I log pump power before using the result?
Long enough to represent the operating condition being assessed. A stable fixed-load pump may need a shorter representative sample; a variable-demand system may require interval logging across its duty cycle. There is no single universal logging duration.
