Quick Answer: Start with the Duty, Not the Pump Standard
ANSI B73.1 defines a chemical-process pump configuration and dimensional framework; it does not make every ANSI pump suitable for every water-treatment service. Start by separating bulk transfer and circulation from duties where metering accuracy, solids passage, very high pressure or project-specific certification dominate the selection.
ANSI B73.1 may fit
- Bulk treatment-chemical transfer
- Neutralization or chemical recirculation
- General industrial wastewater chemical transfer
- Utility/process transfer within a verified hydraulic envelope
Evaluate another pump category first
- Precise low-flow chemical dosing
- Fibrous or high-solids wastewater/sludge
- High-pressure RO membrane feed
- Service where certification or sanitary requirements control equipment choice
Where ANSI B73.1 Pumps Fit in a Water-Treatment System
This map is intentionally application-based. It shows where an ANSI process pump can be screened as a candidate—and where another pump category is usually the better starting point.
Water-Treatment Pump Application Map
Read left to right. Each duty is a separate engineering decision; one pump category should not be assumed across the whole plant.
Bulk chemical transfer
ANSI B73.1 may be evaluated when flow, head, materials, seal and NPSH are suitable.
Precise chemical dosing
Metering accuracy and turndown normally point to metering, diaphragm or peristaltic equipment.
Sludge / fibrous solids
Passage size and clog resistance can dominate; review non-clog or solids-handling designs.
High-pressure RO feed
High differential pressure often favors multistage or dedicated high-pressure designs.
Chemical recirculation
ANSI B73.1 can be screened where hydraulic duty and fluid compatibility are documented.
Where ANSI B73.1 Process Pumps Fit in Water Treatment

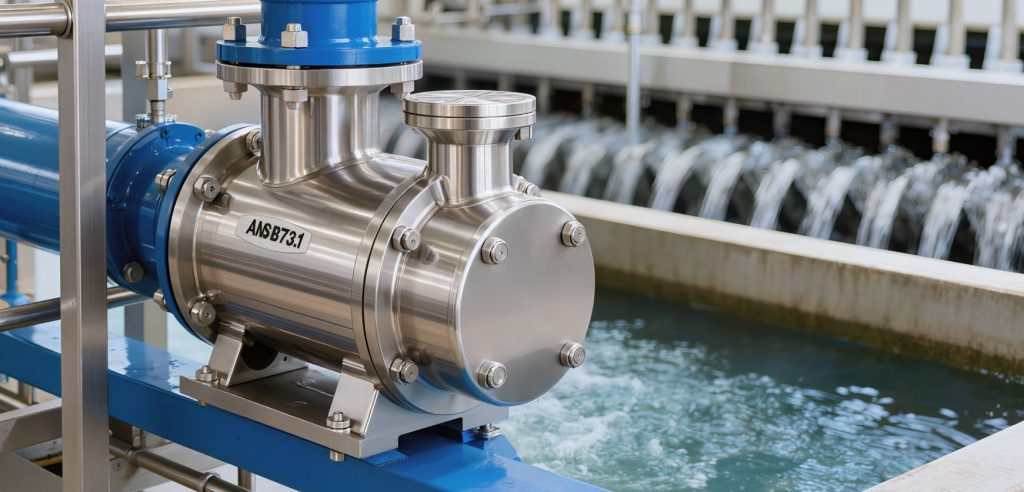

ANSI/ASME B73.1 horizontal process pumps can be a practical choice when the required flow, head, liquid properties, materials and seal arrangement fall within the selected pump’s verified operating envelope. Typical review cases include bulk treatment-chemical transfer, neutralization recirculation and general process transfer.
The standard helps define installation dimensions and design expectations for the applicable chemical-process pump configuration. It does not guarantee a particular hydraulic curve, material, seal life, certification or suitability for a different service. Confirm the actual model, size, impeller, speed, motor, materials and operating range against project data.
Where another pump type may be a better fit
| Duty | Why ANSI end-suction may not be first choice | Category to evaluate |
|---|---|---|
| Precise low-flow chemical dosing | Controlled metering accuracy over a dosing range | Metering / dosing pump |
| High-solids sludge or fibrous wastewater | Solids passage and clog resistance dominate selection | Non-clog / recessed-impeller / solids-handling |
| High-pressure RO feed | Pressure requirement often favors dedicated high-pressure hydraulics | Multistage / high-pressure pump |
| Potable-water service with certification requirement | Certified wetted scope or system compliance may control equipment selection | Verify NSF/ANSI 61 or project requirement |
Material Selection Is Service-Specific
Do not approve CF8M, CD4MCuN, CN7M, Hastelloy C-type, titanium, zirconium, WCB or nickel-based options from the chemical name alone. Concentration, temperature, contaminants, velocity, solids, pH and oxidizing/reducing conditions belong in the same review.
| Input to collect | Why it matters |
|---|---|
| Chemical name + concentration | Corrosion behavior can change materially with concentration. |
| Normal / startup / cleaning temperature | Material and elastomer compatibility can change with temperature. |
| pH, chlorides, oxidizing/reducing condition | These inputs can change the controlling corrosion mechanism. |
| Solids + particle size | They affect erosion, clogging and mechanical-seal environment. |
| Specific gravity + viscosity | They affect absorbed power and may require hydraulic/efficiency correction. |
| Certification + project specification | They may control material, documentation and wetted-component scope. |
Potable-water note
316 stainless steel by itself does not establish NSF/ANSI 61 compliance. Where potable-water certification is required, verify the exact certified product and wetted-component scope specified by the project.
Specific Gravity Changes Absorbed Power
For a first-pass centrifugal-pump screening at the same flow, head and assumed efficiency, absorbed power scales approximately with liquid specific gravity and pump power. This is useful for catching an undersized motor when a water-based selection is reused for a heavy chemical.
First-pass SG check
Always state concentration and temperature. If viscosity is materially above water, apply the appropriate centrifugal-pump viscosity correction and re-check efficiency, absorbed power, NPSH and operating range rather than using SG multiplication alone.
Seals, Hydraulics and Seal-Support Plans
Water-treatment chemicals can create different sealing risks even when the liquid names look familiar. Confirm seal faces, elastomers, chamber geometry, flush or barrier arrangement, temperature, vapor pressure and contamination tolerance. API 682 plan terminology can be useful as an engineering reference, but an ANSI B73.1 pump does not automatically require a particular API plan.
Process-fluid flush from discharge
- What it does
- Routes process fluid from pump discharge to the seal chamber for cooling/lubrication.
- Consider when
- The process liquid is clean, compatible with the seal environment and sufficiently away from vapor-pressure limits.
- Key limitation
- Not a default choice for abrasive or unsuitable process fluid.
External clean flush
- What it does
- Introduces a clean pressurized external fluid into the seal chamber.
- Consider when
- Abrasives, poor lubricity or seal cooling make an external clean flush useful.
- Key limitation
- Product dilution, contamination tolerance, flush quality and operating cost must be reviewed.
Pressurized barrier reservoir
- What it does
- Uses an external reservoir, commonly gas pressurized, to supply barrier fluid to a dual pressurized seal.
- Consider when
- A dual pressurized seal arrangement is required and the reservoir-based system matches the pressure/thermal duty.
- Key limitation
- Barrier-fluid selection, gas entrainment, pressure control and heat removal require project review.
External pressurized barrier system
- What it does
- Uses an external system to deliver clean pressurized barrier fluid to a dual pressurized seal.
- Consider when
- Higher heat removal, controlled circulation or demanding dual-seal service requires an engineered external system.
- Key limitation
- More system complexity, utilities, monitoring and maintenance than a simple flush arrangement.
What to Verify Before Replacing an Existing ANSI Pump

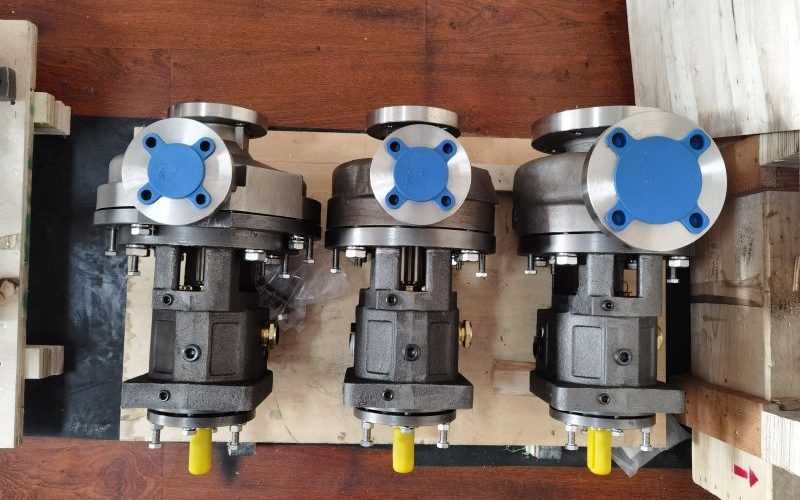

If the installed unit is an ANSI-style process pump, replacement review should combine hydraulic evidence with dimensional and service data. This is especially important when reviewing an independent aftermarket Goulds 3196 replacement or Durco Mark III replacement.
Already have a Goulds 3196 or Durco Mark III in this service?
Send the installed model, duty point, chemical, concentration, temperature and available drawing/nameplate. The first step is to confirm whether ANSI B73.1 is the right pump category for the duty—then verify hydraulic and dimensional fit.
RFQ checklist for water-treatment chemical transfer
A useful RFQ should state normal and upset operating cases, not only a nominal flow and pressure. Include fluid composition, temperature, solids, specific gravity, viscosity where relevant, required materials, seal arrangement, motor/control information, interface dimensions, inspection or test documents and certification requirements.
For a replacement review, make the quotation boundary explicit: part only, wet end, power end, bare pump, complete pump, baseplate, motor, mechanical seal and/or documentation package.
Frequently Asked Questions
Are ANSI process pumps suitable for chemical dosing?
They can handle some bulk transfer or recirculation duties, but precise low-flow dosing normally calls for a metering or dosing pump selected for the required accuracy and turndown.
Can an ANSI B73.1 pump handle wastewater sludge?
Not by default. High solids, fibrous material and clogging risk may favor a non-clog, recessed-impeller or dedicated solids-handling pump. Review the actual solids and duty.
Can an ANSI pump be used for RO feed?
It depends on required pressure and flow. High-pressure RO feed often requires a dedicated high-pressure or multistage design rather than a standard end-suction assumption.
What material should be used for ferric chloride or sodium hypochlorite?
There is no safe chemical-name-only answer. Confirm concentration, temperature, impurities, pH, oxidizing conditions, wetted components and the project material specification before approval.
Does ASME B73.1 mean the pump is NSF/ANSI 61 certified?
No. B73.1 and NSF/ANSI 61 address different requirements. Verify the exact certification and wetted-component scope required for potable-water service.
Sources Used for the Added Engineering Notes
- ASME — B73.1 specification for horizontal end-suction centrifugal pumps for chemical process.
- John Crane — API Plan 11, Plan 32, Plan 53A and Plan 54 technical descriptions.
- Sigma-Aldrich / Merck — sulfuric acid 95–98% density data.
- BASF — Sodium Hydroxide Solution 50% SDS, density and viscosity data.
- NSF — NSF/ANSI/CAN 61 drinking-water system component scope.
