Can You Replace a Durco Mark III Pump Without Repiping?
Sometimes. A replacement can reuse the existing suction and discharge piping when the installed pump’s connection geometry and the replacement’s verified interfaces match the actual installation. The pump family name or an ANSI B73.1 designation alone is not enough to approve a drop-in replacement.
Before ordering, compare the installed pump and proposed configuration using controlled drawings and site evidence. Review the nozzle positions, mounting and shaft centerline, coupling arrangement, seal interfaces, materials and operating duty. If the existing installation has been modified or its dimensions are unknown, treat fitment as unconfirmed until those details are checked.
What ASME B73.1 Confirms—and What It Does Not
ASME describes B73.1 interchangeability for pumps with the same standard dimension designation. The defined installation relationships include mounting dimensions, suction and discharge nozzle size and location, input shafts, baseplates and foundation bolt holes. That scope helps with replacement planning, but it does not establish that every pump called “ANSI” has the same interfaces or that every internal part, material, seal arrangement or performance curve is interchangeable.
Use the B73.1 dimensional-interchangeability and component-compatibility guide for the wider standards boundary. This page focuses on the site checks that determine whether a Durco Mark III replacement can retain the existing piping and installation.
Fitment decision
Approve “no repiping” only for the reviewed pump size and configuration, against the applicable drawings and actual installation evidence. Record any assumptions, field measurements still required and interfaces excluded from the review.
Identify the Exact Durco Mark III Configuration
“Durco Mark III” identifies a product family, not one universal assembly. Record the complete model and size, group, serial number, impeller configuration and diameter, speed, rotation, casing and impeller materials, seal-chamber arrangement, shaft or sleeve details, driver and coupling information. Note whether the request is for a complete pump, wet end, power end or an individual component.
Send legible nameplate and installation photographs, including both flanges, pump feet, baseplate, coupling and guard, seal chamber, auxiliary piping and available clearance for removal. Where available, include the existing outline drawing, parts list and pump curve. For size-code lookups, use the separate Durco Mark 3 dimensions and cross-reference guide; do not infer a fit from a family label alone.

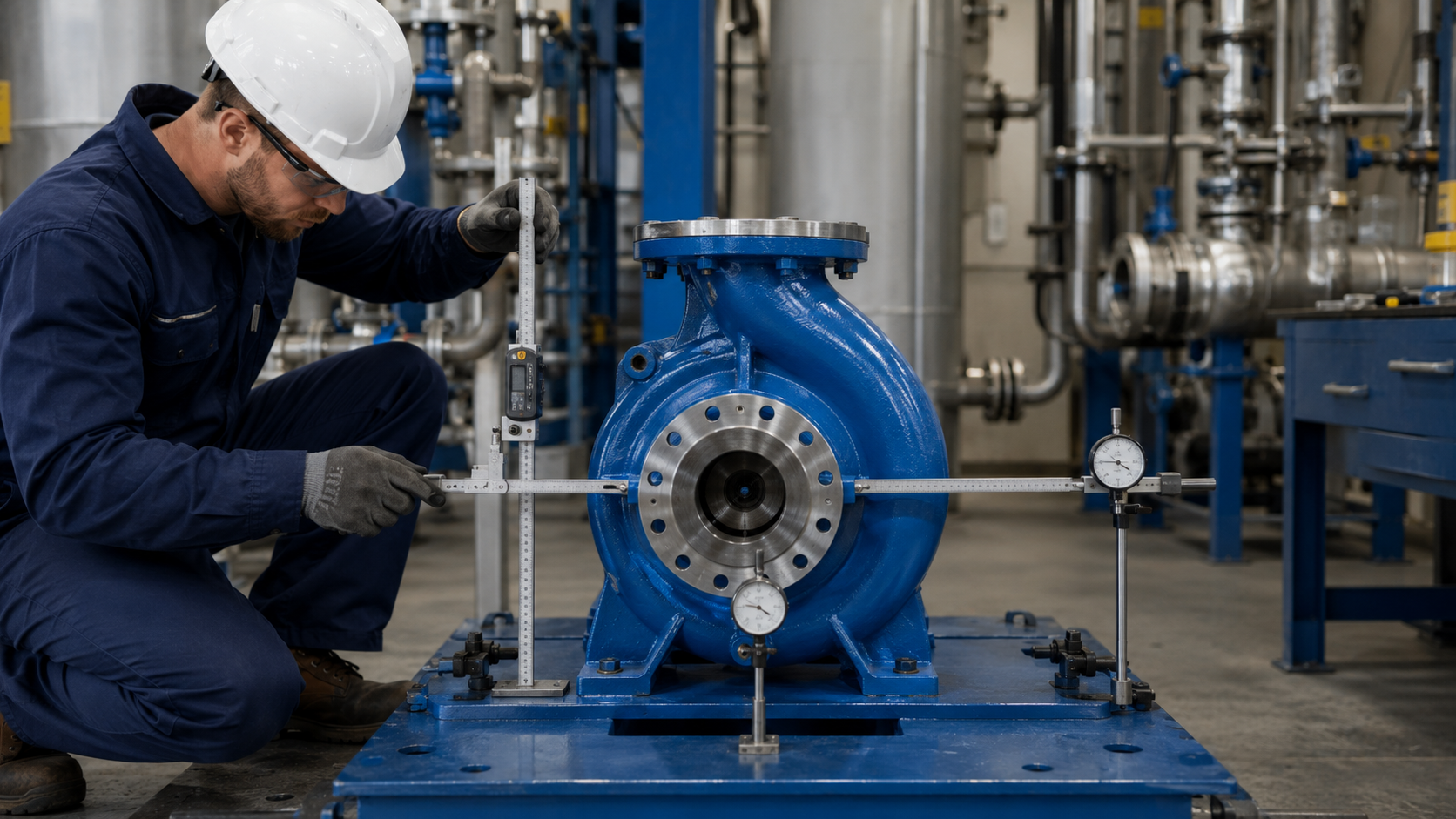

Check the Interfaces That Determine Whether Piping Can Stay
Compare the proposed replacement drawing with the installed pump drawing and field measurements. A catalogue outline is a useful reference, but it may not reflect field modifications, a moved driver, a distorted baseplate or piping changes made after the original installation.
| Interface | Evidence to compare | Decision relevance |
|---|---|---|
| Suction and discharge | Flange size, rating and facing; bolt-hole pattern; orientation; nozzle centerline coordinates | Determines whether the existing pipe flanges can meet the proposed pump without being pulled or forced into position. |

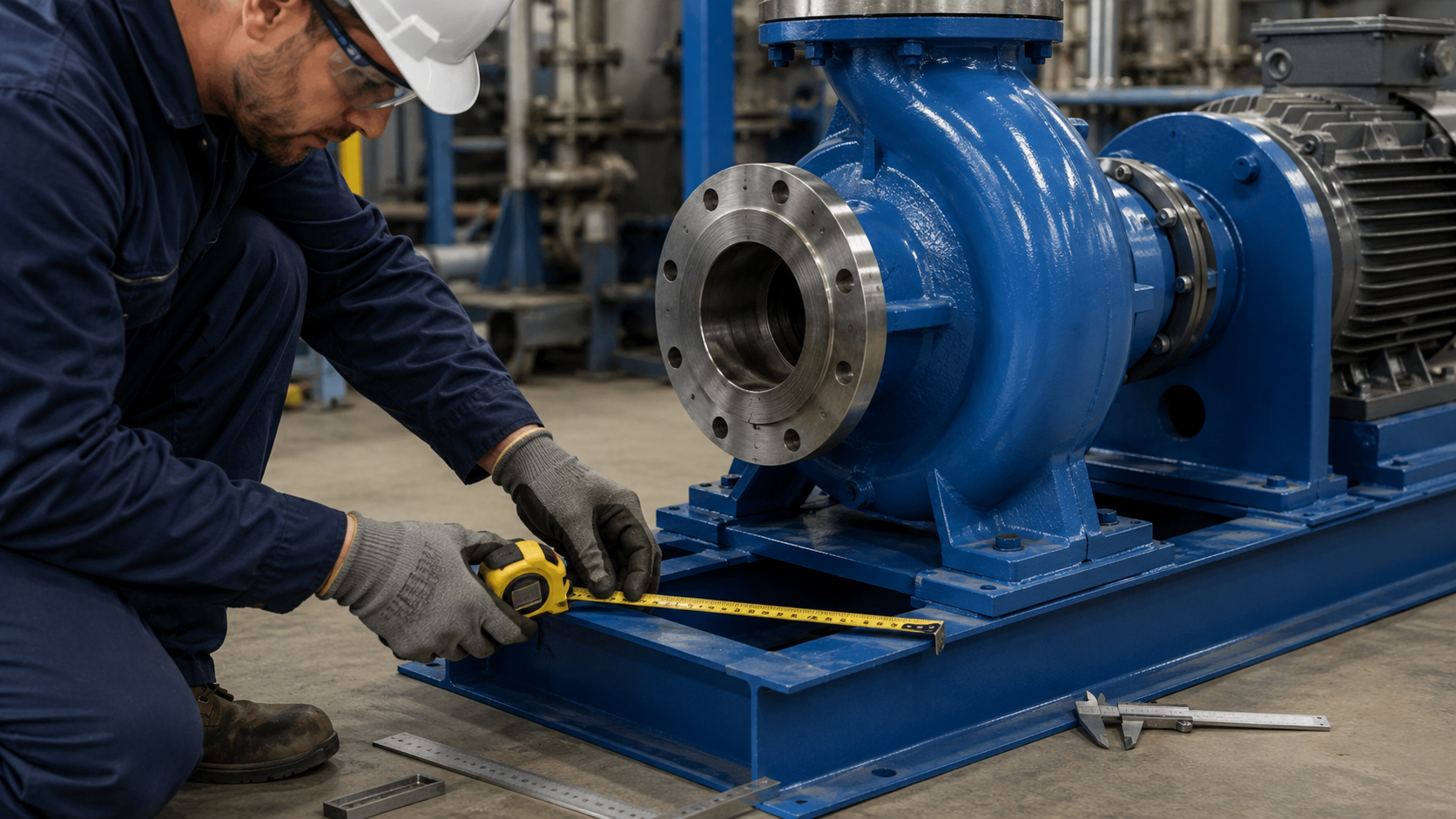

| Pump feet and baseplate | Foot dimensions and bolt pattern; mounting surface; available fastener access; baseplate condition | Shows whether the installed mounting arrangement is reusable and whether the pump can be installed and removed as planned. |
| Shaft centerline and driver | Pump and driver shaft heights; foot and shim arrangement; motor position and frame | A pipe fit does not establish shaft alignment or driver compatibility. |
| Coupling | Shaft extensions, hub bores and keyways, distance between shaft ends, spacer length and guard clearance | Confirms the coupling arrangement and maintenance clearance for the actual pump and driver. |
| Seal chamber and auxiliary piping | Chamber dimensions, gland interface, sleeve, flush ports, drains, vents and connection orientation | Determines whether the existing seal and support piping can be retained or must be reconfigured. |
Do not treat a specific coupling spacer length, flange mismatch tolerance or pipe-load limit as universal. Use the project drawing, coupling supplier data, applicable pump documentation and site requirements for the equipment under review.

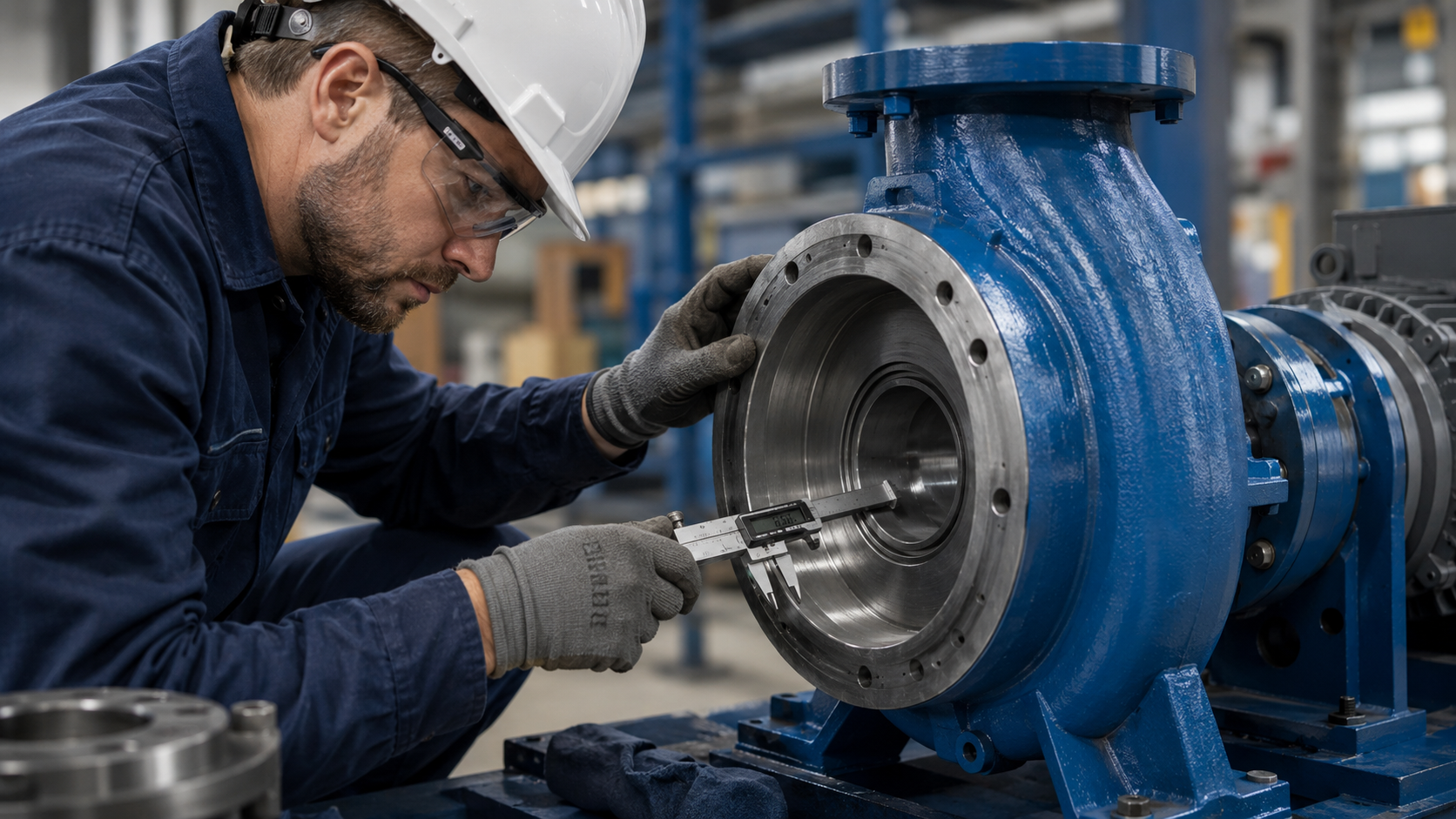

Verify the Seal Chamber and Impeller Arrangement
Do not assume the existing mechanical seal will fit because the casing connects to the piping. Confirm the seal model and setting length, shaft or sleeve diameter, gland pilot and bolt pattern, chamber bore and depth, and the location and size of flush, drain and vent connections. Confirm the intended seal support plan against the process conditions and project requirements.
Use the applicable Mark 3 adjustment procedure
Flowserve’s Mark 3 Sealed Metallic Pumps User Instructions (PUIOM000712–00 EN, section 6.6.1) describe cover-referenced setting for specified reverse-vane configurations. Other impeller and pump variants can use a different reference. Do not transfer an adjustment method or clearance value from another pump family—or from a different Mark 3 configuration. Confirm the installed impeller and pump variant, then follow the applicable Flowserve IOM and project procedure.
For the platform-specific comparison, see how Goulds 3196 and Durco Mark III impeller adjustment differs. This replacement review does not authorize assembly or publish a universal running clearance.

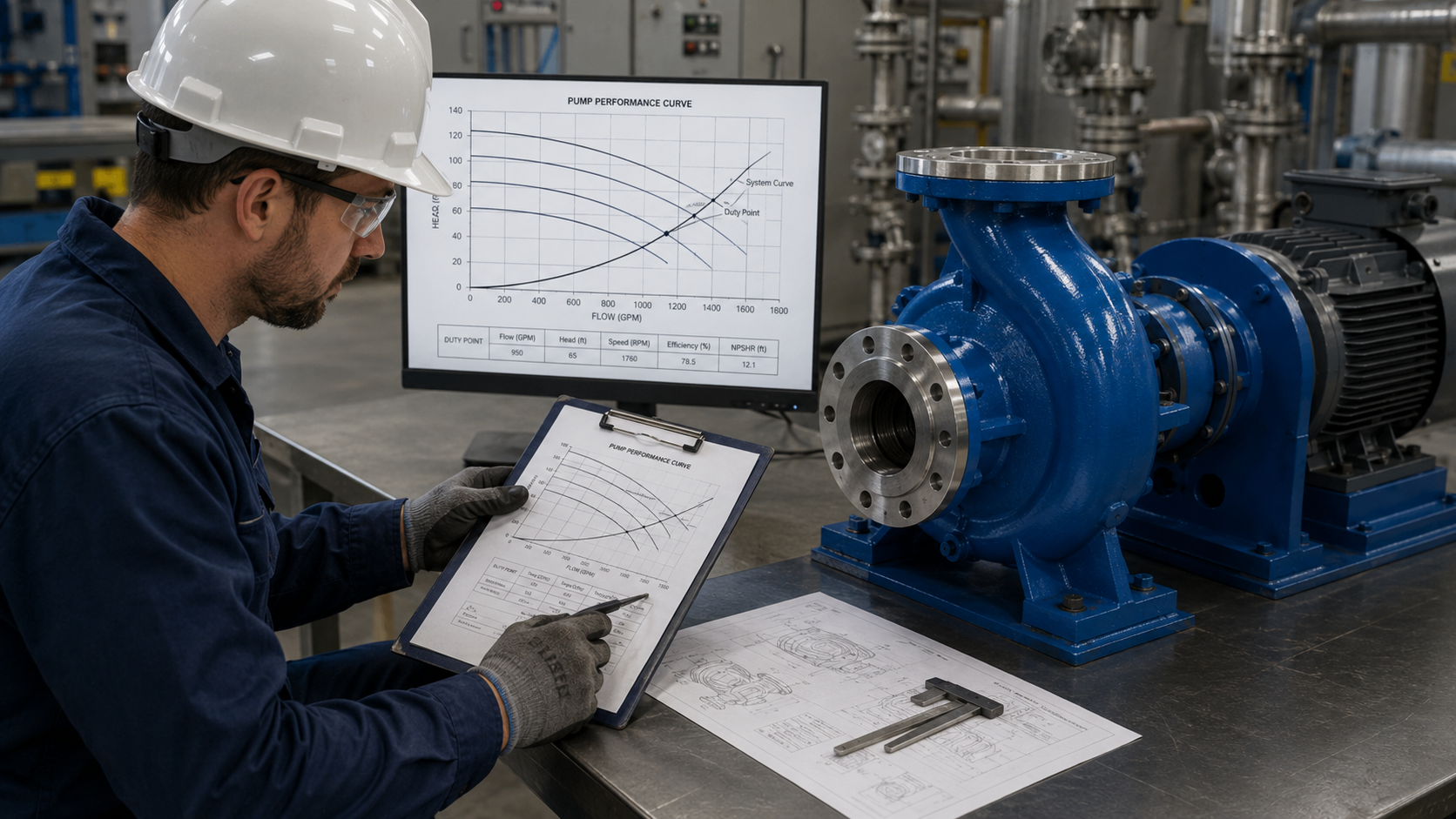

Confirm Hydraulic Duty and Materials Separately
A pump may connect to the existing piping and still be unsuitable for the process. Review the required and expected flow and head, speed, impeller diameter, liquid density and viscosity, temperature, solids, vapor pressure, NPSH available and required, absorbed power, motor rating and operating range against the proposed pump’s actual performance data.
Use a curve for the proposed model, speed and impeller configuration. The technical-resource library is the route for available curves and engineering references; the pump calculators can assist with calculations, but neither a calculator result nor matching nozzles substitutes for selecting and reviewing the actual pump curve.
Confirm wetted materials and elastomers against the complete fluid composition, concentration, temperature, contaminants, solids, cleaning conditions and corrosion history. A generic alloy label or chemical name alone is not a material approval.

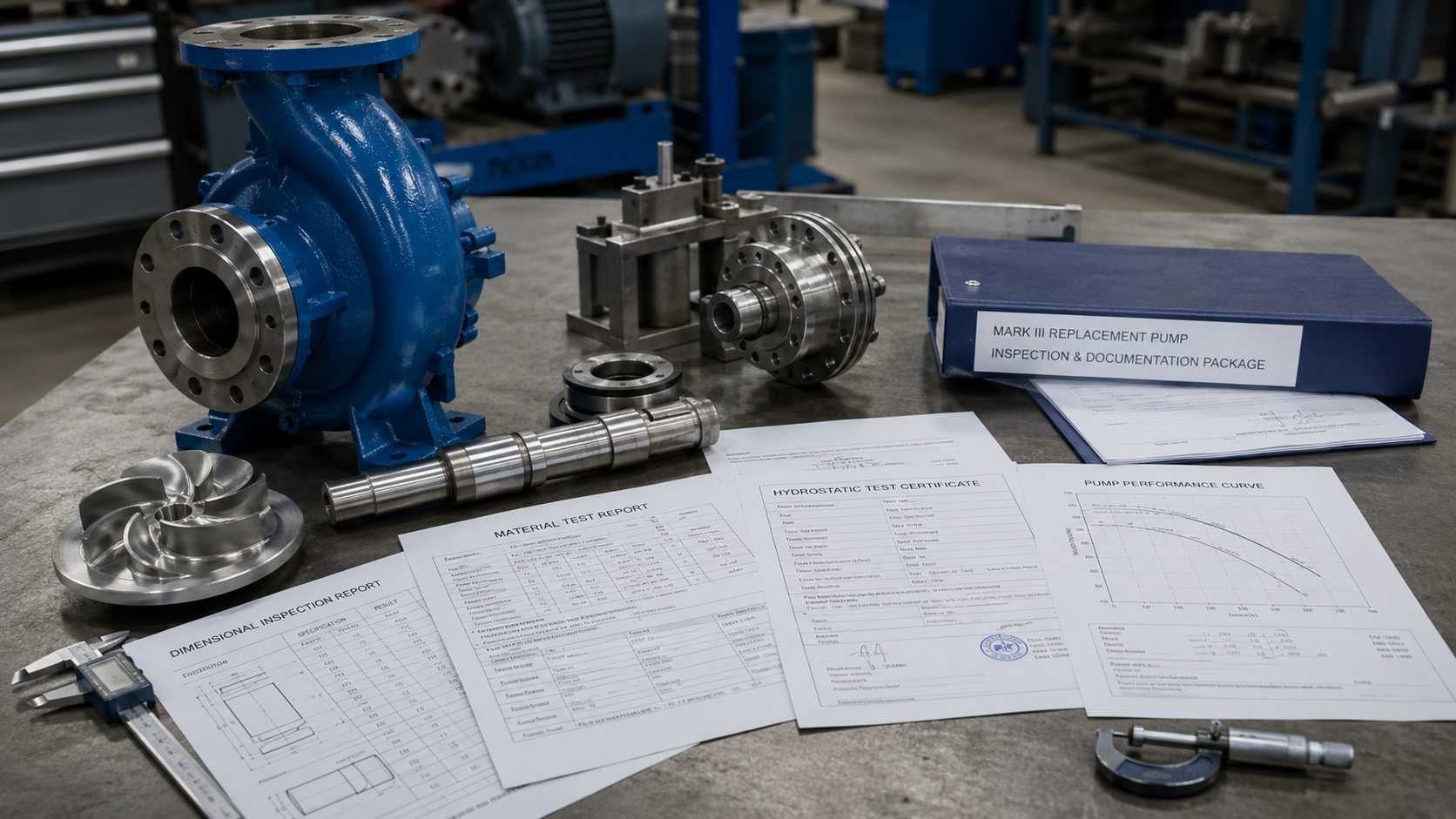

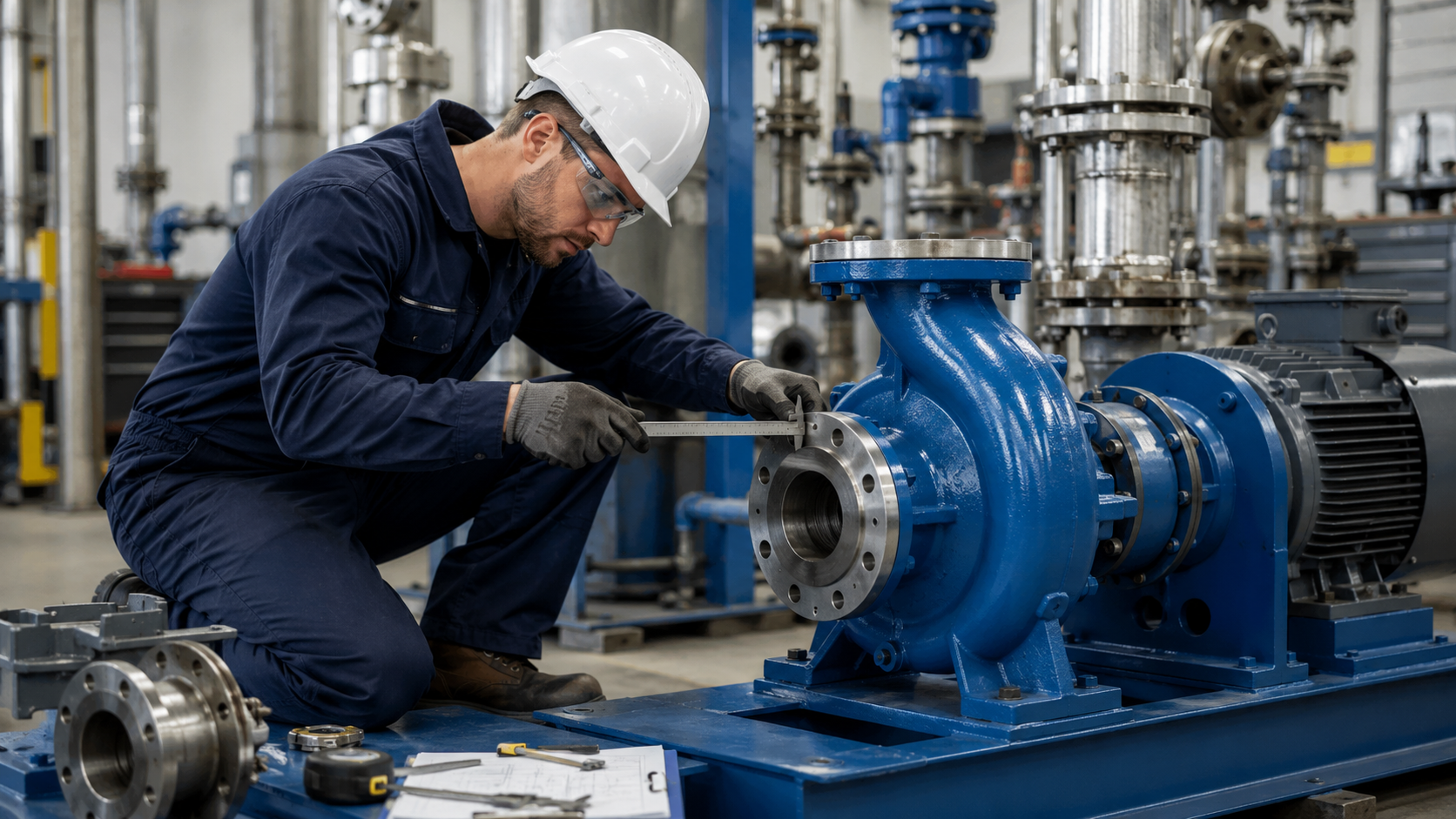

What to Confirm Before Releasing the Replacement
Before purchase or shipment, ask for a project-specific record identifying the exact replacement configuration and the evidence used. The record should make clear which interfaces were checked, which data came from the site or approved drawings, and which assumptions or open items still require confirmation.
When requesting a component rather than a complete pump, use the OEM part-number cross-reference and provide the installed model, size or group, part reference and configuration details. For a complete-pump or assembly review, see the Durco Mark III replacement route.
Frequently Asked Questions
Can every Durco Mark III replacement use the existing piping?
No. Reuse depends on the installed size and configuration, actual nozzle interfaces, mounting and site condition. Confirm these against drawings and field evidence before approving the replacement.
Does ASME B73.1 guarantee a drop-in replacement?
It defines interchangeability intent for pumps with the same standard dimension designation and specified installation relationships. It does not establish universal compatibility between every ANSI-style pump or prove hydraulic, material, seal or internal-part compatibility.
Can I reuse the existing baseplate and coupling?
Possibly. Compare the pump feet, mounting surface, shaft centerline, shaft extensions, coupling hubs and spacer arrangement against the actual driver and baseplate. Do not assume a group-level spacer length applies to every installation.
Can I reuse the existing mechanical seal?
Only after checking the seal model and setting length, sleeve, gland and seal-chamber interfaces, auxiliary ports and service conditions for the proposed configuration.
What information should I send for a fitment review?
Send the nameplate, full model and size, group and serial where available, outline drawing, installation photographs, coupling and seal details, operating duty, fluid and temperature, materials and the requested replacement scope.
Sources and Review Basis
- ASME B73.1 — Specification for Horizontal End Suction Centrifugal Pumps for Chemical Process. Consult the applicable edition and the pump’s standard dimension designation for the project.
- Flowserve Durco Mark 3 ASME (ANSI) product documentation. Use the documents linked for the applicable pump configuration.
- Flowserve Durco Mark 3 Sealed Metallic Pumps User Instructions (PUIOM000712–00 EN, formerly 71569102). See section 6.6.1 for the stated reverse-vane setting scope; verify the applicable instructions for the installed configuration.
- ASME B73 pump data sheet. Use it with the applicable standard and project documents to record operating and mechanical data.
Final fitment, materials, operating limits and acceptance criteria remain specific to the installed pump, replacement configuration and project documentation.
