Low Flow Is a Pump-Specific Operating Condition
“Low flow” does not identify one universal flow rate or one percentage of best efficiency point (BEP). It describes a duty that must be reviewed against the selected pump’s curve, operating limits and process requirements. A pump that is suitable at one low-flow duty may be unsuitable at another because the pump size, speed, impeller, liquid and system differ.
At reduced flow, some centrifugal pumps can experience internal recirculation, increased hydraulic loading, vibration or liquid heating. The likelihood and operating limits depend on the pump design and service. Use the current manufacturer curve and the applicable operating-region guidance instead of applying a generic “safe” BEP band. The performance-curve resources list available series data; confirm that any curve matches the exact pump size, speed and impeller. Hydraulic Institute guidance treats preferred and allowable operating regions as pump-specific engineering considerations.
Selection rule
Start with the required minimum, normal and maximum flow and head. Then check each point against the exact pump configuration, manufacturer operating limits, suction conditions, absorbed power and process control strategy.
Check the Curve, Stable Flow and Thermal Limit Separately
Several limits may matter at the low end of a pump’s range. They answer different questions and should not be treated as interchangeable values.
| Check | What it addresses | What to verify |
|---|---|---|
| Pump curve and operating region | The hydraulic performance and operating range for a stated size, speed and impeller. | Current manufacturer or approved replacement curve, operating-region limits and the project duty cases. |
| Minimum continuous stable flow | The manufacturer’s minimum flow limit associated with stable operation for the particular pump. | The exact pump documentation and any applicable minimum-flow protection or control requirement. |
| Minimum thermal flow | A thermal limit intended to control liquid temperature rise inside the pump. | The manufacturer’s thermal limit for the liquid and configuration; do not substitute it for the hydraulic stability limit. |
| Suction conditions | Whether the available suction conditions support the required operating point. | System-side NPSHa inputs can be organized with the NPSHa calculator; compare the result with pump-specific NPSHr at the actual duty, liquid temperature, vapor pressure and applicable project margin. |
Do not assume a universal BEP percentage
A fixed percentage band cannot replace pump-specific POR/AOR, stable-flow and thermal-flow information. The actual limits depend on the pump design, size, speed, impeller and application.
If low-flow symptoms include noise, unstable pressure, temperature rise or vibration, record the operating conditions and compare them with the correct curve before changing the impeller, throttling strategy or pump size. The centrifugal-pump cavitation and field troubleshooting guide covers related suction-side checks; cavitation and low-flow recirculation are distinct mechanisms and should be diagnosed from evidence.

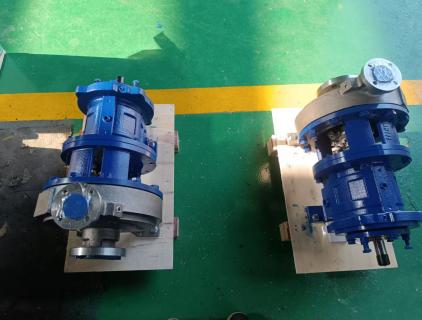

LF3196 and Mark 3 Lo-Flo Require Separate Curve Reviews
For an installed Mark 3 Lo-Flo, use the Durco Mark 3 Lo-Flo replacement pump review to organize the LF size, approved curve, seal chamber, materials and quotation scope.
Goulds LF3196 and Flowserve Mark 3 Lo-Flo are model families used as references in low-flow chemical-process applications. Their names do not establish equivalent hydraulic performance, interchangeable internals or a shared operating envelope. Compare the specific pump size, speed, impeller, duty and interfaces for the installed and proposed units.
| Review area | LF3196 | Mark 3 Lo-Flo | Decision evidence |
|---|---|---|---|
| Hydraulic selection | Use the applicable LF3196 curve for the exact size and configuration. | Use the applicable Mark 3 Lo-Flo curve for the exact size and configuration. | Duty points, speed, impeller and the manufacturer’s operating limits. |
| Design claims | Do not infer low-flow limits from the general 3196 family literature. | Flowserve describes a product-specific low-flow hydraulic design intended to reduce radial loading. | The current model-specific manufacturer literature and approved curve. |
| Replacement scope | Confirm whether the proposal covers parts, wet end, power end or complete pump. | Confirm POS/configuration, size, materials, drawings and the proposed replacement scope. | Nameplate, parts/configuration records, drawings and installation conditions. |
| Fitment | Check the actual interfaces and dimensions for the installed configuration. | Check the actual interfaces and dimensions for the installed configuration. | Approved dimensional drawings and a documented comparison. |
Flowserve’s Mark 3 Lo-Flo brochure (PSS-10-13.10, printed July 2007) describes its concentric casing and radial-vane impeller design for low-flow service and lists product-family limits. Flowserve’s current product catalog also describes the Lo-Flo design intent. Those manufacturer values are not a substitute for a size-specific curve or a guarantee for every operating point. The general Goulds 3196 i-FRAME brochure is not a substitute for LF3196-specific performance data. Keep manufacturer limits separate and never combine maxima from different models into one “low-flow pump” envelope.
For the Mark 3 Lo-Flo design description, see the Flowserve Mark 3 Lo-Flo brochure and the current Flowserve product page. For Goulds equipment, obtain the applicable LF3196 installation, operation and maintenance manual and the correct curve for the installed configuration.
For an ANSI Pumps Pro product-specific replacement route, see the LF3196 replacement product page. The product page handles commercial configuration details; the duty still requires confirmation against the appropriate engineering records.
A Similar Duty Point Does Not Prove a Drop-In Replacement
Replacement approval should distinguish hydraulic, dimensional, mechanical, material and operating compatibility. ANSI-style dimensions or a similar nameplate do not establish that every internal component, curve or installation interface is interchangeable.
Replacement verification sequence
Work from the installed configuration and service evidence toward a documented replacement scope.
Record the installed unit
Capture manufacturer, model, size, group/frame, serial or POS details and nameplate data.
Confirm the duty
Compare required flow and head with the correct speed and impeller curve.
Check fitment
Review nozzles, mounting, baseplate, coupling, shaft and seal-chamber interfaces.
Verify materials and seals
Use actual fluid conditions, wetted scope and seal arrangement.
Define the scope
Record what is included and approve the drawing and documentation package.
For Durco-specific part identification, use the Mark III replacement-parts fitment guide. Its POS references are a starting point for configuration review, not an interchangeability promise. The separate OEM part-number cross-reference can help organize part identification.
Choose Materials and Seal Support From the Actual Process
Material selection cannot be approved from a chemical name alone. Record concentration, normal and upset temperatures, contaminants, solids, pH, chlorides, velocity and relevant oxidizing or reducing conditions. Check the complete wetted scope, including casing, impeller, shaft sleeve, fasteners, gaskets, seal faces and elastomers.
Mechanical-seal piping plans also require the seal arrangement and process conditions. Plan 11 and Plan 23, for example, describe different circulation approaches; Plan 54 is an external pressurized barrier-fluid system used with a compatible dual pressurized seal arrangement. None should be assigned by a simple “clean/hot/corrosive” lookup table. The seal supplier and project requirements determine the final system design. See the manufacturer’s mechanical-seal piping-plan descriptions for plan functions and limits.
Avoid universal leakage guarantees
A seal plan or product description does not establish zero leakage for every installation. State the required emissions or leakage performance, seal arrangement, barrier/flush system, monitoring and maintenance conditions in the project specification.
If the proposed change involves a different pump category or a wider reliability project, route the next review through the existing ANSI pump selection workflow or the pump optimization project pre-screening guide. For service and parts scope, use the existing aftermarket solutions page.
How Should an LF3196 Be Maintained in Low-Flow Service?
Low-flow maintenance is most useful when it begins with a stable operating baseline. Record the actual flow, suction and discharge pressures, speed, liquid temperature, absorbed power where available, vibration, bearing temperature and seal leakage. Compare readings at like-for-like process conditions with the selected pump curve and the unit’s prior trend. A single vibration or temperature reading does not identify the failure mechanism by itself.
| Check | Record | Why it matters |
|---|---|---|
| Low-flow duty | Actual flow and head at minimum, normal and maximum operating cases; speed and control or bypass position. | Confirms whether the pump is inside the limits for the exact size, impeller and speed. Verify minimum stable flow and minimum thermal flow separately where the manufacturer provides both. |
| Bearing frame | Oil level and condition through the sight glass on oil-lubricated units; bearing temperature, unusual noise and vibration trend. | Helps identify lubrication or bearing changes before they become a failure. Apply the check that matches the installed lubrication arrangement. |
| Seal and piping | Seal-chamber or stuffing-box leakage, seal-support condition, and visible leakage from pump or piping. | A change can point to a seal, piping, temperature or operating-condition issue that needs diagnosis. |
| Performance trend | Capacity, discharge pressure and pump power using a consistent measurement basis. | Separates a real change in pump performance from a change in process demand or instrumentation. |
Use the LF3196 IOM for the installed configuration
The Goulds LF 3196 i-FRAME Installation, Operation, and Maintenance Manual separates routine maintenance, routine inspections, three-month inspections and annual inspections. Its routine inspection list includes the bearing-frame oil level and condition for applicable units, unusual noise, vibration and bearing temperature, pump and piping leakage, discharge pressure and temperature, and seal or packing leakage.
For the manual’s covered configuration, scheduled checks also include the foundation and hold-down bolts, shaft alignment, and—on oil-lubricated frames—oil change intervals. The manual calls for at least three-month or 2,000-operating-hour oil changes and more frequent changes in adverse or contaminating conditions. Its annual performance checks include capacity, pressure and power. Confirm that the manual revision and lubrication arrangement match the actual pump before applying those intervals; do not transfer them automatically to a grease-lubricated frame, a modified unit or a Mark 3 Lo-Flo pump.
Low-flow operating limit
Do not use a generic flow threshold or a fixed percentage of BEP as the LF3196 limit. Check the current curve and manufacturer instructions for the exact pump configuration. If measured flow is below the stated minimum, investigate the operating condition and required minimum-flow protection before changing the impeller or control strategy.
Before opening the pump, isolate and lock out the driver, isolate the process, and depressurize and drain the equipment using the site’s hazardous-fluid procedure. At overhaul, record impeller condition, wear-surface condition, measured clearances, bearing and seal findings, and any adjustment or replacement against the applicable OEM drawing and IOM. This creates a useful comparison for the next inspection instead of relying on a generic maintenance checklist.
Build the Decision From Traceable Pump and Process Data
A useful replacement review can begin with incomplete records, but it should identify what is known, what is assumed and what remains to verify before manufacture or purchase.
Keep calculations in the existing calculator or engineering workflow and use actual pump curves for performance. This article explains how to frame the decision; it does not calculate a duty point or substitute for a model-specific performance curve.
Low-Flow ANSI Pump FAQ
What flow rate counts as low flow for an ANSI process pump?
There is no universal flow-rate cutoff. Compare the actual operating range with the exact pump curve and manufacturer-defined operating limits for the selected size, speed and impeller.
Can Goulds LF3196 and Mark 3 Lo-Flo performance be compared in one table?
Only if each entry is tied to its own exact model, size, speed, impeller and source curve. Family maxima from different manufacturers do not form a shared operating envelope.
Does a low-flow design allow operation at any flow below BEP?
No. A low-flow design intent does not remove the need to check the pump-specific preferred/allowable operating region, minimum stable flow, minimum thermal flow and suction conditions.
Does a matching curve prove that a replacement pump will fit?
No. A curve comparison addresses hydraulic performance. Dimensional interfaces, mechanical configuration, materials, seal arrangement and the actual replacement scope still require verification.
What records are most useful before requesting a low-flow replacement review?
Send the nameplate and configuration, required flow/head range, applicable curve, liquid and suction data, seal/material requirements, installation drawings and the requested supply scope.
