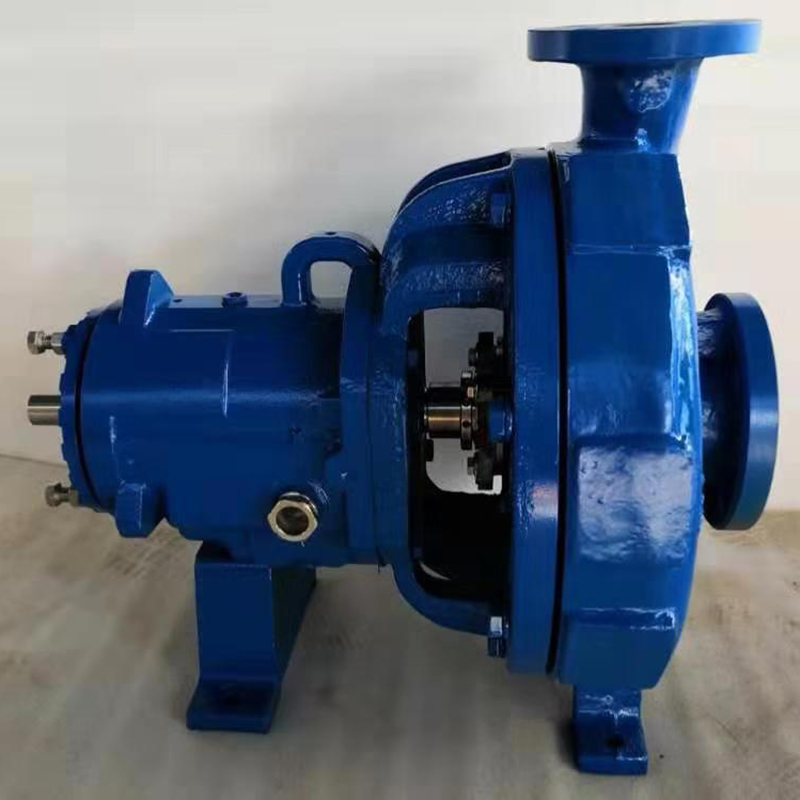

Titanium 3196 Equivalent Pump
Product Details
| Application | Chemical processing, petrochemical refining, acids transfer, caustic soda, solvents, corrosive chemical handling, high-temperature fluid transfer, pulp & paper liquors, water & wastewater treatment, mining slurries, food & beverage processing, pharmaceutical manufacturing |
| Flow Rate | Up to 7,000 GPM (1,590 m3/h) |
| Head Range | Up to 730 ft (223 m) |
| Temperature | Up to 700 degrees F (371 degrees C) |
| Materials | CF8M (316SS), CD4MCuN (Duplex), CN7M (Alloy 20), WCB (Carbon Steel), Hastelloy B, Hastelloy C-276, Nickel, Titanium Grade 2, Zirconium 702 |
| Pressure Rating | ANSI Class 300, up to 375 PSIG (2,586 kPa) |
Fully open impeller is the best design for the chemical process industries services. Ideally suited for corrosives and abrasives, handles solids and stringy fibers with ease. Allows for simple restoration of clearances when wear takes place. Back pump-out vanes reduce pressure on the shaft seal, reduce axial thrust on the bearings.
1.Application:
Chemical Processing
General Industries
Mining
Water Resources
Power Generation
Primary Metals
Pulp and Paper
Oil and Gas
2.Capacities to 7000 GPM (1590 m³ /h)
Heads to 730 feet (223 m)
Temperatures to 700° F (371° C)
Pressures to 375 PSIG (26 bar)

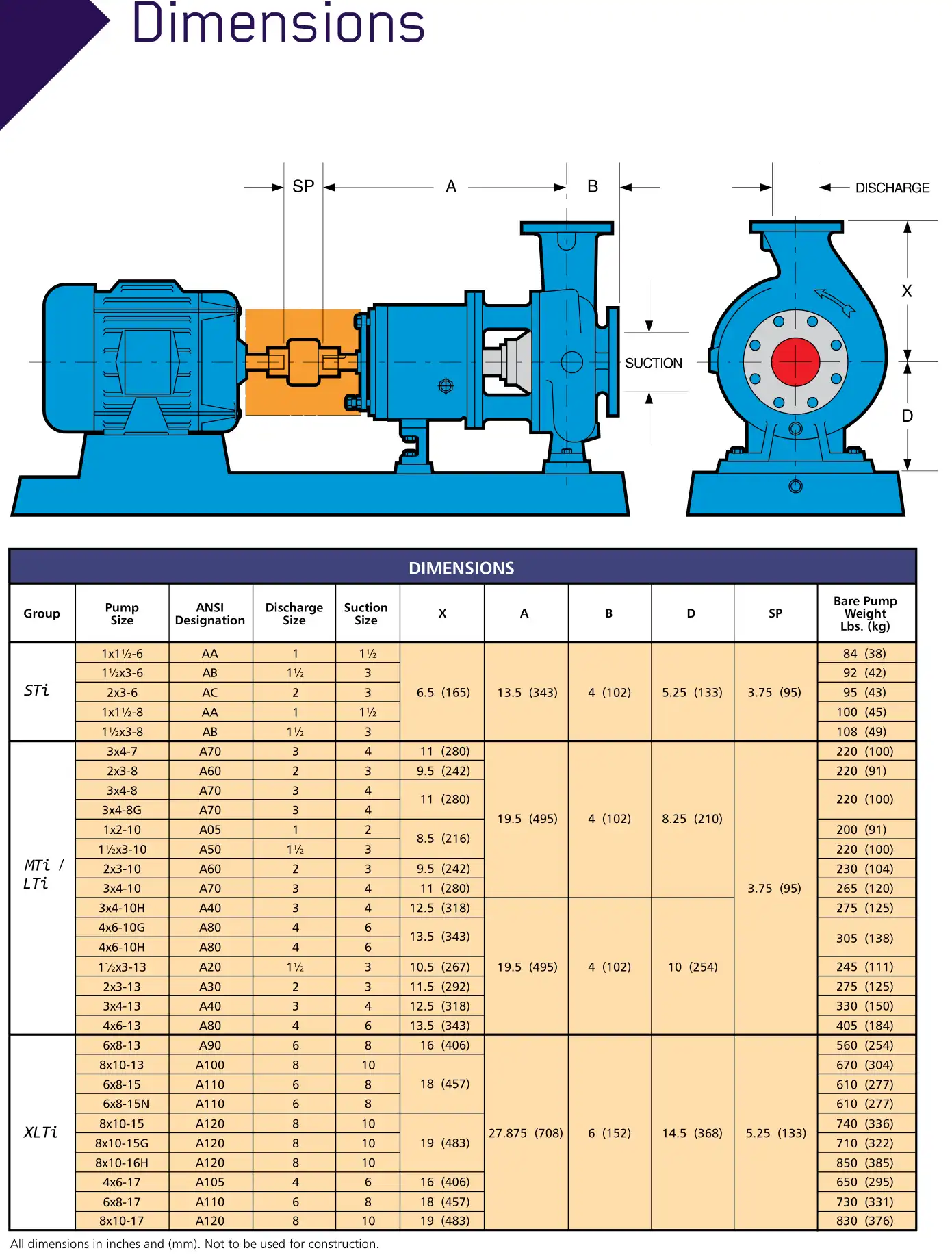

3. Available Size:6’’-15’’
4.Impeller
Designed for long-term, maintainable performance and minimum hydraulic loads for
maximum reliability.

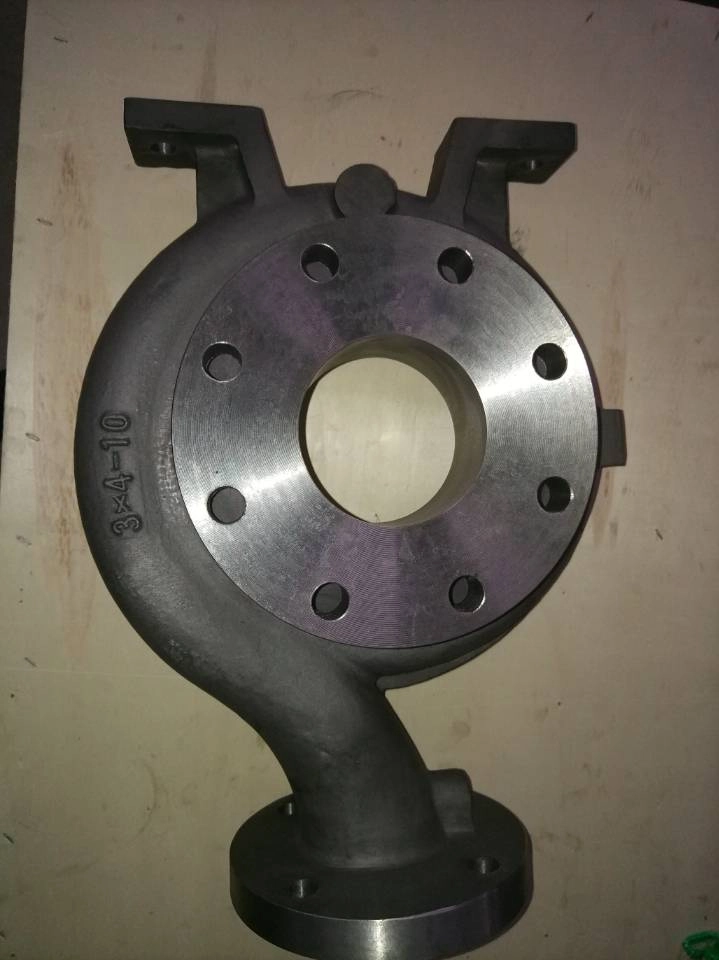

CASING
• Top centerline discharge for air handling, self-venting.
• Class 150 pumps have Class 300 wall thickness as standard.
• Back pull-out design.
• Integral feet.
Seal Chamber
Designed for favorable seal environment —proper heat dissipation and lubrication of seal faces.
The design must also be able to handle tough services: liquids containing solids, air or vapors.
Power End
Designed for optimum bearing life, effective oil cooling, and minimum shaft deflection. Onboard
condition monitoring provides early warning of potential failures, before they occur.
5.
| Part Name | Material | ||||||
| Ductile Iron | 316SS | CD4MCu | Alloy 20 | Nickel | Hastelloy C | Titanium | |
| Casing | 316SS | CD4MCu | Alloy 20 | Nickel | Hastelloy C | Titanium | |
| Impeller | 316SS | CD4MCu | Alloy 20 | Nickel | Hastelloy C | Titanium | |
| Cover | 316SS | CD4MCu | Alloy 20 | Nickel | Hastelloy C | Titanium | |
| Frame | Ductile Iron | ||||||
| Bearing Housing | Ductile Iron | ||||||
| Adaptor | Ductile Iron | ||||||
| Shaft | 316SS/4140 | ||||||
| Sleeve | 316SS | CD4MCu | Alloy 20 | Nickel | Hastelloy C | Titanium | |
6.Outstanding Features for Outstanding Performance
Extended Pump Life
Ease of Maintenance
• Back Pull-out Design
• External Impeller Adjustment
• Maximum Interchangeability
Optimum Hydraulic Performance
• Fully Open Impeller
• Full 50/60 Hz Coverage
• 29 Sizes
• Computerized Pump Selection
Safety
• ANSI B15.1 Coupling Guard
• Ductile Iron Frame Adapter
