Quick answer: A Goulds 3196 replacement should be approved only after five fitment checks: installed identity, external interfaces, power-end/mechanical interfaces, hydraulic duty, and materials/seals/documentation. Dimensional interchangeability should be confirmed against the exact pump size, frame, retained interfaces, and drawing set before order release. A model name or flange match alone is not proof of a direct replacement.
Step 1 — Identify the Installed Pump
Start with the nameplate, not a catalog family name. Record the complete 3196 model designation, size, frame or power-end arrangement, serial number, impeller diameter or trim, rotation, speed, motor, seal chamber, material class, and any visible modifications. Photograph the nameplate, pump assembly, base, coupling, seal area, nozzles, and piping.
Also collect the service duty: minimum/normal/maximum flow, TDH or suction/discharge pressures, liquid temperature, SG, viscosity, vapor pressure, solids, operating hours, and actual speed. A 3196 replacement that fits the pipe but misses the duty can create a new reliability problem.

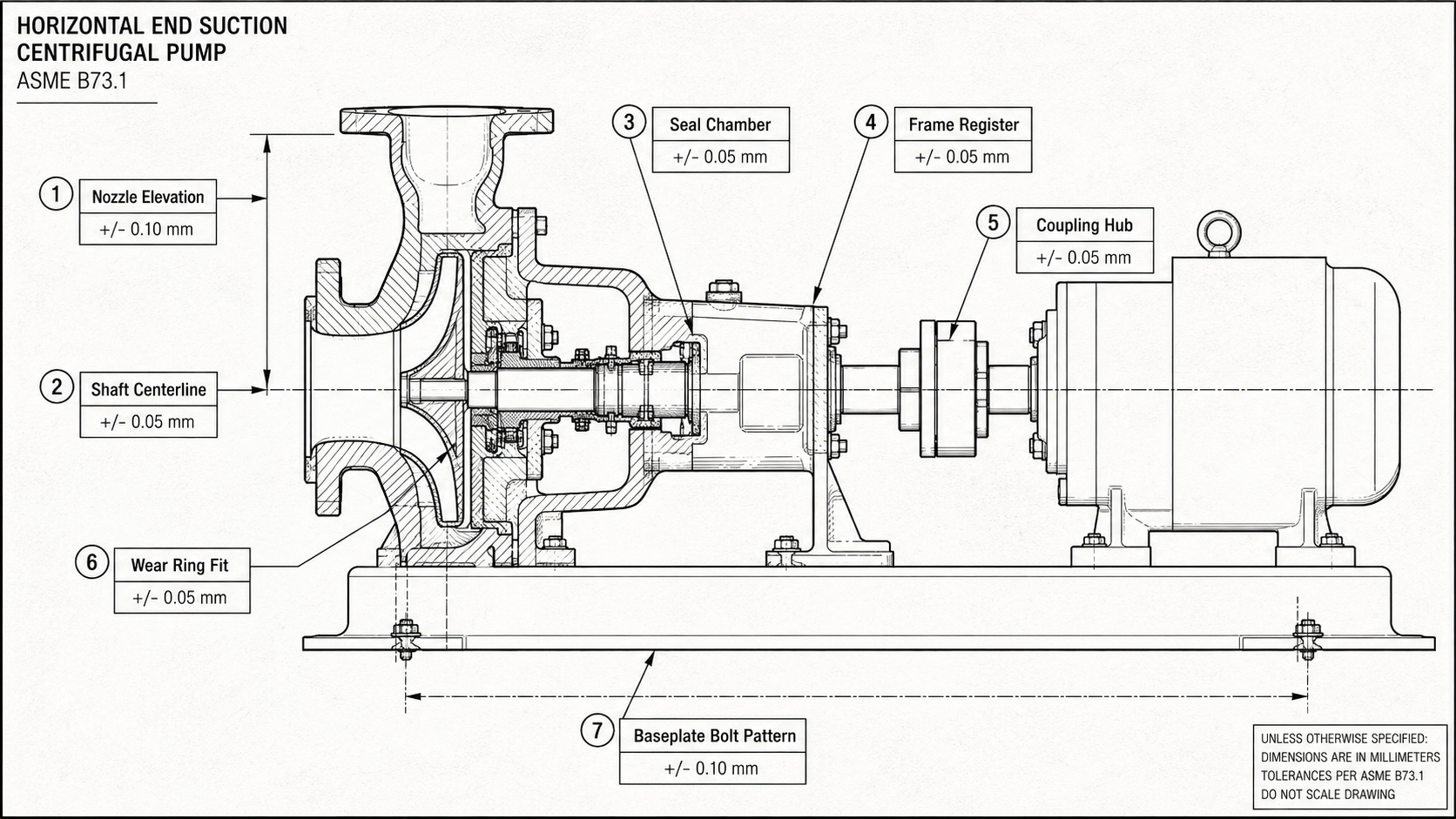

Step 2 — Verify External Interfaces
| Interface | What to compare | Why it matters |
|---|---|---|
| Suction/discharge | Size, flange rating, face, orientation, centerline and nozzle projection | Controls piping fit and loads |
| Base or mounting | Anchor pattern, footprint, shaft centerline, support and grout envelope | Determines whether the assembly can be installed without unplanned modification |
| Power end | Frame, register, shaft extension, bearings, lubrication, coupling and guard | Controls mechanical fit and maintenance strategy |
| Seal chamber | Bore, depth, faces, gland/stationary arrangement and flush connections | Controls seal fit and leakage management |
| Driver | Motor frame, power, speed, voltage, area classification and coupling | Prevents overload and driver-interface mismatch |
Use an approved GA drawing with marked measured dimensions. If piping or foundation changes are unacceptable, state that constraint in the RFQ and require a supplier fitment review before order release.
Step 3 — Verify Power-End and Mechanical Interfaces
Decide whether the requirement is a complete pump, wet end, power end, or individual part. A wet-end change may rely on the retained shaft and bearing frame; a power-end change may affect coupling, seal, alignment, and lubrication. Record what will be retained and what will be supplied.
Review shaft diameter and extension, impeller attachment, key and nut details, bearing arrangement, axial/radial load basis, seal chamber, coupling, base, and motor. The OEM part-number cross-reference process is useful when the installed documentation is incomplete.
Step 4 — Verify Hydraulic Performance
Match the replacement at the required flow and TDH, not just at a nominal catalog point. Confirm impeller trim, speed, curve, power, efficiency, NPSHR basis, minimum continuous stable flow, shutoff behavior, and operating range. Check the liquid density, viscosity, vapor pressure, temperature, solids, and any VFD range that changes the duty.
| Hydraulic field | Buyer should provide | Supplier should confirm |
|---|---|---|
| Flow | Minimum, normal and maximum flow | Curve and recommended operating range |
| Head | TDH or suction/discharge pressure at the reference flow | Head at duty and system assumptions |
| Speed | Motor speed and VFD range | Curve basis and power at limiting condition |
| Suction | Tank level, temperature, pressure, pipe losses and vapor pressure | NPSHR basis and margin review |
| Liquid | SG, viscosity, solids, gas and temperature | Power, materials, seal and clearances at service condition |
Step 5 — Verify Materials, Seal and Documentation
Confirm casing, impeller, shaft, wear components, gaskets, fasteners, and seal materials against the actual chemistry. Material family names can hide differences between casting grades and wrought designations. Ask for the material schedule, MTRs, heat traceability, PMI or other required verification, and the seal plan.
Request the approved GA and sectional drawings, inspection and test plan, pressure test where specified, balance and vibration records where specified, nameplate information, IOM manual, spare-parts list, and deviation register. A supplier should say exactly which documents support the quoted configuration.
Complete Pump vs Wet End vs Parts
| Purchase scope | Best fit when | Risk to control |
|---|---|---|
| Complete replacement pump | Existing assembly identity or condition is uncertain | Verify full fit-up, driver, base, seal and duty |
| Wet end | Power end, shaft, bearing frame and coupling are retained and verified | Confirm interfaces, clearances, material and impeller trim |
| Power end | Wet end remains suitable but bearings/shaft support require replacement | Confirm seal chamber, coupling, shaft and alignment |
| Individual parts | Part identity and retained assembly are documented | Confirm drawing revision, material, dimensions and installation procedure |
Use the Goulds 3196 replacement category for product scope, but keep the technical fitment decision tied to the installed pump and project data.
Supplier Warning Signs
- The quotation promises “100% interchangeable” without listing size, frame, retained interfaces, drawing revision, materials, seal, or hydraulic conditions.
- The supplier provides a generic certificate instead of serial-number or heat-number traceability.
- Flange dimensions are shown but base, shaft, seal chamber, impeller, coupling, or motor interfaces are not.
- Price or lead-time savings are presented as universal, with no assumptions or scope.
- The supplier cannot state what is included: complete pump, wet end, power end, seal, motor, coupling, base, tests, or documentation.
Incoming Inspection Checklist
- Match shipping documents, nameplate, model, serial and purchase-order description.
- Check casing, impeller, shaft, power end, seal chamber, coupling, base and fasteners for damage and correct materials.
- Measure critical interfaces against the approved drawing and record actual values.
- Review MTRs, heat numbers, PMI/NDE, pressure-test, balance, performance and vibration reports where specified.
- Confirm impeller diameter, rotation, seal arrangement, motor data, coupling, lubrication and spare parts.
- Record deviations before installation; do not solve an interface discrepancy by field modification without engineering approval.
What to Send for a 3196 Replacement Quote
- Nameplate photo, complete model, serial, size, frame, impeller trim, rotation, speed, motor and coupling data.
- Minimum/normal/maximum flow, TDH, suction/discharge pressure, temperature, SG, viscosity, vapor pressure, solids, and operating hours.
- GA or foundation drawing, nozzle and base dimensions, shaft centerline, seal chamber, power-end and driver details.
- Material, seal, containment, area classification, documentation, inspection, test, spare, packaging, and delivery requirements.
- Whether you need a complete pump, wet end, power end, seal, impeller, shaft, bearing set, or another defined part scope.
Send this package through ANSI Pumps Pro contact for a technical fitment review. The quote should clearly identify verified dimensions, assumptions, exclusions, deviations, and items requiring final approval.
Frequently Asked Questions
Can any ANSI pump with the same flange size replace a Goulds 3196?
No. Verify the exact size, frame, nozzles, base, shaft, seal chamber, coupling, motor, impeller trim, materials, hydraulics, and installation envelope.
Is a wet-end-only replacement always easier?
No. It is suitable only when the retained power end, shaft, bearings, seal interface, clearances, and duty are verified.
What does dimensional interchangeability mean in a quote?
It should mean a defined set of dimensions and interfaces has been compared for the quoted configuration. It does not automatically prove hydraulic, material, seal, or operating equivalence.
What is the most useful first document?
Provide the installed nameplate and an approved or measured GA/sectional drawing, together with minimum/normal/maximum duty and liquid conditions.
